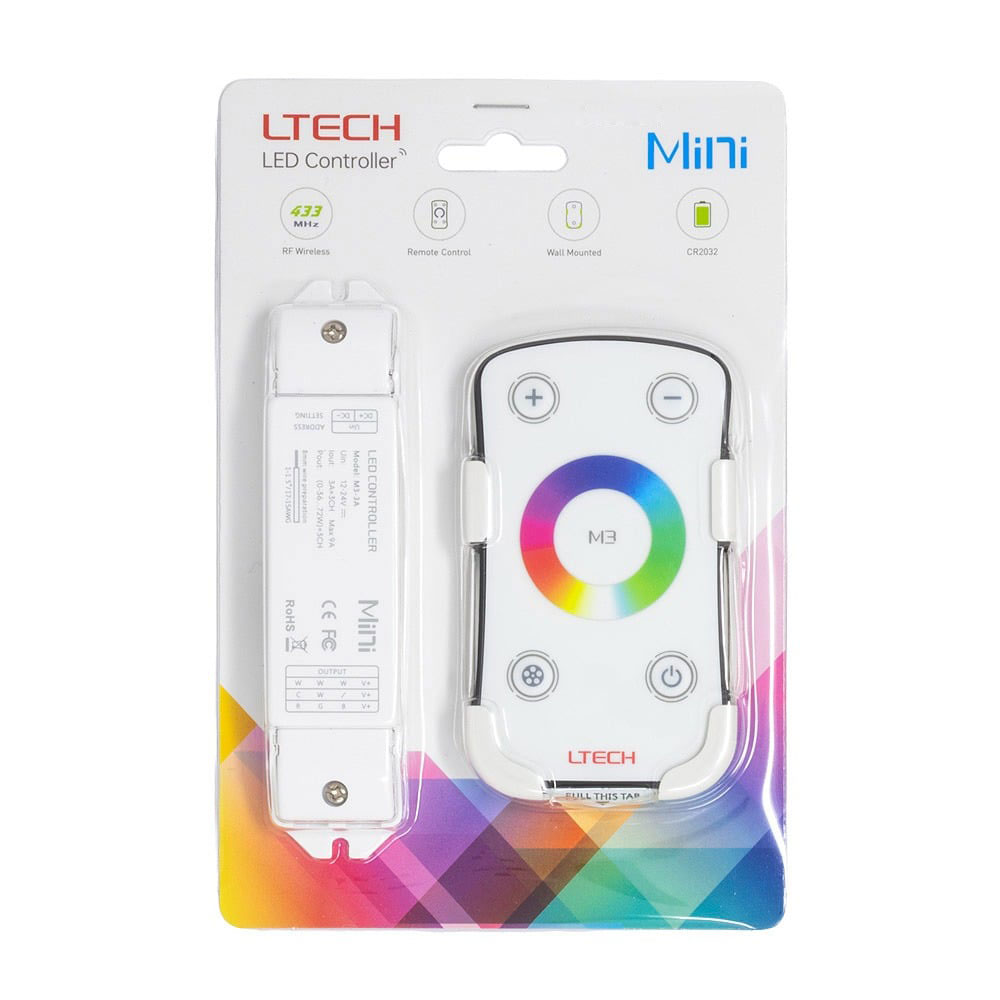

This professional-grade LTECH Mini LED Controller Kit pairs the highly compact M3-3A receiver with an advanced RF wireless remote, delivering versatile and reliable lighting control. Reflecting over 10 years of independent research and development, this kit offers outstanding performance in a unit just one-third the size of standard controllers.

Operating on a standard 12-24V DC input, the robust receiver provides a powerful 3A per channel output across three channels, supporting a maximum load of 9A (up to 216W at 24V). It is designed to effortlessly manage constant voltage LED strips, offering seamless dimming, RGB colour mixing, and colour temperature adjustments.

The included remote control utilizes a 433.92MHz RF frequency, ensuring a strong, reliable connection without requiring a direct line of sight. It is powered by a standard CR2032 3V battery and includes an intuitive touch colour circle for rapid adjustments.

Installation and synchronisation are highly efficient, featuring a dedicated ID learning button on the receiver. This allows installers to easily pair up to 10 different remote controls to a single receiver, offering exceptional flexibility for multi-user environments.

A comprehensive array of pre-programmed features can be easily accessed via the remote, including:

Static colour selection (Red, Green, Blue, Yellow, Purple, Cyan, White)
RGB and 7-colour skipping modes
Full-colour smooth transition effects
Adjustable speed and brightness parameters
Customisable loop play functionality
Please note that the receiver should be paired with a suitable 12-24V DC constant voltage LED power supply. Simply connect the driver and your LED lighting to the clearly marked terminal blocks to achieve professional, flicker-free illumination.

Specifications
Ultra-compact receiver design (one-third the size of conventional controllers)
Versatile dimming, RGB, and colour temperature control
12-24V DC input voltage with a maximum 9A output (3A per channel)
RF wireless M3 remote control operating at 433.92MHz
Intuitive touch colour circle and pre-programmed dynamic modes
Ability to sync up to 10 remotes to a single receiver
Dedicated ID learning button for easy pairing and unpairing
5 Year Warranty
