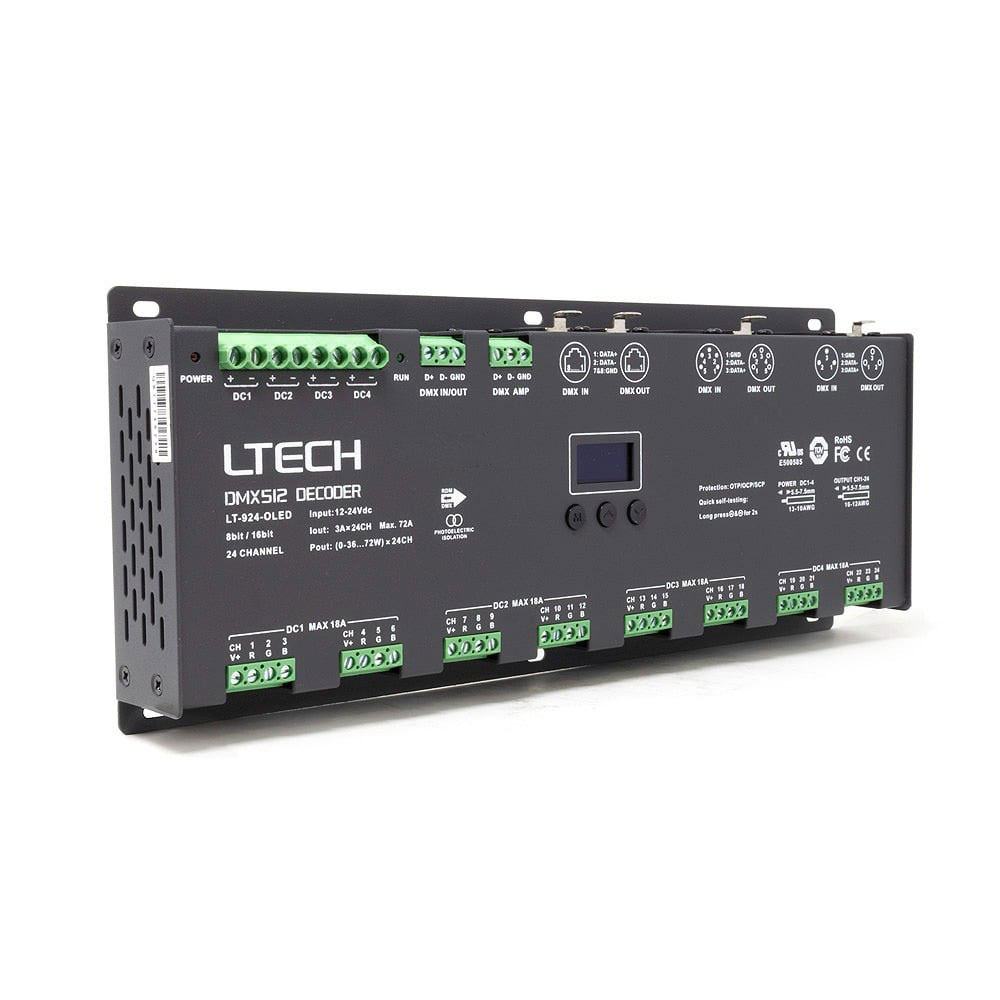

The LT-924-OLED 24-Channel Constant Voltage DMX512 decoder is an installation-grade solution built for high-power, multi-channel lighting projects. It is perfectly optimized for sophisticated commercial and architectural environments, such as large-scale venue lighting, hotel installations, complex restaurant displays, and professional retail environments requiring synchronized lighting effects.

As a flagship product in the LTECH professional series, the LT-924-OLED combines massive output capacity with advanced digital precision. The integrated RDM (Remote Device Management) protocol allows for seamless bi-directional communication, enabling installers to remotely detect devices, configure DMX addresses, and monitor operating parameters via an RDM master console or Wi-Fi editor.

This decoder supports high-definition dimming with selectable 8-bit or 16-bit resolution, ensuring perfectly smooth light transitions and eliminating flicker. This level of control is essential for environments where quality of light is non-negotiable, such as film sets, television production studios, and high-end theatrical stages.

Connectivity is exceptionally versatile, with four distinct input options 3-pin XLR, 5-pin XLR, RJ45, and green terminal blocks, all featuring photoelectric isolation. This isolation maximizes signal integrity and noise immunity, ensuring stable operation even across very long cable runs. The included signal amplifier function further simplifies complex, daisy-chained wiring topologies.

Key operational parameters are managed through the built-in OLED screen and tactile menu buttons:

Precise DMX address configuration (1-512)
Selectable operating modes (DIM, CT, or RGB)
PWM output resolution setting (8-bit or 16-bit)
Advanced dimming curve adjustments (Standard, Linear, LOG, or custom 0.1-9.9 Gamma)
Power-on state management
Quick system self-testing and firmware upgrade capabilities
The LT-924-OLED requires a robust 12-24V DC power supply to support its 24-channel output array. Connecting this unit to a master DMX controller allows for absolute control over intricate lighting configurations using industry-standard DMX protocols.

Specifications
24 channel constant voltage DMX/RDM decoder
12-24V DC input voltage
Maximum 72A total output current (3A per channel)
Intuitive OLED display with tactile touch button operation
RDM protocol for remote parameter browsing and firmware upgrades
Three operating modes available: DIM, CT, and RGB
16-bit or 8-bit output resolution configurations
Quadruple DMX interface options: 3-pin XLR, 5-pin XLR, RJ45, and green terminal blocks
Integrated signal amplifier function on green terminals
Comprehensive short circuit, over-current, and overheat protection with auto-recovery
5 Year Warranty
