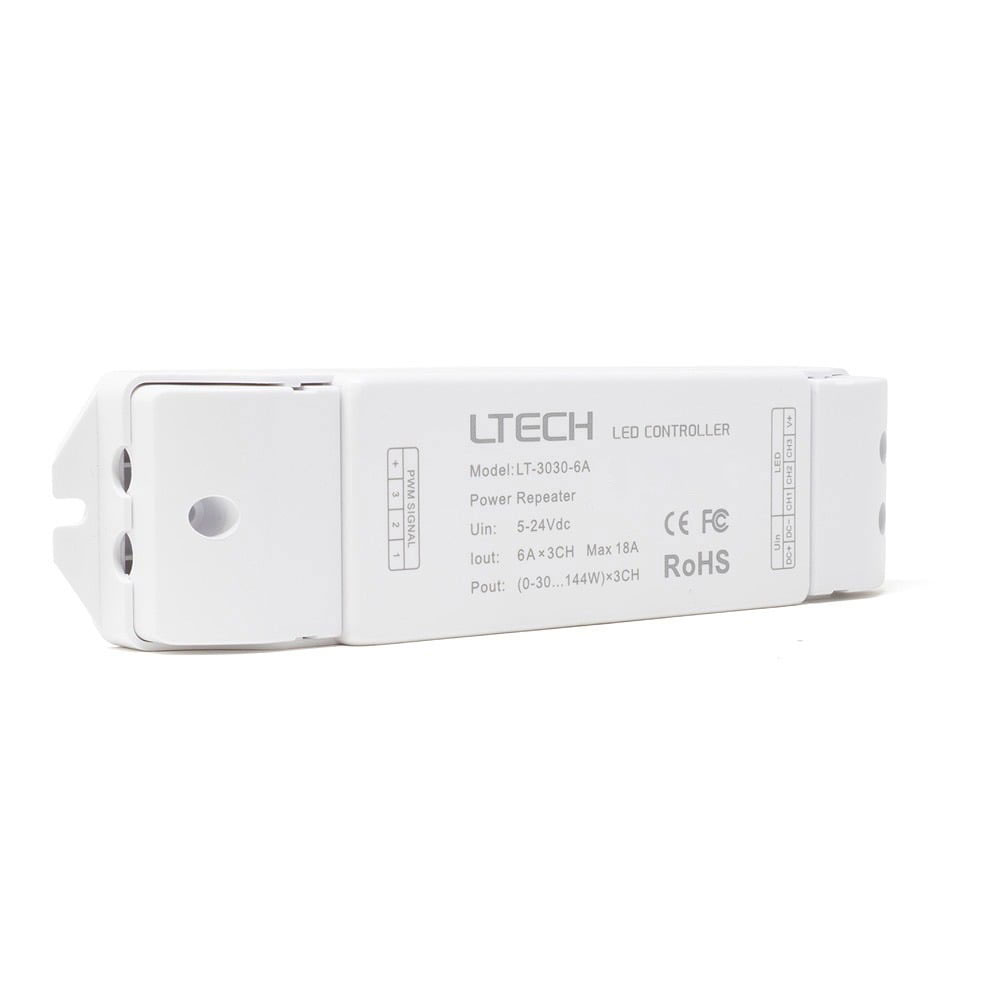

This LTECH LT 3030 6A CV Power Repeater is designed for professional constant voltage LED lighting installations where additional power output is required from an existing PWM controller. By adding a power repeater, the control quantity of LED lights can be increased, making it suitable for larger lighting projects using LED strip and other compatible constant voltage lighting products.

The LT 3030 6A accepts PWM signal input from 200Hz to 2000Hz and supports a wide 5 to 24V DC input voltage range. It provides 6A output per channel across 3 channels, with a maximum current load of 18A and a maximum power load of 432W when used with 24V lighting.

This power repeater is suitable for use with 12V and 24V LED lamp connections. When used with 12V lighting, it supports loads up to 216W. When used with 24V lighting, it supports loads up to 432W.

The signal input and output of the LED power repeater include security protection with 5KV photoelectric isolation, helping to provide stable and reliable operation in professional installations.

Key specification details include:

Input signal: PWM 200Hz to 2000Hz
Input voltage: 5 to 24V DC
Maximum current load: 6A × 3CH, max 18A
Maximum power load: 0 to 144W × 3CH, max 432W
Working temperature: minus 30°C to 55°C
Dimensions: L175 × W44 × H30mm
Package size: L178 × W48 × H33mm
Gross weight: 135g
Please note that this unit requires a suitable 5 to 24V DC LED power supply. Connect the repeater to a compatible PWM controller, LED power supply and constant voltage LED lighting load for power expansion within larger LED lighting systems.

Specifications
Professional constant voltage LED power repeater
Suitable for expanding power output from compatible PWM controllers
Accepts PWM signal input from 200Hz to 2000Hz
5 to 24V DC input voltage range
6A per channel output across 3 channels
Maximum current load of 18A
Maximum power load of 432W at 24V
Allows additional LED loads to be controlled from the same signal
Signal input and output protected by 5KV photoelectric isolation
Suitable for 12V and 24V constant voltage LED lighting installations
5 Year Warranty
