This five-channel 700mA Constant Current DMX512 decoder is an installation-grade product suitable for professional use in commercial installations. An example of suitable installations would be places such as hotels, restaurants and retail outlets.

This DMX Decoder is available from our Sunricher range of professional lighting control products.

Featuring many professional features, this 5 Channel DMX Decoder has control high-quality control functions such as RDM & Master Mode. The Decoder also features an adjustable PWM frequency (up to 35kHz) and an adjustable BIT rate of 8 or 16-bit. The product is particularly suitable for TV and Film Studios.

The RDM bi-direction communication function enables an RDM-equipped DMX master console to detect and display decoder information.

A variety of features that can be set via the digital display and menu button are:

DMX address setting
Output channel quantity
PWM output resolution (8 or 16-bit)
PWM output frequency
GAMMA dimming curve value
DMX decoding mode
The DMX signal input and output ports for this decoder include 5-pin XLR, RJ45 and hard-wired DMX input and output connections.

Please note that this unit also has master control features for basic operation without a DMX Control Desk, connect to an appropriate LED driver and DMX master source to control your LED strips & other lighting using DMX protocols.

Specifications

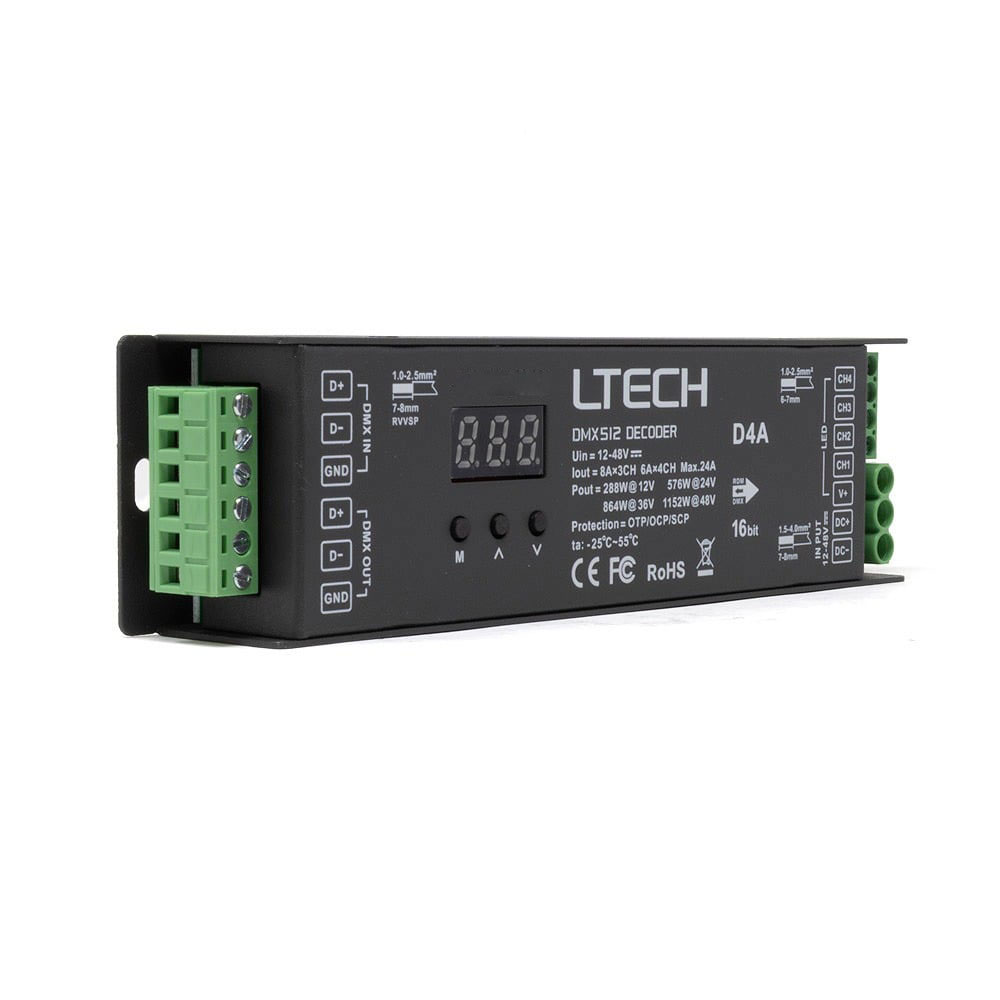

Constant voltage 4-channel DMX/RDM decoder
12-48V DC input voltage
Maximum 24A output current (8A x 3CH or 6A x 4CH)
RDM protocol for remote parameter browsing and address changes
Adjustable PWM frequency from 300Hz up to 18000Hz
16-bit or 8-bit output resolution optional
Linear and logarithmic dimming curve options
Switchable between DMX mode and customised mode
Green terminal block DMX interfaces
5 Year Warranty
