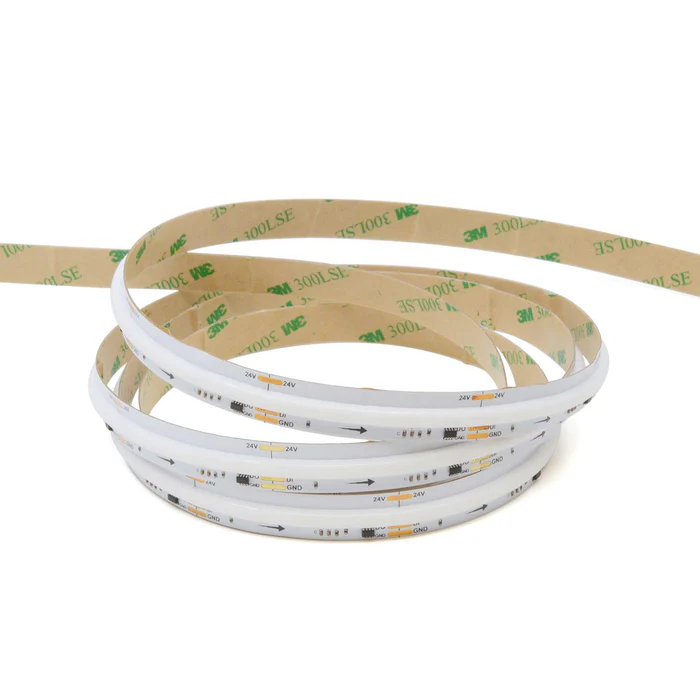

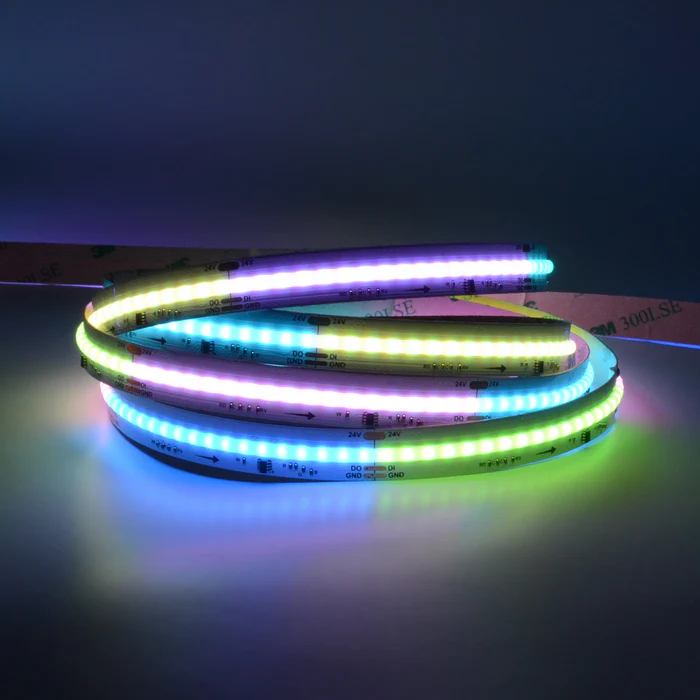

Bring dynamic, high-resolution lighting to your project with the UCS2904 SPI RGBWW COB LED Strip Light (24V). With 12 addressable pixels per metre and an ultra-dense 864 LEDs/m, this 5-metre strip delivers vibrant colour transitions, smooth animations, and flawless, dot-free illumination.

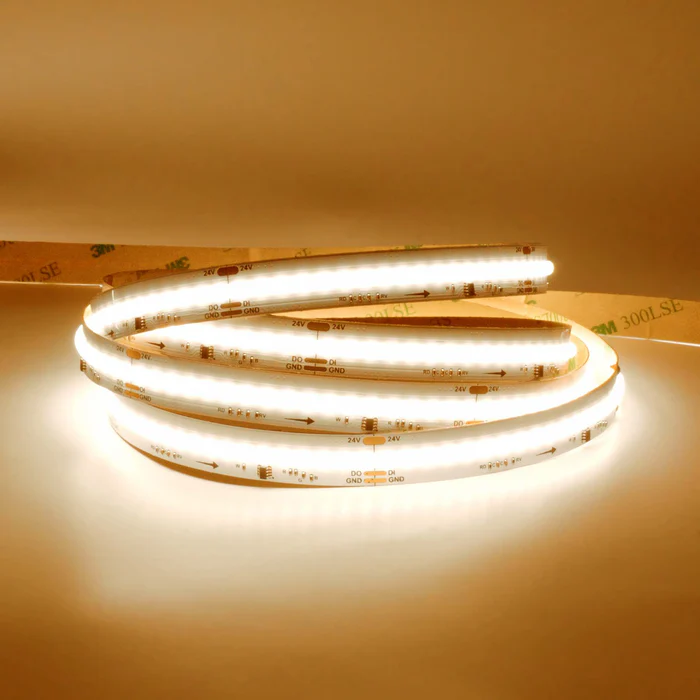

The advanced RGB+Warm White (RGBWW) COB chip features a dedicated warm white channel alongside rich RGB colours. This offers both decorative lighting effects and comfortable ambient white light in a single, seamless strip – perfect for cosy interiors, hospitality spaces, and premium decorative lighting.

Driven by the UCS2904 IC, each pixel section is individually addressable, supporting effects such as chasing, fading, flashing, and complex motion animations. With 256 levels of greyscale, it ensures smooth dimming and subtle transitions for professional-grade control.

Compatible with a wide range of SPI controllers and remotes, this strip offers instant preset effects or full customisation for tailored lighting experiences.

Features:
RGB + Warm White COB Technology – Combines vibrant colours with a dedicated warm white channel for both decorative and ambient lighting in one seamless strip.
Ultra-Dense 864 LEDs/m – Provides smooth, dot-free illumination with exceptional brightness and uniformity across the full 5-metre length.
Individually Addressable Pixels – 12 pixels per metre controlled by the UCS2904 IC, enabling dynamic effects such as chasing, fading, and custom animations.
Professional-Grade Greyscale Control – 256 levels of brightness per channel for subtle dimming, smooth transitions, and precise lighting control.
Versatile SPI Compatibility – Works with the full range of SPI controllers and remotes, supporting quick presets and advanced custom programming.

Specification
Input Voltage: DC24V
IC Type: UCS2904
No. of Pixels: 12px/M
No. of Lights: 4320 LEDs (864 LEDs/M)
Wattage: 20W/M
IP Rating: IP20 (Non-Waterproof)
Strip Length: 5M
Strip Width: 12mm
Strip Height: 2mm
Cuttable Length: Every 8.3cm (3.3in)
CRI: ≥90
Warranty: 2 Years

Attention:
This LED strip operates on DC 24V. A compatible 24V LED driver (NOT INCLUDED) is required for safe and proper operation.
It also requires a compatible 24V SPI controller (NOT INCLUDED) to operate and control individual colours and effects.
Please test the strip before installation or modifications. Once cut or altered, the strip cannot be returned.
