High Powered LEDs (COB)

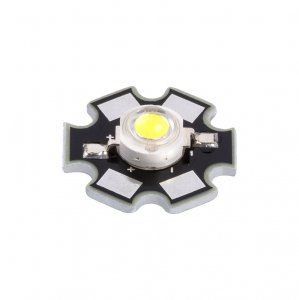

Vollong 5 Watt High Power White LEDs. LED package mounted on 20mm diameter Star PCB heat sinks. Up to 350 lumen with wide 125 degree viewing angle. Price for each. Specifications Continuous Forward Current: 800mA Forward Voltage: 7.0V LED Package: 14.5 mm x 7.5 mm Maximum Forward Voltage: 7.5V Maximum LED Junction Temperature: 120 Operating Temperature: -35~+50 °C (-31~+122 °F) Peak Forward Current: 2000mA Power Dissipation: 5W Reverse Current: 30 Reverse Voltage: 10V Storage...

Vollong 3 Watt High Power White LEDs. LED package mounted on 20mm diameter Star PCB heatsinks. Up to 200 lumen with wide 120 degree viewing angle. Specifications Continuous Forward Current: 750 mA Forward Voltage: 3.6V LED Package: 14.5 mm x 7.5 mm Maximum Forward Voltage: 4V Maximum LED Junction Temperature: 120 Operating Temperature: -35~+50 °C (-31~+122 °F) Peak Forward Current: 1000mA Power Dissipation: 3W Reverse Current: 10µA Reverse Voltage: 5V Storage Temperature:...

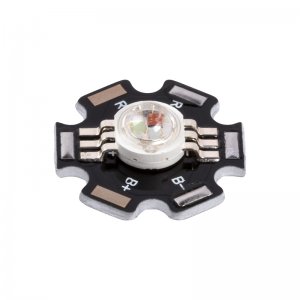

Vollong 3 Watt high power RGB LED. 465nm/525nm/625nm wavelength, 43,000mcd. with 120 degree viewing angle. See spectral graph for actual wavelength measurement. Specifications Continuous Forward Current: 350 mA, 400 mA Forward Voltage: 2.5V, 3.4V LED Color: RGB LED Package: 14.5 mm x 7.5 mm Lumen: 20 Lumen, 55 Lumen, 60 Lumen Maximum Forward Voltage: 2.8V, 3.8V Maximum LED Junction Temperature: 120 Millicandela: 43000mcd Operating Temperature: -35~+50 °C (-31~+122 °F) Peak Forward...

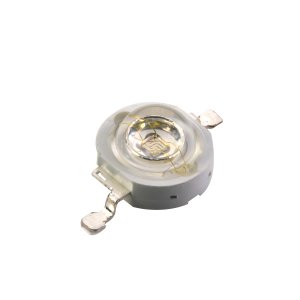

This 1 Watt Surface Mount LED features 130mW radiant power, 394nm wavelength, and a wide 130 degree viewing angle. Specifications Continuous Forward Current (IF): 350 mA Current Draw: 0.35A (350mA) Forward Voltage: 3.4V LED Color: UV (Blacklight) LED Package: 14.5 mm x 7.5 mm Millicandela:  N/A Operating Temperature: -30~+100 °C (-22~+212 °F) Peak Forward Current (IFM):  500mA Radiant Power: 130mW Storage Temperature (Tstg): -40~+100 °C Total Power Consumption: 4.2 Watts...
