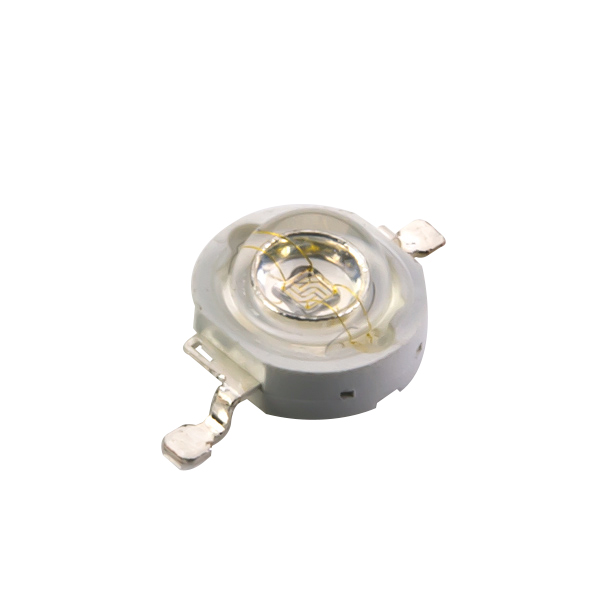

1 Watt Ultraviolet SMD LED - 394nm UV Surface Mount LED
SKU:
UV-1W-394
This 1 Watt Surface Mount LED features 130mW radiant power, 394nm wavelength, and a wide 130 degree viewing angle.
Specifications
Continuous Forward Current (IF): 350 mA
Current Draw: 0.35A (350mA)
Forward Voltage: 3.4V
LED Color: UV (Blacklight)
LED Package: 14.5 mm x 7.5 mm
Millicandela: N/A
Operating Temperature: -30~+100 °C (-22~+212 °F)
Peak Forward Current (IFM): 500mA
Radiant Power: 130mW
Storage Temperature (Tstg): -40~+100 °C
Total Power Consumption: 4.2 Watts
Viewing Angle: 130 degree
Wavelength: 394 nm
Wavelength: 394nm
Package Weight: 0.07oz (0kg)
Package Dimensions: 0.83" (2cm) x 0.48" (1cm) x 0.48" (1cm)
All specifications are subject to change without notice.
