Vollong 3W White High Power LEDs
SKU:
VL-H01xWx3

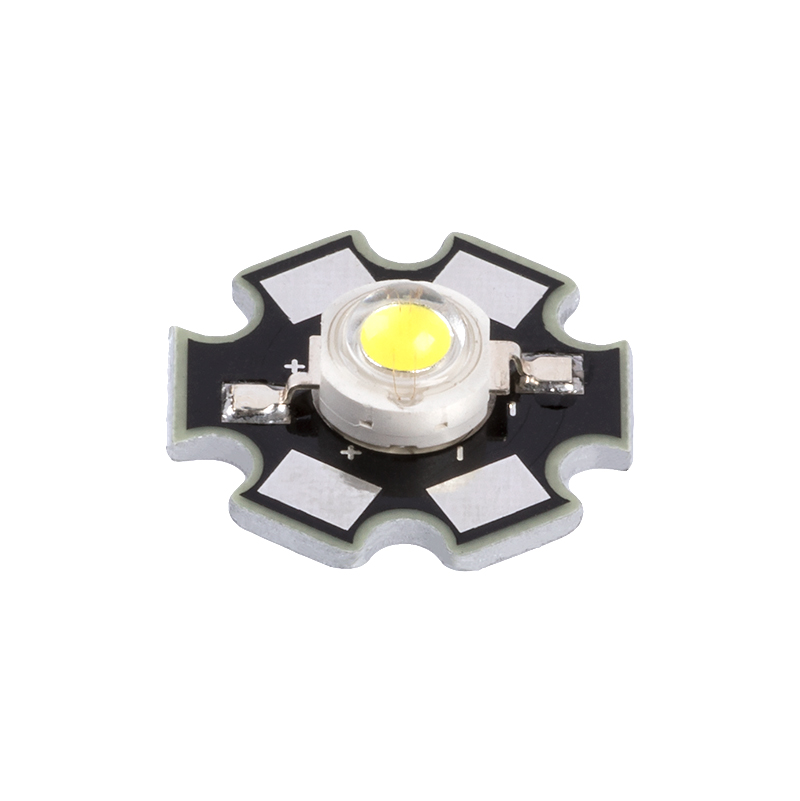

Vollong 3 Watt High Power White LEDs. LED package mounted on 20mm diameter Star PCB heatsinks. Up to 200 lumen with wide 120 degree viewing angle.
Specifications
Continuous Forward Current: 750 mA
Forward Voltage: 3.6V
LED Package: 14.5 mm x 7.5 mm
Maximum Forward Voltage: 4V
Maximum LED Junction Temperature: 120
Operating Temperature: -35~+50 °C (-31~+122 °F)
Peak Forward Current: 1000mA
Power Dissipation: 3W
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -40~+100 °C
Thermal Resistance: 12 °C/W
Total Power Consumption: 3 Watts
Viewing Angle: 120 degree
Package Weight: 0.07oz (0kg)
Package Dimensions: 0.83" (2cm) x 0.48" (1cm) x 0.48" (1cm)
All specifications are subject to change without notice.
