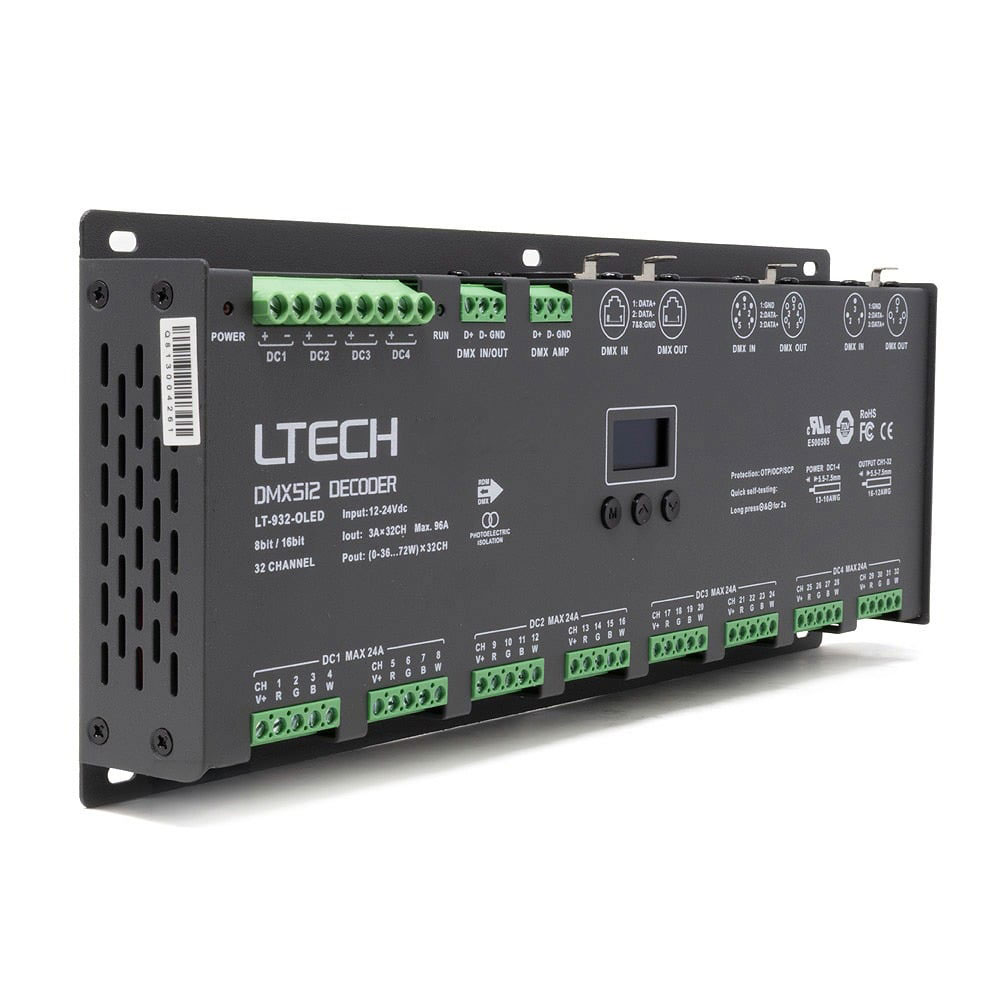

The LT-932-OLED 32-Channel Constant Voltage DMX512 decoder is an installation-grade power solution built for high-demand, multi-channel lighting environments. It is specifically optimized for sophisticated commercial settings, including grand-scale venue architecture, hotel systems, large-scale restaurant displays, and professional retail lighting environments where precise control over numerous independent channels is required.

As the top-tier solution in the LTECH professional lighting series, the LT-932-OLED offers exceptional output power coupled with advanced digital precision. The integrated RDM protocol allows for efficient bi-directional communication, providing installers the ability to remotely detect devices, configure DMX addresses, and monitor operating parameters via an RDM master console or Wi-Fi editor without requiring direct access to the unit.

This decoder provides high-definition dimming performance with user-selectable 8-bit or 16-bit resolution, ensuring ultra-smooth light transitions that remain free of flicker. This quality is essential for professional environments, particularly in film and television production where lighting stability is critical.

Connectivity is highly adaptable, offering four distinct input methods 3-pin XLR, 5-pin XLR, RJ45, and green terminal blocks all equipped with photoelectric isolation. This design maximizes signal reliability and protects against electrical interference over very long cable runs. The green terminal blocks also feature a built-in signal amplifier function, which greatly simplifies complex, daisy-chained wiring configurations.

All operational parameters are easily managed via the integrated OLED screen and intuitive touch button interface:

Accurate DMX address configuration (1-512)
Selectable PWM output frequency (Std, High, Mid, Low)
Adjustable operating modes (DIM, CT, RGB, RGBW)
PWM resolution setting (8-bit or 16-bit)
Advanced dimming curve adjustments (Standard, Linear, LOG, or custom 0.1-9.9 Gamma)
Configurable power-on state and system self-testing functionality
The LT-932-OLED requires a compatible 12-24V DC power supply to support its 32-channel output density. By linking this decoder to a primary DMX controller, you gain professional, flawless control over extensive, constant voltage LED strip arrays and complex lighting matrices.

Specifications
32 channel constant voltage DMX/RDM decoder
12-24V DC input voltage
Maximum 96A total output current (3A per channel)
High-contrast OLED display with tactile touch button operation
Standard RDM remote device management protocol
Supports standard, linear, LOG, and custom 0.1-9.9 dimming curves
16-bit or 8-bit output resolution configurations
Quadruple DMX interface options: 3-pin XLR, 5-pin XLR, RJ45, and green terminal blocks
Integrated signal amplifier function on green terminals
Comprehensive short circuit, over-current, and overheat protection
5 Year Warranty
