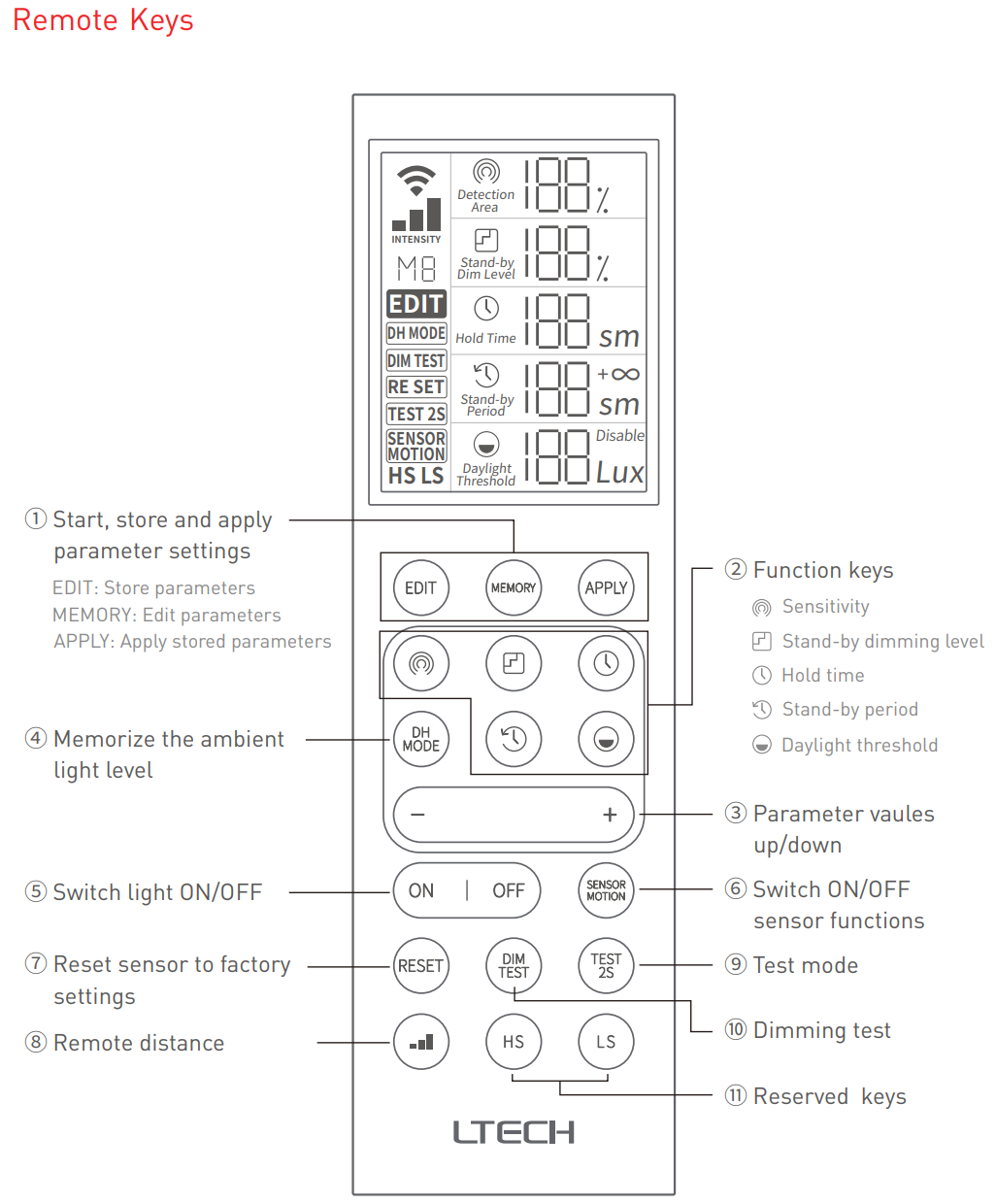

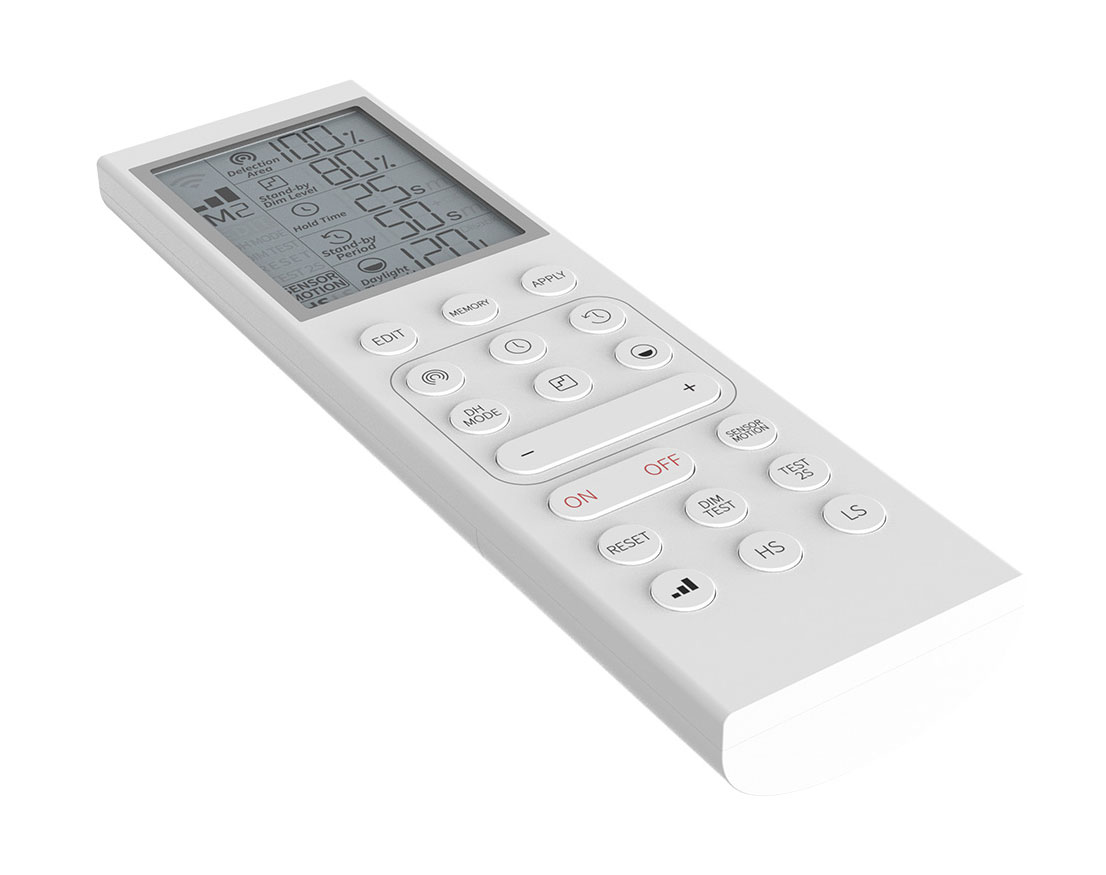

LR1 is an infrared remote used for setting up the microwave motion sensor parameters. The remote uses a more intuitive segment code screen to view all parameters you set. Through the memory and storage function of the remote, you can store parameters when finishing the setting. Multiple application effects can be switched just with one key. The remote design makes operations more user-friendly.

Technical Specs
Product name: Infrared Remote
Product model: LR1
Output signal: Infrared signal
Battery powered: 1.5V AAA baterry(2-pack)
Standby power consumption: <1uA
Operating power consumption: Peak<40mA
Communication distance: ≤6 meters
Operating temperature: -20℃~50℃
Protection rating: IP20
Dimensions (LxWxH): 170x50x20mm
Package size (LxWxH): 173.5x55x28mm
Net weight: 99g
