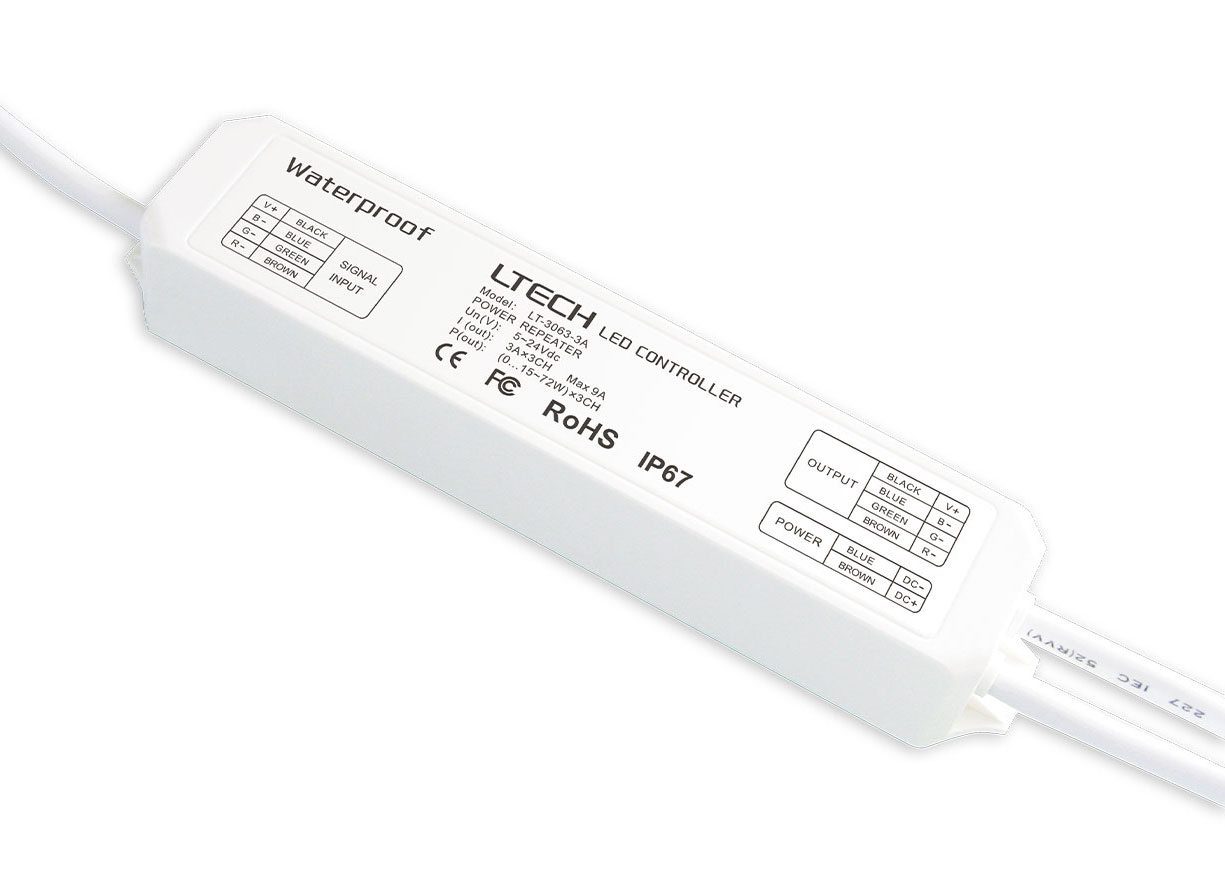

CV LED Power Repeater LT-3063-3A - 5~24V
SKU:
LT-3063-3A

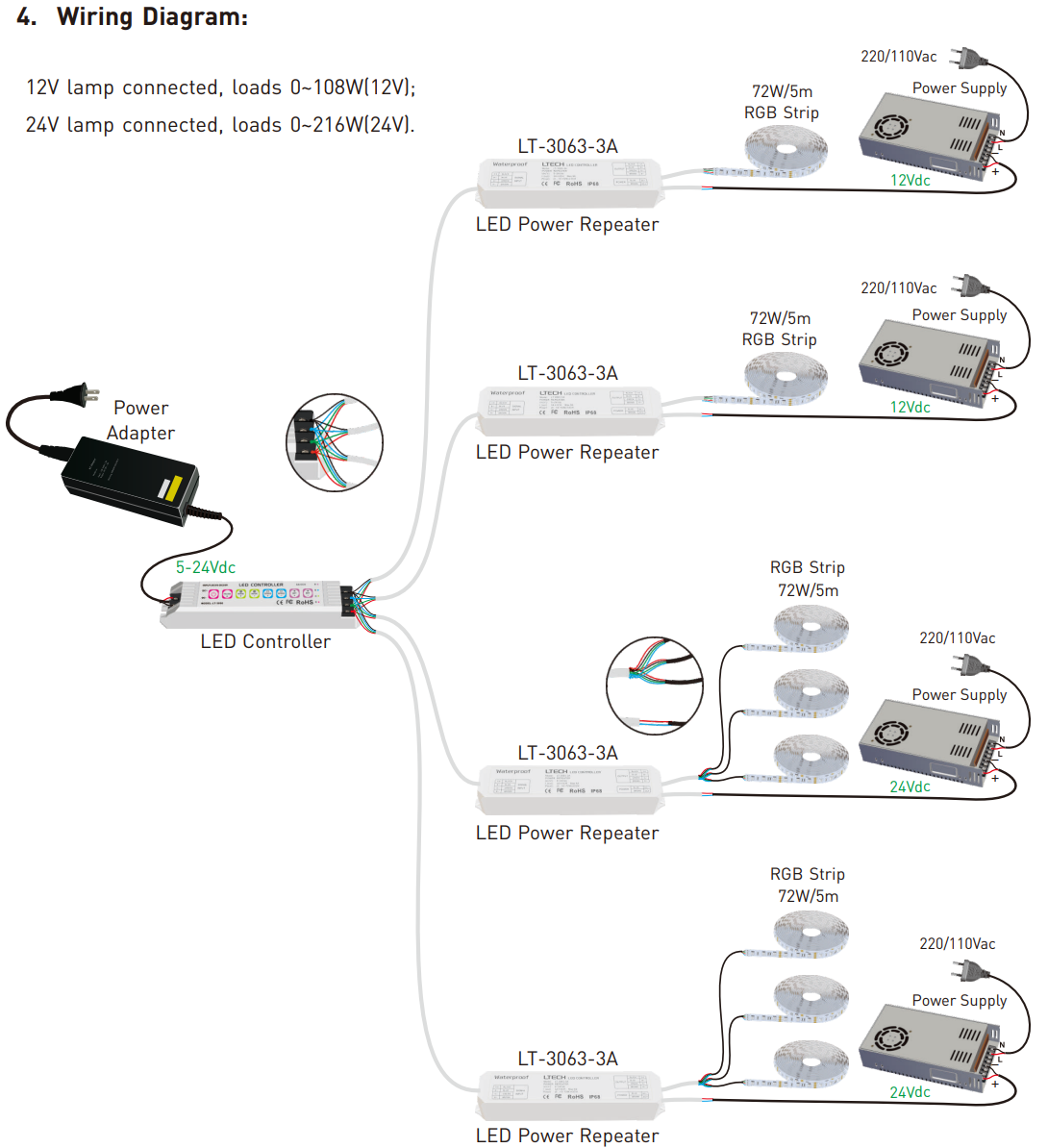

LED Power Repeater is suitable for all of our company's power-output style controllers' power expansion, it accepts PWM control, the control quantity of LED lights would be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically.
Parameter
Input signal: PWM
Input voltage: DC5V~DC24V
Max load current: 3A ×3CH Max 9A
Max output power: 45W/108W/216W(5V/12V/24V)
Output signal: CV PWM
working temperature: -30℃~55℃
Dimension: L163×W35×H28(mm)
Package Size: L213×W44×H38(mm)
Weight (G.W): 210g
