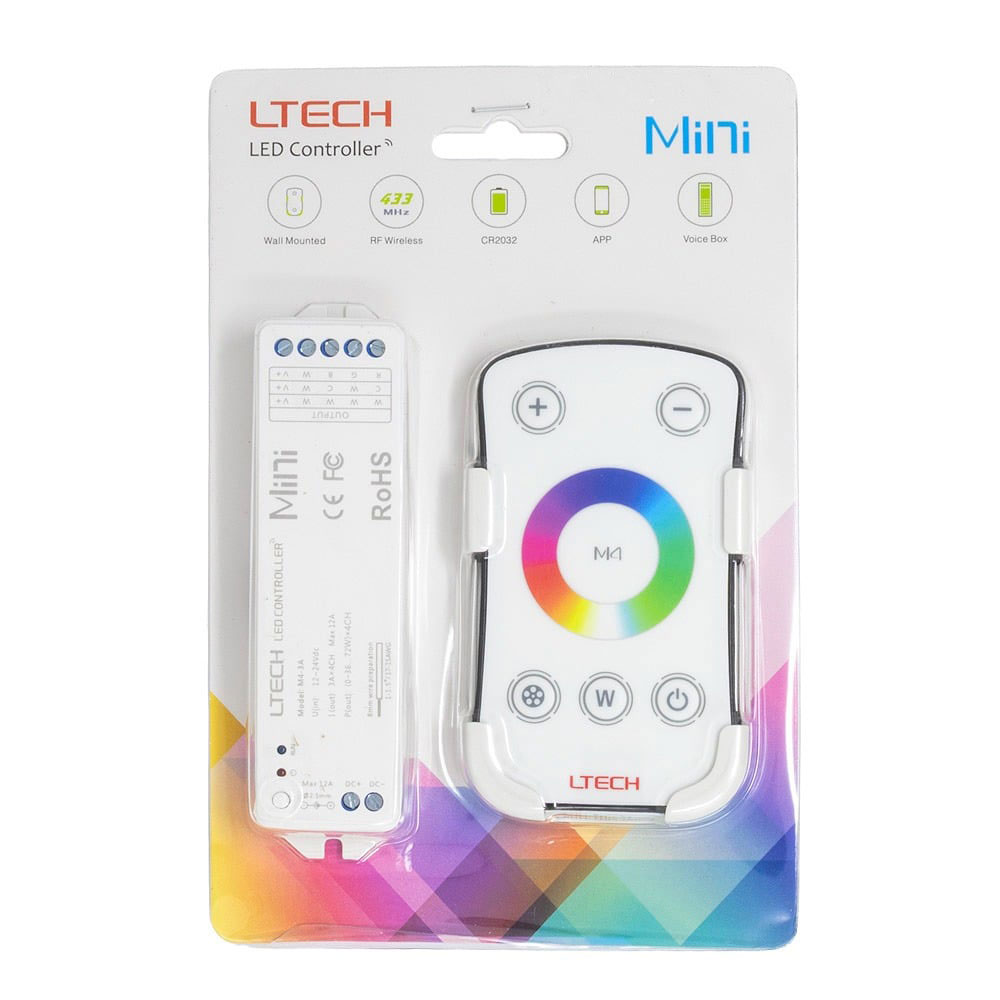

This professional-grade LTECH Mini LED Controller Kit pairs the highly compact M43A receiver with the advanced M4 RF wireless remote, delivering versatile and highly reliable RGBW lighting control. Reflecting over 10 years of independent research and development, this kit offers outstanding performance in a remarkably small form factor.

Operating on a standard 12-24V DC input, the robust receiver provides a powerful 3A per channel output across four channels, supporting a maximum load of 12A. It is specifically designed to effortlessly manage constant voltage RGBW LED strips, offering seamless dimming and precise colour mixing.

The included M4 remote control utilises a 433.92MHz RF frequency, ensuring a strong, reliable connection with an impressive working distance of 40 to 50 metres, completely eliminating the need for a direct line of sight. It is powered by a standard CR2032 3V battery and includes a highly responsive touch colour circle for rapid adjustments.

Installation and synchronisation are highly efficient, featuring a dedicated ID learning button on the receiver. This allows installers to easily pair up to 10 different remote controls to a single receiver, offering exceptional flexibility for multi-user environments.

A comprehensive array of 12 pre-programmed features can be easily accessed via the remote, including:

Static colour selection (Red, Green, Blue, Yellow, Purple, Cyan, White, Black)
RGB and 7-colour skipping modes
Full-colour and RGB smooth transition effects
Adjustable speed and brightness parameters
Customisable scene-mode saving functionality
Please note that the receiver should be paired with a suitable 12-24V DC constant voltage LED power supply. Simply connect the driver and your LED lighting to the clearly marked terminal blocks to achieve professional, flicker-free illumination.

Specifications
Ultra-compact LED receiver designed for RGBW colour control
12-24V DC input voltage with a maximum 12A output (3A per channel)
RF wireless M4 remote control operating at 433.92MHz
Extended remote control distance of 40 to 50 metres
Intuitive touch colour circle and 12 pre-programmed dynamic modes
Ability to synchronise up to 10 remotes to a single receiver
Dedicated ID learning button for effortless pairing and unpairing
5 Year Warranty
