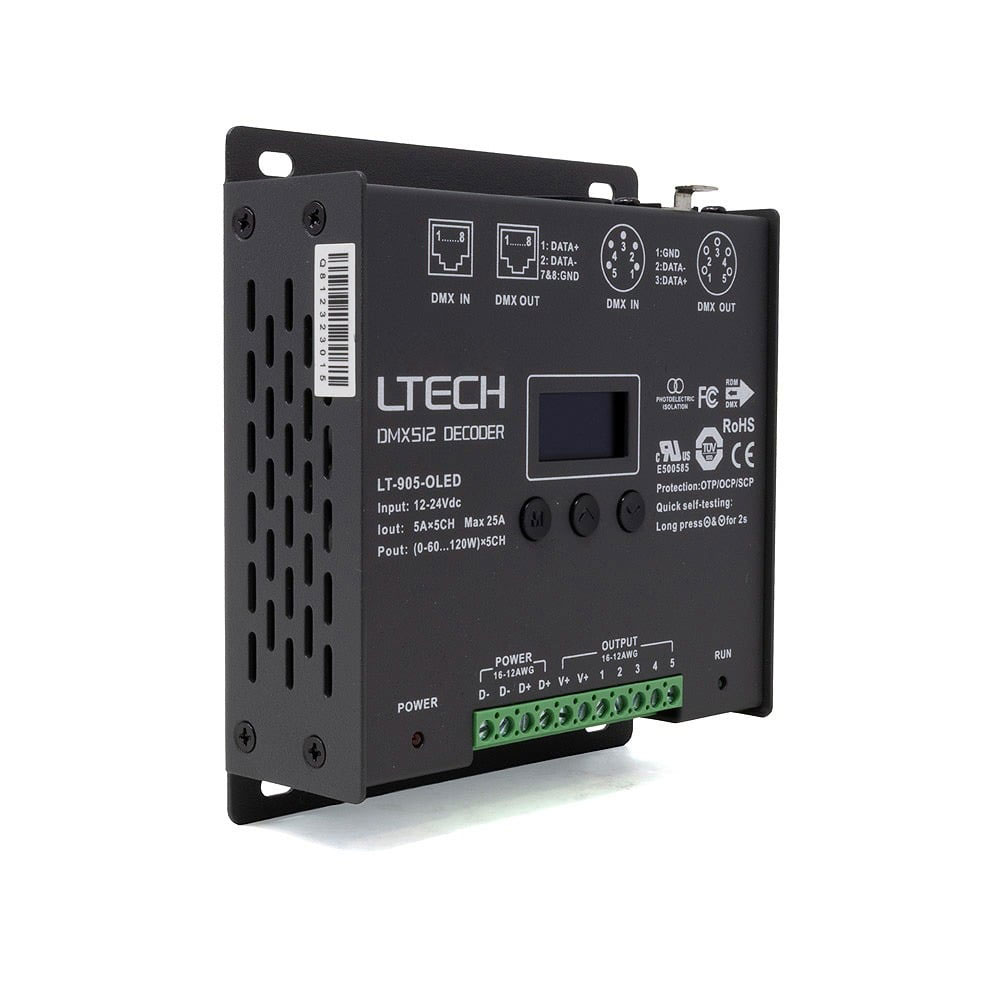

This premium 25A Constant Voltage DMX512 decoder is an installation-grade product specifically engineered for professional use within commercial environments. Ideal applications for this robust decoder include large-scale architectural lighting, hotels, restaurants, and premium retail outlets.

Available from our comprehensive LTECH range of professional lighting control products, the LT905OLED delivers exceptional reliability and advanced functionality.

This 5-channel DMX Decoder boasts high-quality control functions, integrating the standard RDM (Remote Device Management) protocol. This allows the unit to communicate bi-directionally with an RDM-equipped DMX master console or Wi-Fi editor, enabling installers to remotely detect the device, set DMX addresses, browse operating parameters, and even perform firmware upgrades without needing physical access to the decoder itself.

To ensure flicker-free and precise lighting control, the unit features selectable PWM frequencies (Standard, High, Mid, Low), alongside 8-bit or 16-bit resolution capabilities. These advanced dimming parameters make the product particularly suitable for environments requiring high-definition illumination, including TV and film studios where flicker-free operation is paramount.

The system integrates photoelectric isolation across its DMX interfaces, drastically improving signal transmission efficiency and anti-interference capabilities over long network runs.

A variety of operational parameters can be easily configured via the built-in OLED digital display and tactile menu buttons:

DMX address configuration
PWM output frequency selection (High, Mid, Low, Standard)
Operating mode selection (DIM, CT, RGB, RGBW, RGBWY)
PWM output resolution selection (8-bit or 16-bit)
Dimming curve adjustment (Standard, Linear, LOG, or 0.1-9.9 Gamma)
Screen timeout display settings and self-testing functionality
The DMX signal input and output ports for this decoder offer exceptional versatility, featuring both 5-pin XLR and RJ45 connections, completely isolated for maximum signal integrity.

Please note that this unit requires a suitable 12-24V DC LED power supply. Simply connect the decoder to an appropriate LED driver and a master DMX control source to achieve professional, flawless control over your constant voltage LED strips and associated lighting arrays.

Specifications
5 channel constant voltage DMX/RDM decoder
12-24V DC input voltage
Maximum 25A output current (5A per channel)
Intuitive OLED display and touch button operation
RDM protocol for remote parameter browsing and firmware upgrades
Five modes available: DIM, CT, RGB, RGBW, and RGBWY
16-bit or 8-bit output resolution configurations
5-pin XLR and RJ45 DMX interfaces with photoelectric isolation
Comprehensive short circuit, over-current, and overheat protection
5 Year Warranty
