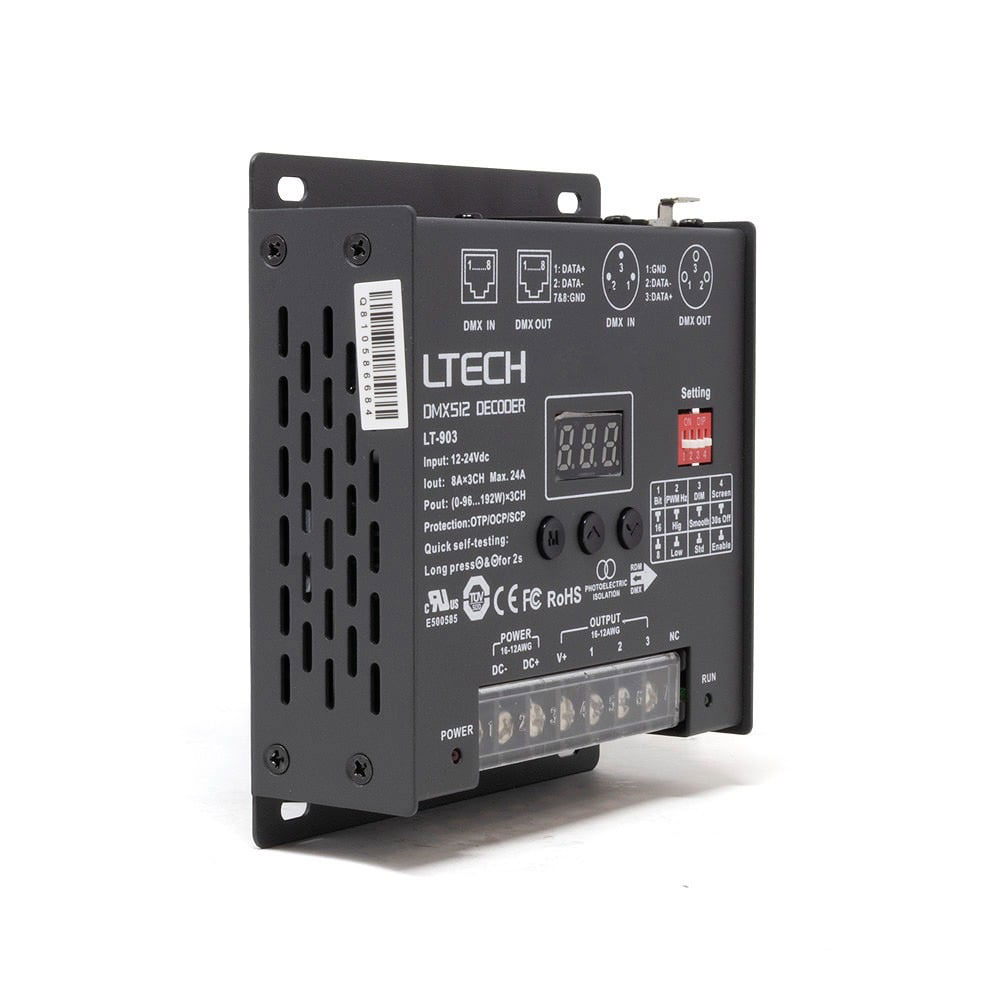

This high-performance 24A Constant Voltage DMX512 decoder is an installation-grade product specifically built for professional use within commercial environments. Ideal applications for this robust decoder include large-scale architectural lighting, hotels, restaurants, and premium retail outlets.

Available from our comprehensive LTECH range of professional lighting control products, the LT904 delivers exceptional reliability and advanced functionality.

This 4-channel DMX Decoder boasts high-quality control functions, integrating the standard RDM (Remote Device Management) protocol. This allows the unit to communicate bi-directionally with an RDM-equipped DMX master console, enabling installers to remotely detect the device, set DMX addresses, and browse operating parameters without needing physical access to the decoder itself.

To ensure flicker-free and precise lighting control, the unit features selectable high or low PWM frequencies, alongside 8-bit or 16-bit resolution capabilities. These advanced dimming parameters make the product particularly suitable for environments requiring high-definition illumination, including TV and film studios.

The system integrates photoelectric isolation across its DMX interfaces, drastically improving signal transmission efficiency and anti-interference capabilities over long network runs.

A variety of operational parameters can be easily configured via the built-in digital display and tactile menu buttons, or via the integrated DIP switches:

DMX address configuration
PWM output resolution selection (8-bit or 16-bit)
PWM output frequency selection (High or Low)
Dimming curve adjustment (Standard or Smooth)
Screen timeout display settings
Quick self-testing functionality
The DMX signal input and output ports for this decoder offer exceptional versatility, featuring both 3-pin XLR and RJ45 connections, completely isolated for maximum signal integrity.

Please note that this unit requires a suitable 12-24V DC LED power supply. Simply connect the decoder to an appropriate LED driver and a master DMX control source to achieve professional, flawless control over your constant voltage LED strips and associated lighting arrays.

Specifications
4 channel constant voltage DMX/RDM decoder
12-24V DC input voltage
Maximum 24A output current (6A per channel)
RDM protocol for remote parameter browsing and address changes
Selectable high and low PWM frequency options
16-bit or 8-bit output resolution configurations
Smooth and standard dimming curve options
3-pin XLR and RJ45 DMX interfaces with photoelectric isolation
Short circuit, overheat, and over-current protection
5 Year Warranty
