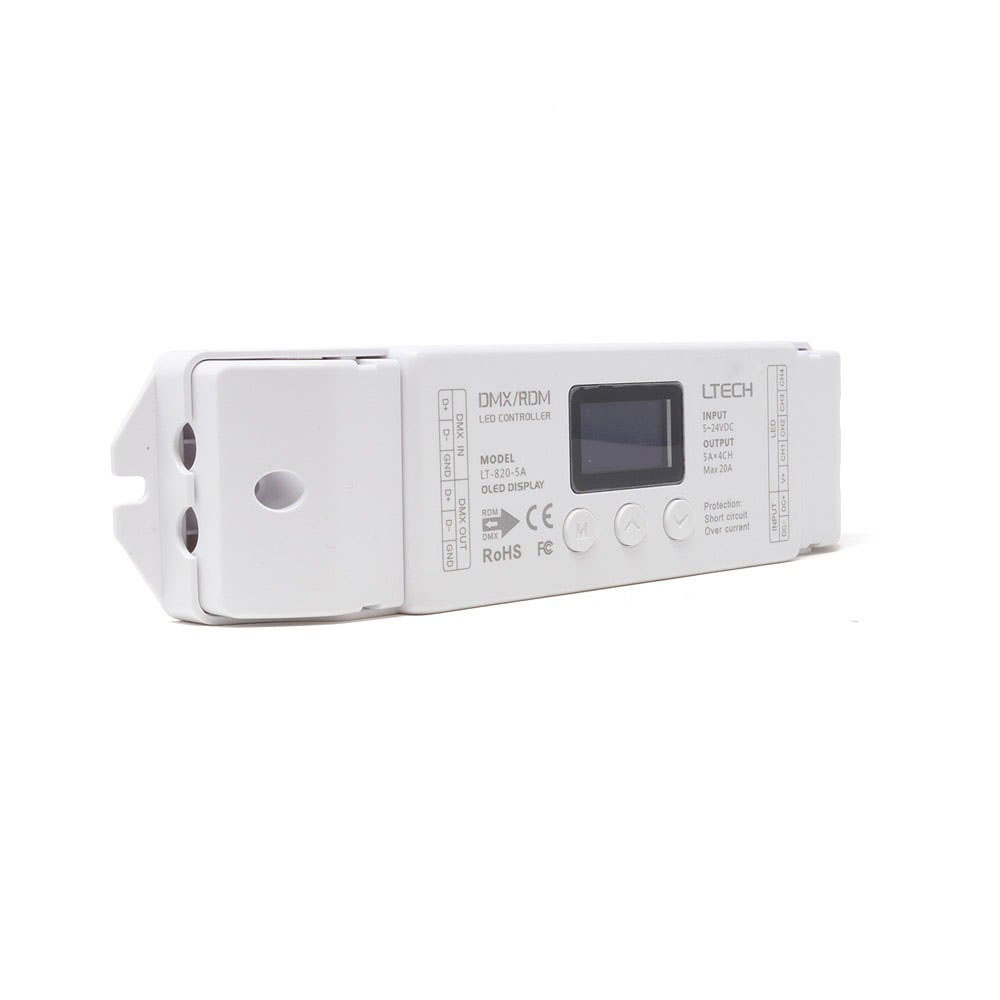

This 20A Constant Voltage DMX512 decoder is an installation-grade product suitable for professional use in commercial installations. An example of suitable installations would be places such as hotels, restaurants and retail outlets.

This DMX Decoder is available from our LTECH range of professional lighting control products.

Featuring many professional features, this DMX Decoder has high-quality control functions such as standard RDM remote device management. The Decoder also features an outstanding performance capacity with 16-bit or 8-bit input options and three optional dimming curves to ensure precise, flicker-free illumination. The product is highly reliable, featuring built-in protection circuits for resistance to lightning strokes and ESD static electricity.

The RDM bi-directional communication function enables an RDM-equipped DMX master console to detect, read, and write DMX addresses, as well as remotely display decoder information.

A variety of features that can be set via the real-time OLED digital display and function keys are:

DMX address setting
DMX real-time data viewing
Input resolution (8-bit or 16-bit)
Dimming curve selection
System self-testing
The DMX signal input and output ports for this decoder include standard secure terminal block connections for reliable hard-wired DMX input and output.

Please note that this unit requires a suitable 5-24V DC LED power supply. Connect to an appropriate LED driver and DMX master source to control your constant voltage LED strips and other lighting using DMX protocols.

Specifications
World's first OLED display DMX decoder
Standard RDM remote device management protocol
DMX512 signal bi-directional communication
Remote management for reading and writing DMX addresses
16-bit or 8-bit input resolution options
Three optional dimming curves
Built-in protection against lightning strokes and ESD static electricity
Comprehensive short circuit, over-current, and over-heat protection
5 Year Warranty
