LED Controllers & Dimmers

three channel RGB amplifier. Maximum 4 Amps per channel/12 Amps total. Used to increase the load capability and extend the signal of the universal RGB controllers. Required if exceeding the maximum load capability of any universal RGB controller. Features 3.5" CPS power plug for easy plug and play installation. 5~24VDC operation. 2 x 4-pin RGB pigtail connectors included.

Universal single channel LED dimmer can turn on and off and dim any 12~24VDC LED products from 10 to 100% using Pulse Width Modulation (PWM) touch sensitive control. Maximum load is 6 Amps. Male and female 5.5mm barrel power connector for connecting in-line with our CPS series Power Supplies. 3M double sided adhesive included. Price for each. Specifications Amps: 6.00 Amps Connection Type: CPS Female, CPS Male Dim Control: Touch Control Input Voltage DC: 12 ~ 24 VDC Polarity Sensitive: Yes...

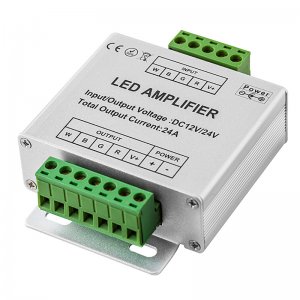

four channel RGBW amplifier. Maximum 6 Amps per channel/24 Amps total. Increases the load capability and extends the signal of universal RGBW controllers. Required if exceeding the maximum load capability of any universal RGBW controller. 12~24VDC operation. Specifications Amps: 24.00 Amps Amps per Channel: 6 Amps/CH Channels: 4 Channels: 4 Channels Connection Type: Screw Terminals Max Load: 24.0A Operating Temperature: -20~+60 °C (-4~+140 °F) Polarity Sensitive: Yes Standards And...

RGB-A4 series three channel RGB amplifier. Maximum 4 Amps per channel/12 Amps total. Increases the load capability and extend the signal of the universal RGB controllers. Required if exceeding the maximum load capability of any universal RGB controller. 12~24VDC operation. Specifications Amps: 12.00 Amps Amps per Channel: 4 Amps/CH Channels: 3 Channels Connection Type: Screw Terminals IP Rating: Non-Weatherproof Standards And Certifications: RoHS Compliant Type: Amplifier Package Weight: 5.7oz...

Waterproof RGB Amplifier can be used with any of our RGB LED Controllers to extend the number of the RGB LED Strips or Bars connected to it. RGB-WA4 series waterproof three channel RGB amplifier. Maximum 4 Amps per channel/12 Amps total. Increases the load capability and extend the signal of the universal RGB controllers. Required if exceeding the maximum load capability of any universal RGB controller. 12VDC operation. Specifications Amps: 12.00 Amps Amps Per Channel: 4 Amps/CH Channels: 3...

Adjustable PIR switch automatically activates connected 12VDC LED lights when human motion is detected. Adjustable sensitivity, detection range, and light-on time. Can be set to remain on for any period of time between 30 seconds and 9 minutes. Motion detection range is within 7 meters and 160 degrees from center of PIR sensor. Male and female 5.5mm barrel power connector for connecting in-line with our CPS series power supplies. Single channel - 5 Amp maximum load. 12VDC operation.

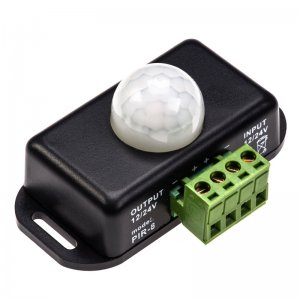

This Mini PIR Sensor automatically powers on connected 12 VDC or 24 VDC LED lights when human motion is detected. The sensors will power on lights at night or during the day, and an adjustable dial allows your lights to remain on for 1, 3, 5, 8, or 10 minutes. Motion detection range is within 8 meters (26') of the PIR sensor. The single-channel sensor has a 6-Amp maximum load and operates within a 12-24 VDC range. Price for each.

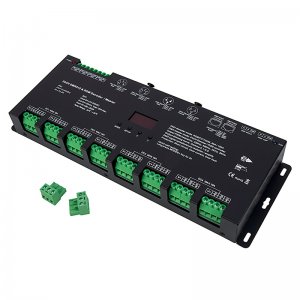

DS series 24 Channel DMX512 and RDM Decoder converts DMX and RDM signals to PWM for single color, CCT and/or RGB LED lighting products. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 24 channels, it allows a max of 3A and 120W per channel for controlling larger projects. Selectable 16bit (65536 levels) or 8bit (256 levels)...

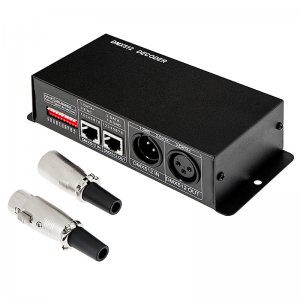

This 3 channel DMX512 decoder can control up to 3 different 12 VDC LED products or any one RGB LED light bar or strip. Controller can run in stand-alone mode using Address code switches or under DMX512 digital control signals using XLR or RJ45 DMX512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 16-bit gray scale output per channel. Maximum load is 4 amps per channel—12 Amps total....

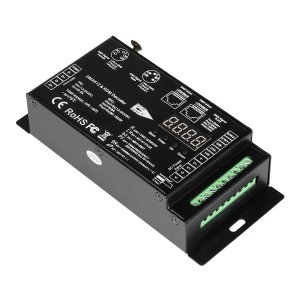

This DMX 512 decoder/RDM controller can control up to 5 different single-color 12-24 VDC LED products, 1 RGBW + CCT light strip, or any 1 RGB or RGBW LED light bar along with 1 or 2 additional single-color products. The decoder can run in stand-alone mode using address code buttons, under DMX512 digital control signals using XLR-5 or RJ45 DMX512 input/output interfaces, or in RDM mode using a device or computer with RDM software. The DMX decoding driver converts universal DMX512/1990 digital...

Universal Red/Green/Blue (RGB) LED dimmer can dim any 12VDC RGB LED products from 0 to 100% using Pulse Width Modulation (PWM) circuits. Knob controls for full range custom color creation. Maximum load is 3 amps per channel, 9 amps total.

Universal Red/Green/Blue (RGB) LED Mini Controller & Dimmer with built-in buttons can control most 5~24VDC RGB LED products. Features 20 static color modes with brightness control and 19 dynamic color-changing modes with Speed control. Comes with 3.5" CPS power plug for easy plug and play installation. Maximum load is 4 Amps per channel (3 channel). 4-pin RGB pigtail connector included.

Universal Red/Green/Blue (RGB) LED controller and dimmer with handheld infrared remote that can control any 5~24VDC RGB LED products. Select from 20 static modes, custom color programming, or 6 dynamic color-changing modes with speed and ON/OFF controls. Suitable for vehicles. The maximum load is 3 amps per channel, 9 amps total. Specifications Amps：9 Amps Amps Per Channel：3 Amps/CH Channels：3 Channels Control Type：Infrared (IR) Remote Input Connection Type：Screw Terminals...

Use this RBG+Tunable White controller with wireless RF remote to control your RGB+Tunable White LED strip lights. Choose from 9 color-changing/white modes and adjust speed, brightness, saturation, and color temperature. Control your light strip from up to 100' away. Power-cycle mode retention allows your light strip to return to the mode that was selected before it was powered off. The touch-activated/push-button remote has a color wheel as well as brightness and saturation/tunable white...

This 24 channel DMX512 decoder can control up to 24 different 12 VDC LED products or 8 RGB LED light bars or strips. The decoder is made to be compatible with any brand of DMX controller console and signaling rates and uses an 8-bit standard DMX transmission. Decoder can run in stand-alone mode using Address code switches or under DMX-512 digital control signals using XLR or RJ45 DMX-512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal,...
