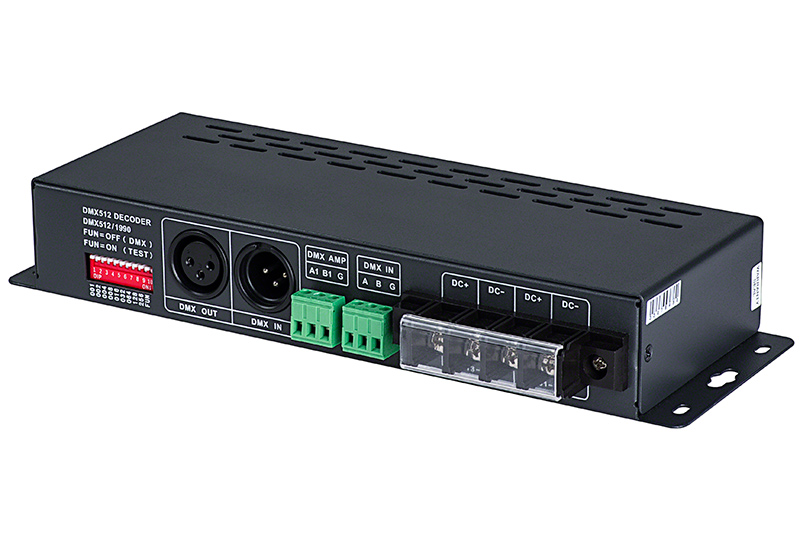

This 24 channel DMX512 decoder can control up to 24 different 12 VDC LED products or 8 RGB LED light bars or strips. The decoder is made to be compatible with any brand of DMX controller console and signaling rates and uses an 8-bit standard DMX transmission. Decoder can run in stand-alone mode using Address code switches or under DMX-512 digital control signals using XLR or RJ45 DMX-512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 16-bit gray scale output per channel. Maximum load is 3 amps per channel—72 Amps total.

Specifications
Amps: 72 Amps
Amps Per Channel: 3 Amps/CH
Channels: 24 Channels
Connection Type: Screw Terminals
Input Voltage DC: 5 ~ 24 VDC
Remote Control: DMX
Special Features: Custom Colors
Standards And Certifications: RoHS Compliant
Suitable for Vehicles: No
Type: DMX Controller
Volts: 5~24 VDC
Package Weight: 13.4oz (0.38kg)
Package Dimensions: 7.25" (18cm) x 2.76" (7cm) x 2.76" (7cm)
