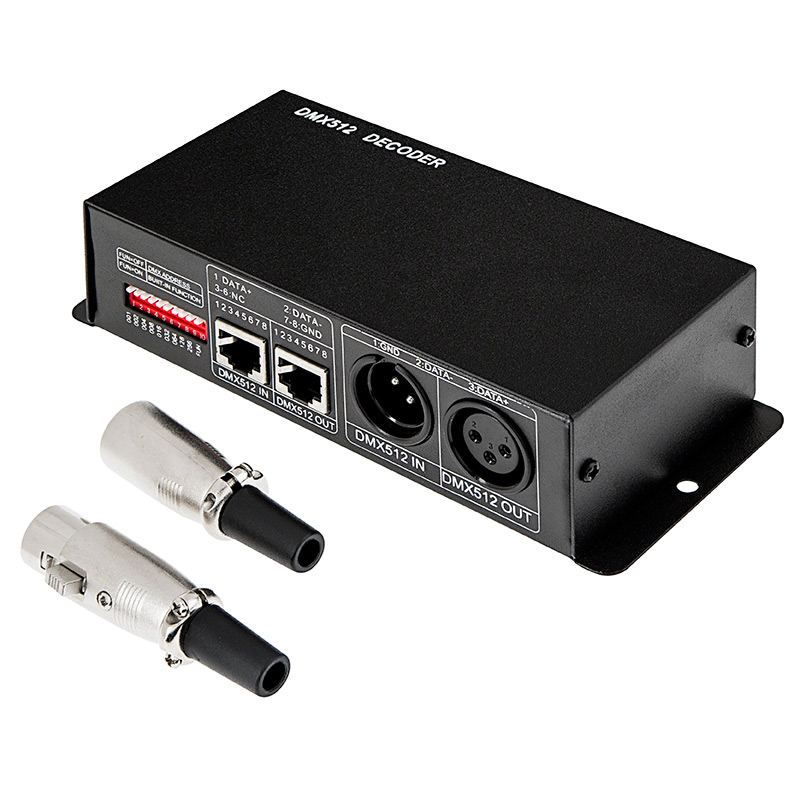

This 3 channel DMX512 decoder can control up to 3 different 12 VDC LED products or any one RGB LED light bar or strip. Controller can run in stand-alone mode using Address code switches or under DMX512 digital control signals using XLR or RJ45 DMX512 Input/Output interfaces. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 16-bit gray scale output per channel. Maximum load is 4 amps per channel—12 Amps total. Includes male and female 3-pin XLR connectors.

Specifications
Amps: 12.00 Amps
Amps Per Channel: 4 Amps/CH
Channels: 3 Channels
Connection Type: Screw Terminals
Input Voltage: 12 VDC
Remote Control: DMX
Special Features: Custom Colors
Standards And Certifications: RoHS Compliant
Suitable for Vehicles: No
Type: DMX Controller
Volts: 12~24 VDC
Package Weight: 13.4oz (0.38kg)
Package Dimensions: 7.25" (18cm) x 2.76" (7cm) x 2.76" (7cm)
