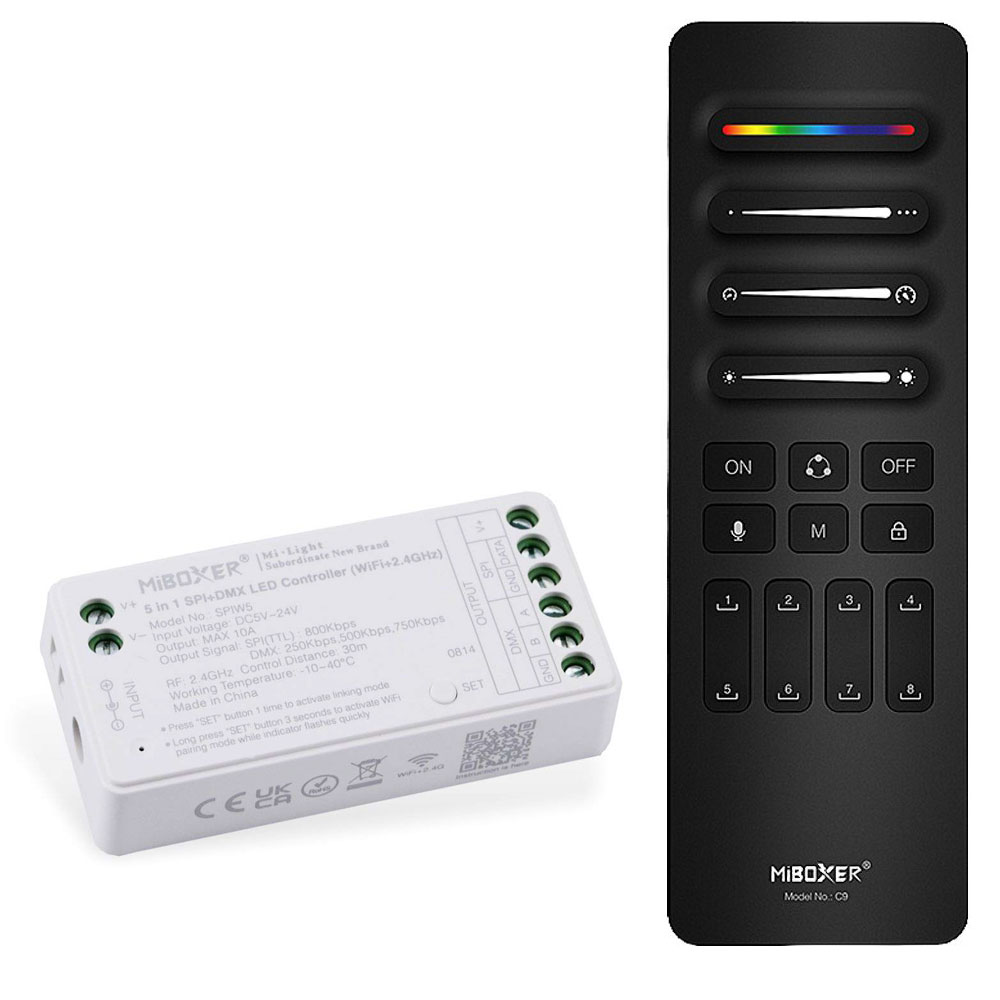

The MiBoxer 5-in-1 Wireless LED Strip Controller features an SPI/DMX dual-communication protocol and a 5-24 VDC input voltage range. The controller is only compatible with 3-wire SPI LED strips and 4-wire DMX LED strips. Use the optional C9 remote to control single colors, CCTs, RGB colors, RGB+W, and RGB+CCT on compatible addressable strip lights. Dynamic mode provides 28 white color options and 80 RGB color options with the color, speed, width, and brightness being dimmable. It is compatible with Alexa and Google Assistant and does not need a Wi-Fi LED Controller Hub for smartphone control. For full control of strips and to set the communication protocol to either SPI or DMX, the Tuya Smart App must be downloaded for smartphone use. 8 music modes work with built-in microphone or smartphone microphone. The Electromagnetic compliance (EMC) ensures compatibility in professional lighting setups. Optional remote is powered by 2x AAA batteries (not included).

Product Details:
30m remote control communication range
Output signal:
SPI: 800Kbps (Max 1024 Pixel)
DMX: 250Kbps (Max 256 Pixel)
DMX: 500Kbps (Max 512 Pixel)
DMX: 750Kbps (Max 768 Pixel)
Input power connected by screw terminals or 5.5mm x 2.1mm DC barrel connector
Remote connection via 2.4 GHz signal
Save up to 8 lighting scenes
10A Max output
5-24 VDC input voltage

Specifications
Ambient Operating Temperature：-10 to 40 °C (14 to 104 °F)
Amps：10 Amps
Certifications/Compliance：CE, UKCA
Detection Range：98.4 ft (30 m)
Environmental Rating：Non-weatherproof
Finish：White
Input Connection Type：5.5 mm x 2.1 mm DC Barrel, Screw Terminal
IP Rating：IP20
Max Output Current：10 A
Output Connection Type：Screw Terminal
Product Materials：Polycarbonate
Smart Home Ecosystem：Amazon Alexa, Google Home
Supported Smart Phone Apps：MiBoxer, Smart Life / Tuya
Voltage：5-24 VDC
Warranty：2 Year
