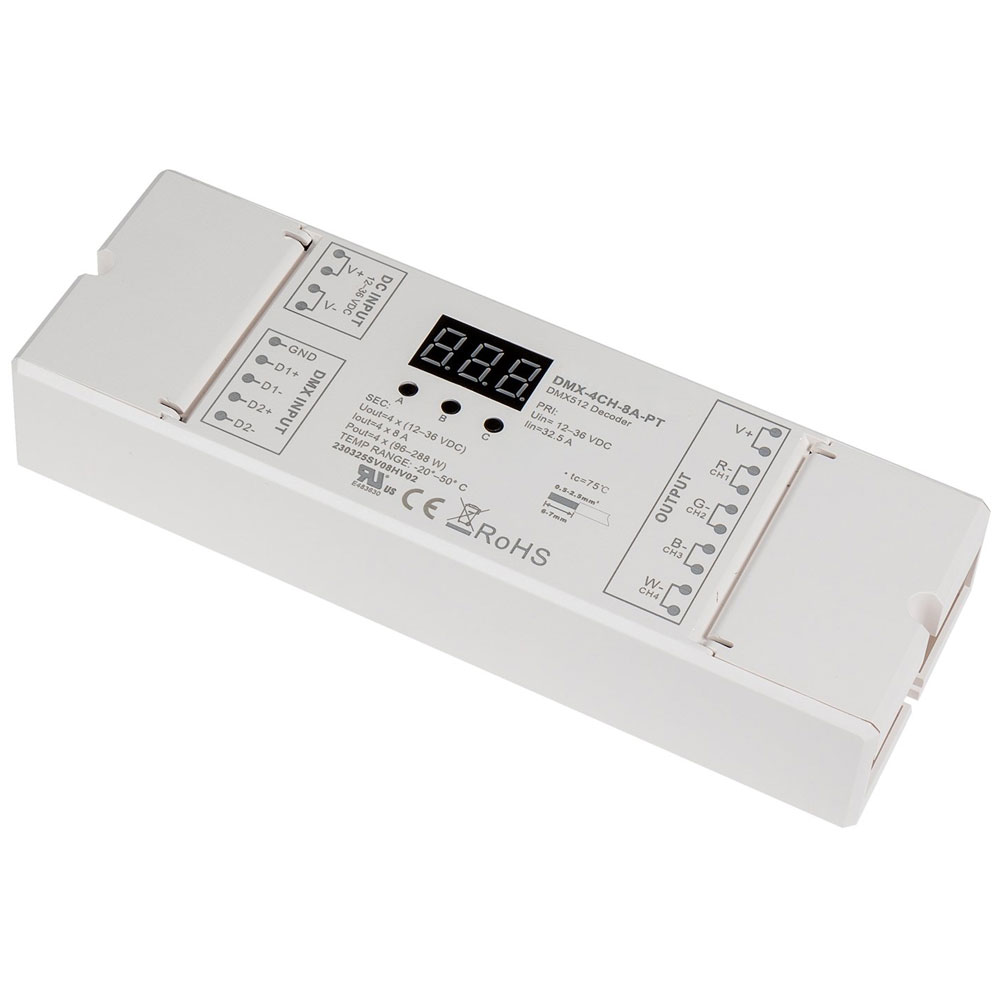

The 4-channel DMX RDM digital decoder features RDM bi-direction communication enabling it to detect and display decoder information. This low-voltage DMX decoder controls up to four channels. It converts DMX512 signal to control single-color, RGB, RGBW, and tunable white LED lights with an easy-to-use digital interface. The digital display shows the selectable DMX address, PWM frequency, and dimming curve settings. The PWM frequency is adjustable from 200 Hz to 35 kHz (1 kHz default) for flicker-free lighting in video and photography applications. It has a maximum of 8A per channel and a total of 1,152 watts at 36 VDC.

Product Details:
Screw terminal connections for input and output
PWM frequency: 200 Hz to 35 kHz (1 kHz default)
Dimming curve gamma value: 0.1 - 9.9 (1.0 default)
12 VDC - 96 watts per channel
24 VDC - 195 watts per channel
36 VDC - 292.5 watts per channel
Up to 1,152 watts total
IP20 rated - non-weatherproof

Specifications
Ambient Operating Temperature：-20 to 50 °C (-4 to 122 °F)
Amps：32 Amps
Amps Per Channel：8 Amps/CH
Control Type：DMX512, RDM Decoder
DMX In/Out：Screw Terminals
Environmental Rating：Non-weatherproof
Input Connection Type：Screw Terminal
IP Rating：IP20
Max Input Current：32.5 A
Max Wattage：384W @ 12 VDC, 768W @ 24 VDC, 1152W @ 36 VDC
Number of Channels：4 Channels
Product Materials：Plastic
Voltage：12-36 VDC
Warranty：2 Year
