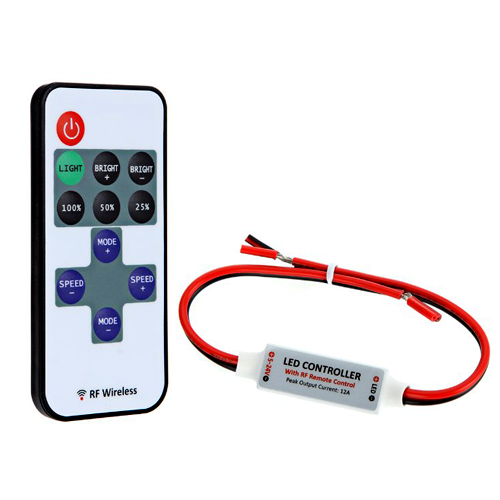

Universal single color mini LED dimmer with RF remote can dim most 5~24VDC LED products from 15%-100% using Pulse Width Modulation (PWM). 8 dynamic color-changing modes with adjustable speed control. Features power cycle mode retention. Maximum load is 4 amps. Attached 4" power input and controller output wire leads. 1 Remote to 1 controller pairing. Range greater than 30ft in open air. Battery for RF remote included.

Specifications
Applications:  Brightness and pattern control with adjustable speed and dimming capabilities for accent lighting
Function:  Dim and control single color LED products from 15~100% using PWM with RF remote control
Operating Voltage:  5~24 Volts DC
Modes:  8 Dynamic Modes
Operating Temperature:  -30~75°C
Connection Mode:  Common anode (+)
Output Power:  48W @ 12V / 96W @ 24V
Maximum Load Current:  4 Amps
Control Method:  RF Remote Control
Output:  1 Channel Single Color
Overall Size:  (L)45 x (W)12 x (H)3 mm
