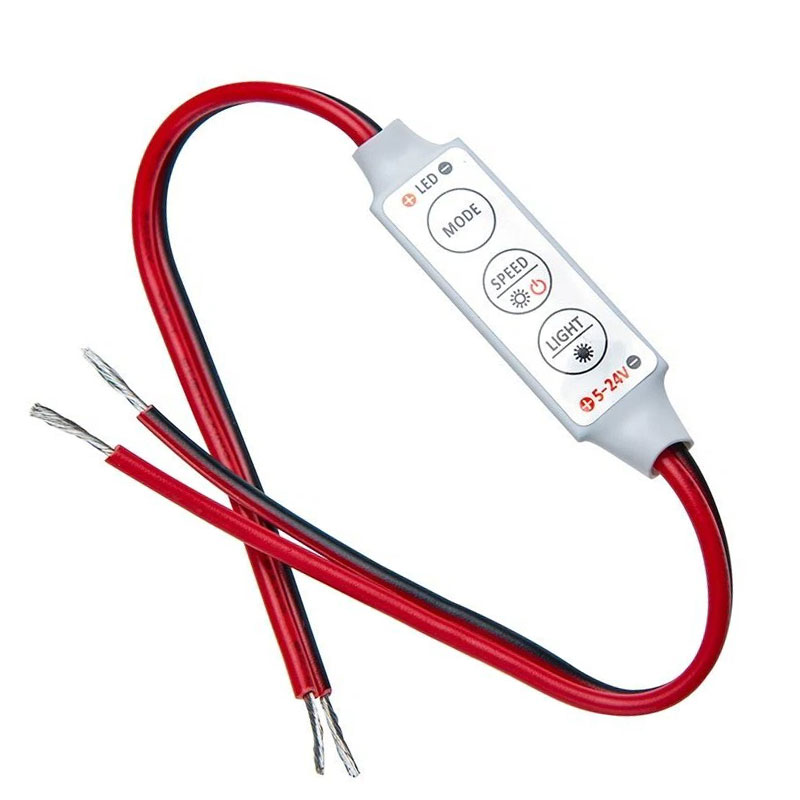

    Single Color LED Controller with Dynamic Modes - Mini LED Dimmer

      (1 Reviews) | Write a review
    SKU: MLD-5A
    Discontinued
    Starting at: $4.69
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Thu,Apr,30 and Wed,May,06. order with 2days,9hrs and 31 min.

    Universal single color mini LED dimmer can dim any 5~24V DC LED product from 10%-100% using Pulse Width Modulation (PWM) circuit push button control from stepped intensity adjustment. 5 dynamic flashing modes with adjustable speeds. Maximum load is 5 Amps - holding Speed/Bright button turns LEDs ON/OFF. Retains last setting when power is cycled. Attached 4" power input and controller output wire leads. Suitable for vehicles

    Specifications
    Amps: 5 Amps
    Amps Per Channel: 5 Amps/CH
    Control Type: Touch Controlled
    Input Connection Type: Pigtail
    Number of Channels: 1 Channel
    Output Connection Type: Pigtail
    Voltage: 5-24 VDC
    Warranty: 2 Year
