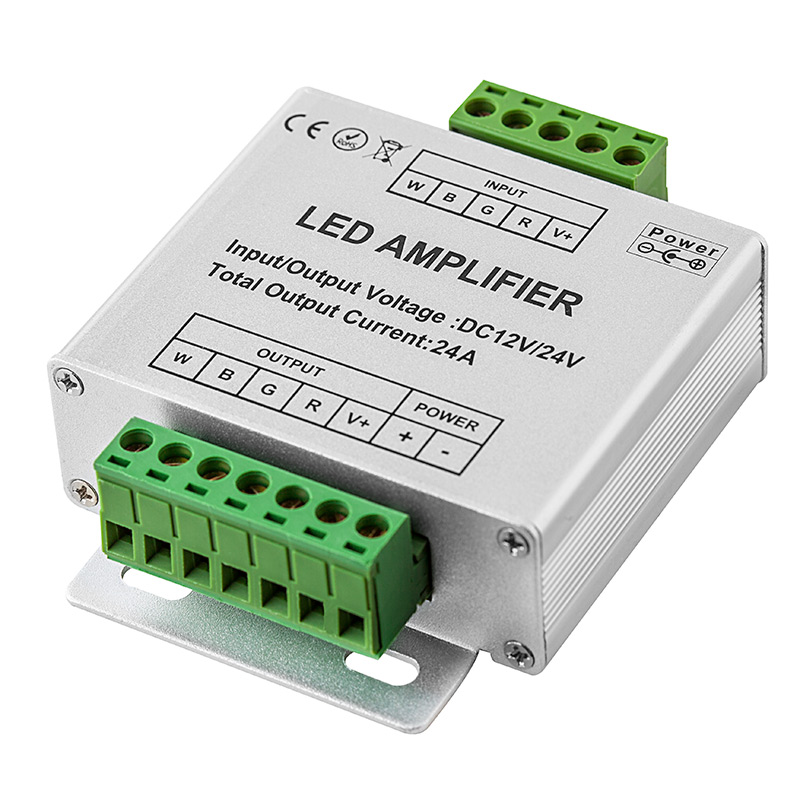

Mini RGB Amplifier
SKU:
RGBW-A6
four channel RGBW amplifier. Maximum 6 Amps per channel/24 Amps total. Increases the load capability and extends the signal of universal RGBW controllers. Required if exceeding the maximum load capability of any universal RGBW controller. 12~24VDC operation.
Specifications
Amps: 24.00 Amps
Amps per Channel: 6 Amps/CH
Channels: 4
Channels: 4 Channels
Connection Type: Screw Terminals
Max Load: 24.0A
Operating Temperature: -20~+60 °C (-4~+140 °F)
Polarity Sensitive: Yes
Standards And Certifications: RoHS Compliant
Total Power Consumption: 0.12 Watts
Type: Amplifier
Volts: 12~24 VDC
Wattage: 288 Watts
Package Weight: 4oz (0.11kg)
Package Dimensions: 5" (13cm) x 2.5" (6cm) x 2.5" (6cm)
