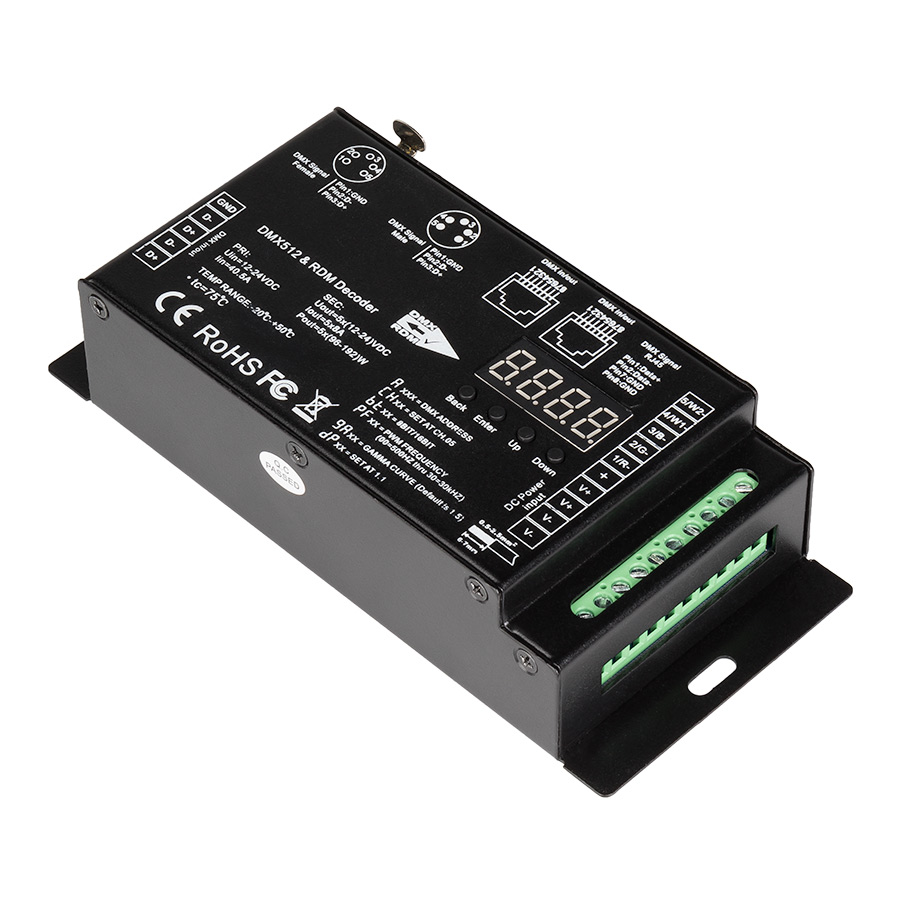

This DMX 512 decoder/RDM controller can control up to 5 different single-color 12-24 VDC LED products, 1 RGBW + CCT light strip, or any 1 RGB or RGBW LED light bar along with 1 or 2 additional single-color products. The decoder can run in stand-alone mode using address code buttons, under DMX512 digital control signals using XLR-5 or RJ45 DMX512 input/output interfaces, or in RDM mode using a device or computer with RDM software. The DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 8-bit or 16-bit gray scale output per channel. RDM mode allows 2-way communication between the controller and computer or smart devices. Meets RDM 2009 protocol. Maximum load is 8 amps per channel.

Specifications
Amps: 8.00 Amps
Amps Per Channel: 8 Amps/CH
Channels: 5 Channels
Connection Type: Screw Terminals
Input Voltage: 12 VDC
Operating Temperature: -20~+50 °C (-4~+122 °F)
Remote Control: DMX
Special Features: Custom Colors, Digital Display, RDM Protocol
Standards And Certifications: CE, FCC, RoHS Compliant
Suitable for Vehicles: No
Type: DMX Controller
Volts: 12~24 VDC
Package Weight: 15oz (0.43kg)
Package Dimensions: 7" (18cm) x 3" (8cm) x 1.5" (4cm)
