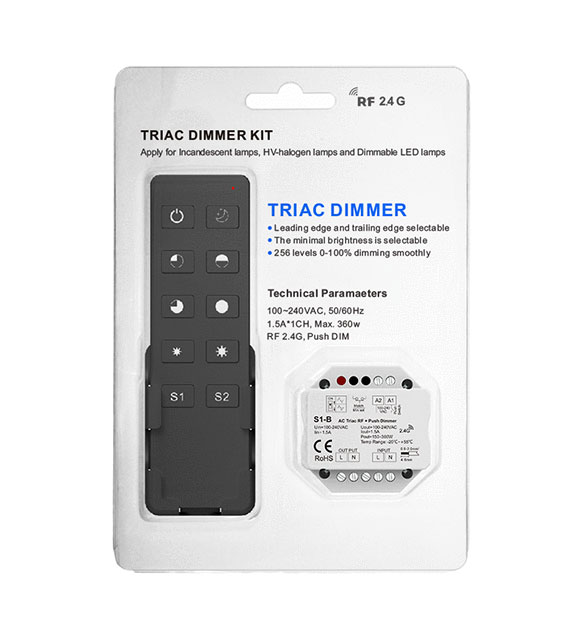

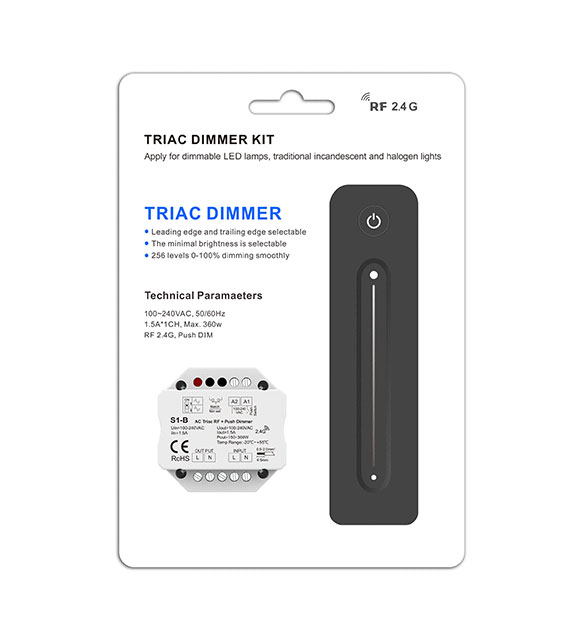

AC Triac RF Dimmer Set S1-B+R1
â—� RF + Push AC phase-cut dimmer, 1 channel output.
â—� To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
â—� Leading edge dimming or trailing edge dimming set by dip switch.

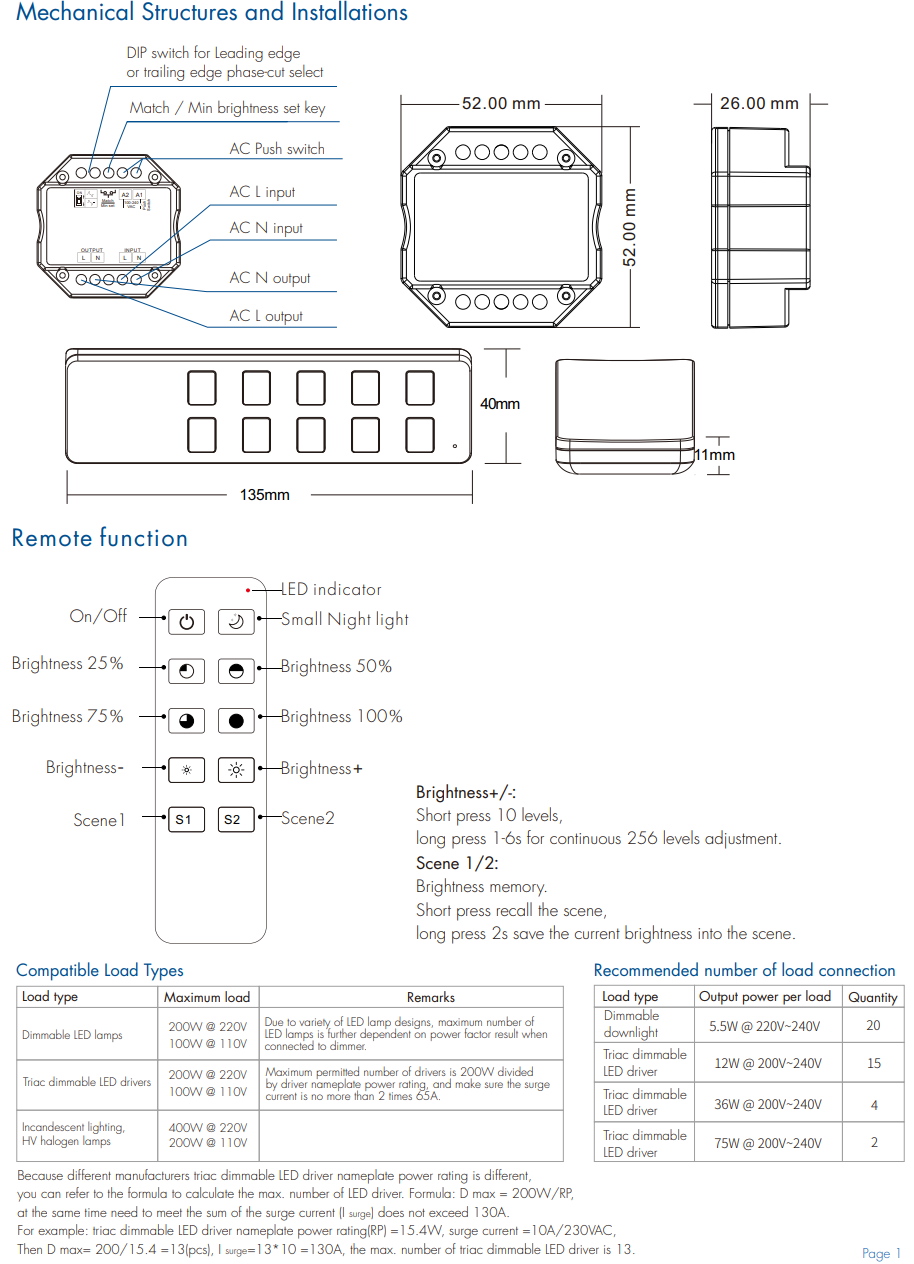

â—� Min brightness can be set by key.
â—� Compatibility with RF 2.4G dimming remote control.
â—� Light on/off fade time 3s selectable.

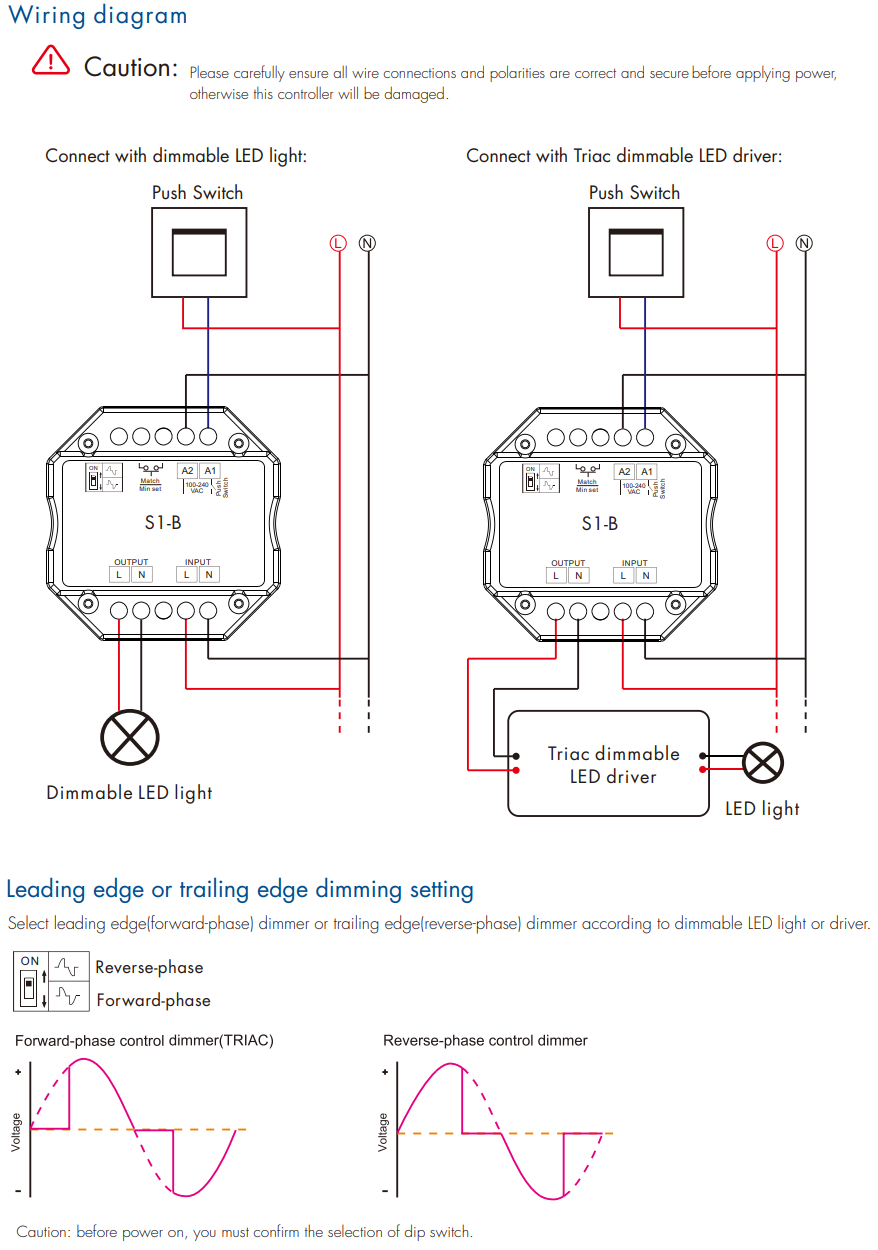

â—� Connect with external push switch to achieve on/off and dimming function.
â—� Easy to be inserted into standard 86*86mm wall box.
