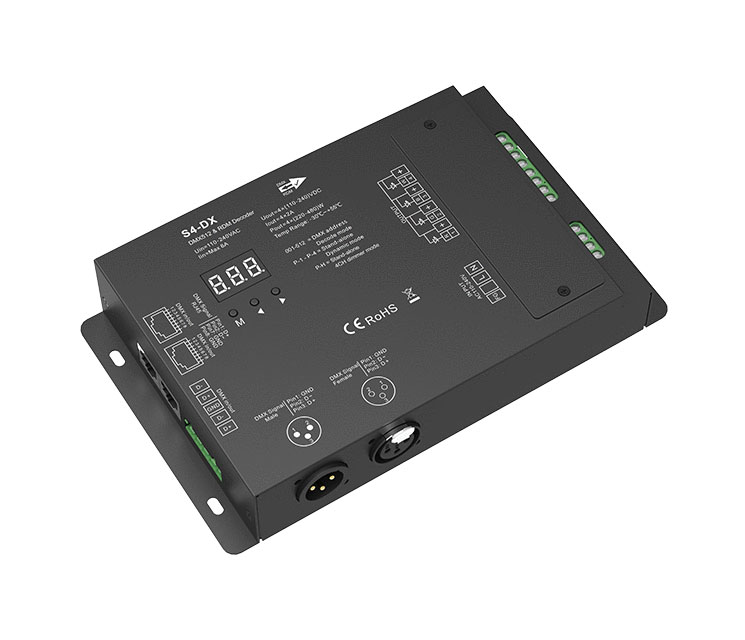

4 Channel High Voltage LED Strip DMX512 & RDM Decoder S4-DX
● 4 channel output, compatible with single color, CCT, RGB/RGBW high voltage LED strip control.
● Comply with the DMX512 standard protocols.
● Digital numeric display, set DMX decode start address by buttons.
● RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
● 1/2/4 DMX channel output selectable.
● PWM frequency 1000/2000/4000/8000Hz selectable.
● Logarithmic or linear dimming curve selectable.
● Stand-alone dynamic mode and 4 channel dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal.
● Match with RF 2.4G single zone or multiple zone single color, CCT, RGB/RGBW remote control optional.
● Green terminal, XLR3 and RJ45 port DMX signal input.
