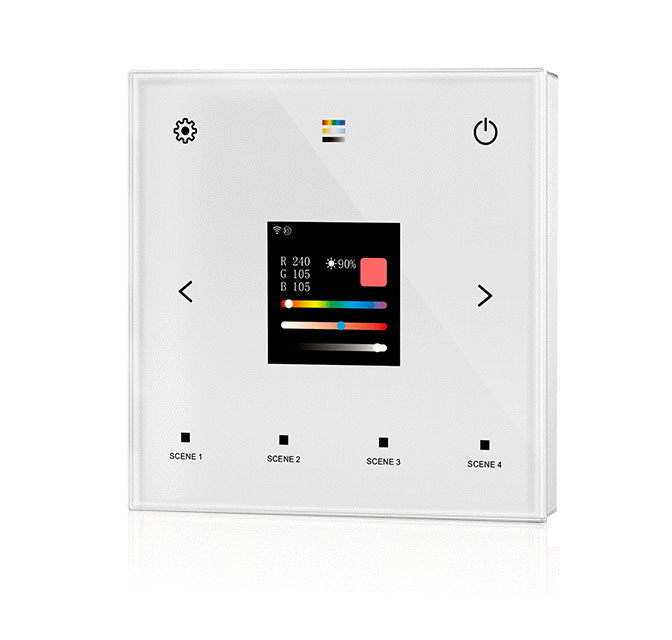

RGB+CCT 100-240VAC WiFi & RF Wall Mounted Touch DALI Panel TD-W
â—� WiFi & RF DALI master, 5 in 1 function, support single color, color temperature,
RGB, RGBW, RGB+CCT light control.
â—� Tuya smart APP cloud control, support on/off,
color temperature and brightness adjustment.
delay on/off light, scene function and dynamic mode.
â—� Adopts TFT 1.54-inch LCD color screen display, 240x240 resolution,
9 touch buttons, easy and intuitive setup and operation.
â—� Compatible with 5 light types, support DT6 dimming,
DT8-TC color temperature, DT8-RGB, DT8-RGBW, DT8-RGB+CCT.
â—� DALI-2 certified, in accordance with DALI standard protocol
IEC 62386-101,102, 207, 208, 209
and in compliance with DALI products from other international incorporation.
â—� Enable to select DALI address, support unicast, group and broadcast mode.
â—� Precise adjustment of color, color temperature and brightness via the display
and the left and right buttons.
â—� 4 scene buttons for quick recall scenes.
â—� Optional RF 2.4G remote control available.
â—� Tempered glass touch panel, available in white or black.
