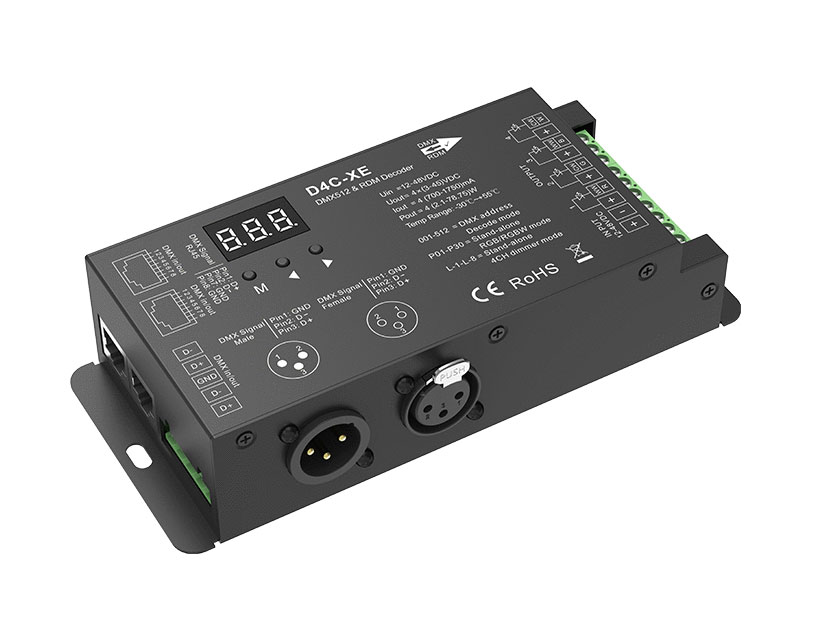

4 Channel Constant Current DMX512 & RDM Decoder - D4C-XE(700-1750mA)
â—� DC to DC constant current output, multiple output current settings.
â—� Comply with the DMX512 standard protocols.
â—� Digital numeric display, set DMX decode start address by buttons.
â—� RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
â—� 1/2/4 DMX channel output selectable.
â—� 16bit (65536 levels) /8bit (256 levels) grey level selectable.
â—� PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
â—� Logarithmic or linear dimming curve selectable.
â—� Stand-alone RGB/RGBW mode and 4 channel dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal.
â—� Green terminal, XLR3 and RJ45 port DMX signal input.
