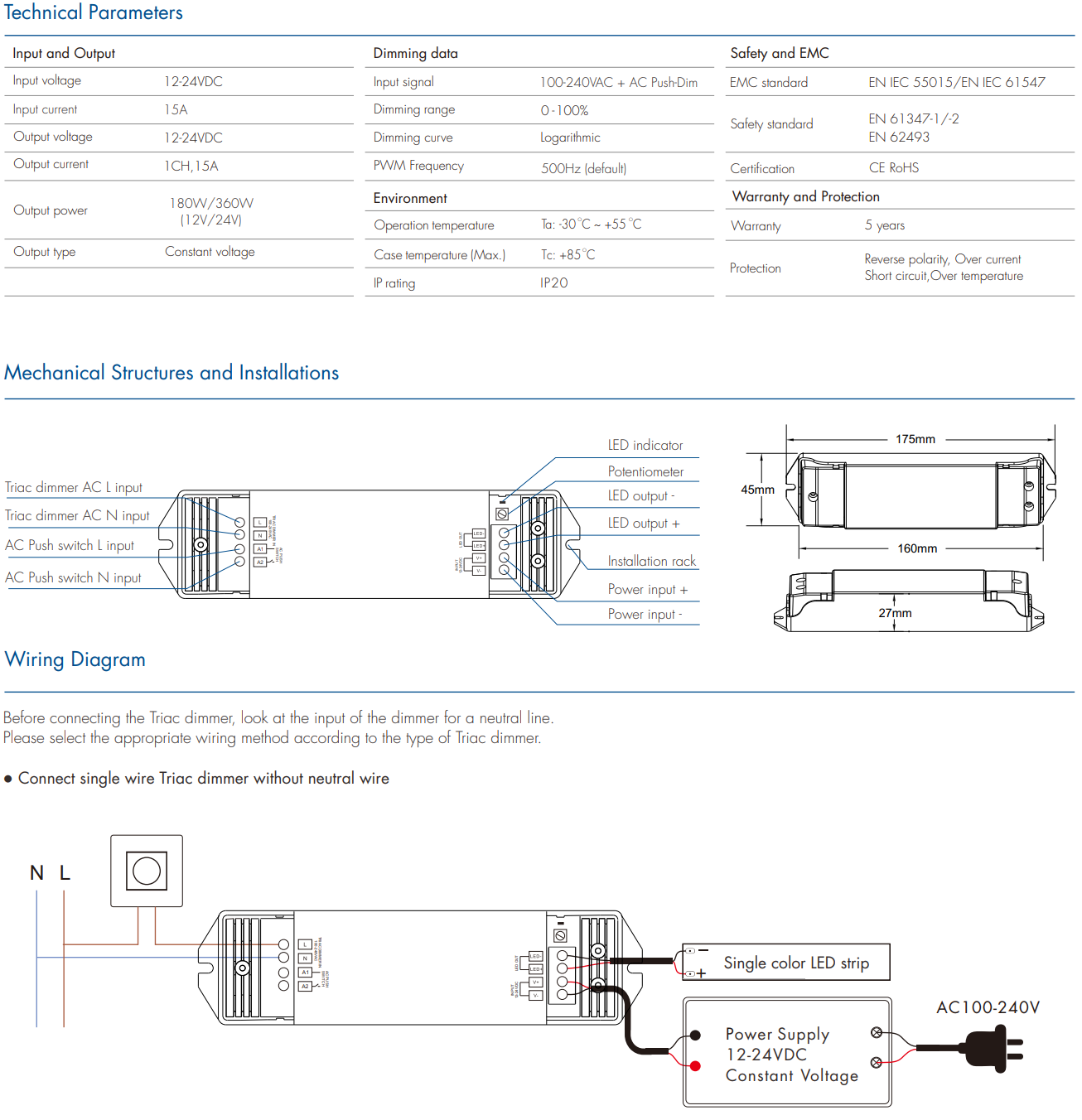

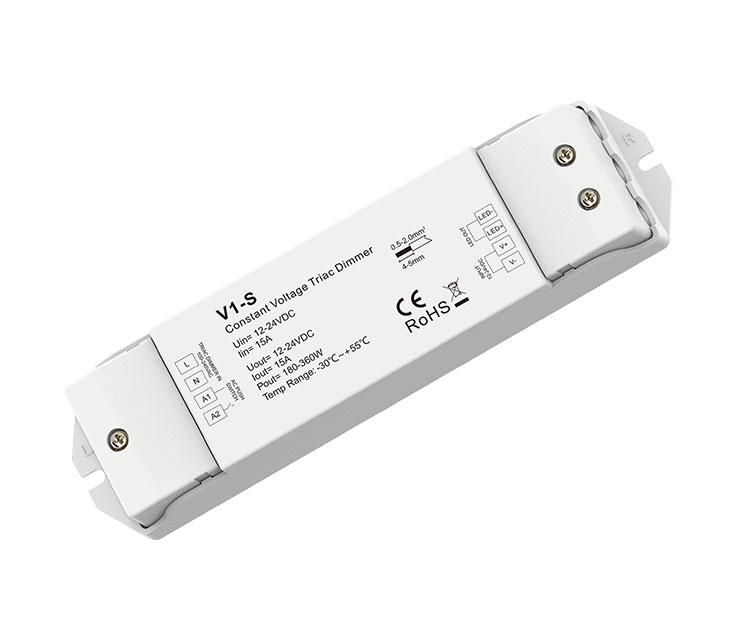

Constant Voltage Triac Dimmer V1-S
SKU:
V1-S
● Triac dimming, input AC100V-240V dimming signal.
● Apply to leading edge/trailing edge Triac dimmers and dimming system.
● One channel PWM constant voltage output, output current 15A max.
● PWM digital dimming, logarithmic dimming curve.
● Over current protection, short circuit protection, over temperature protection.

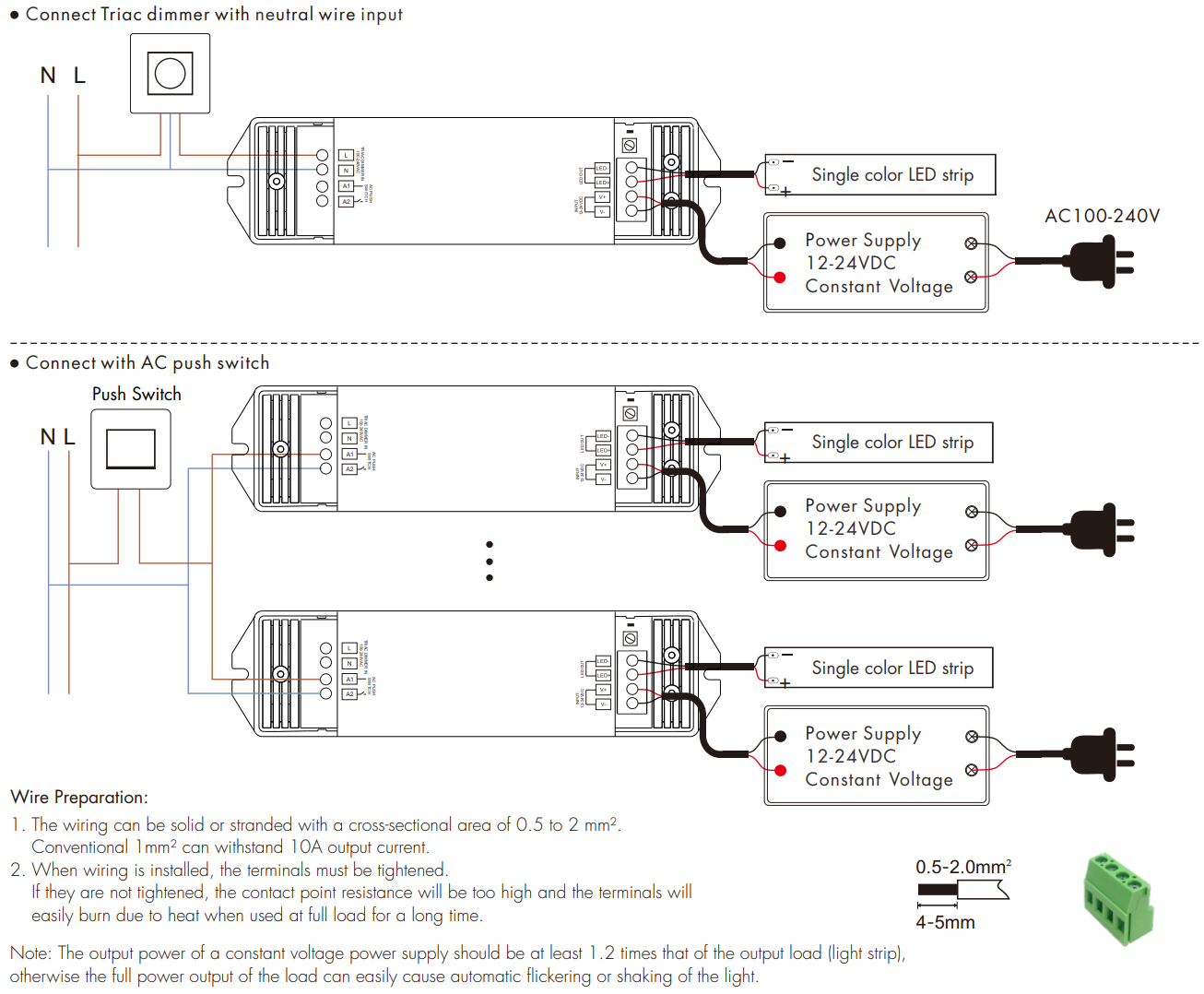

● Connect with external AC push switch to achieve on/off and dimming function.
