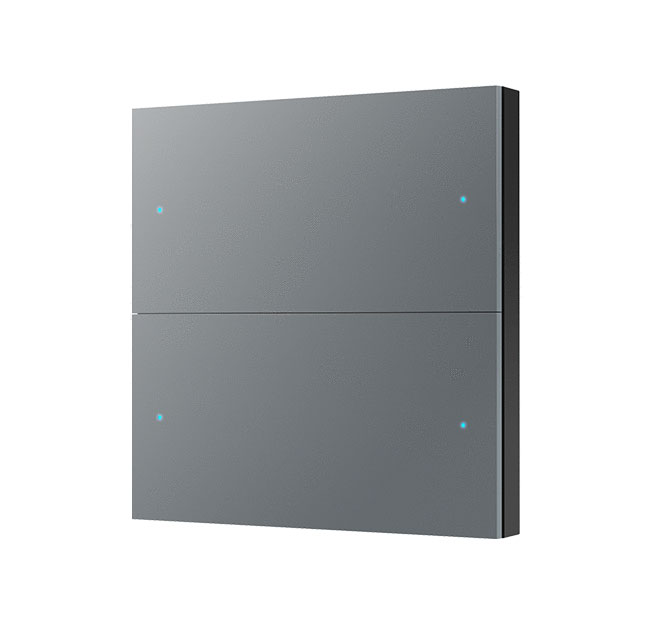

DALI bus power supply 4 Button DALI Wall Swith Panel PK4-DB

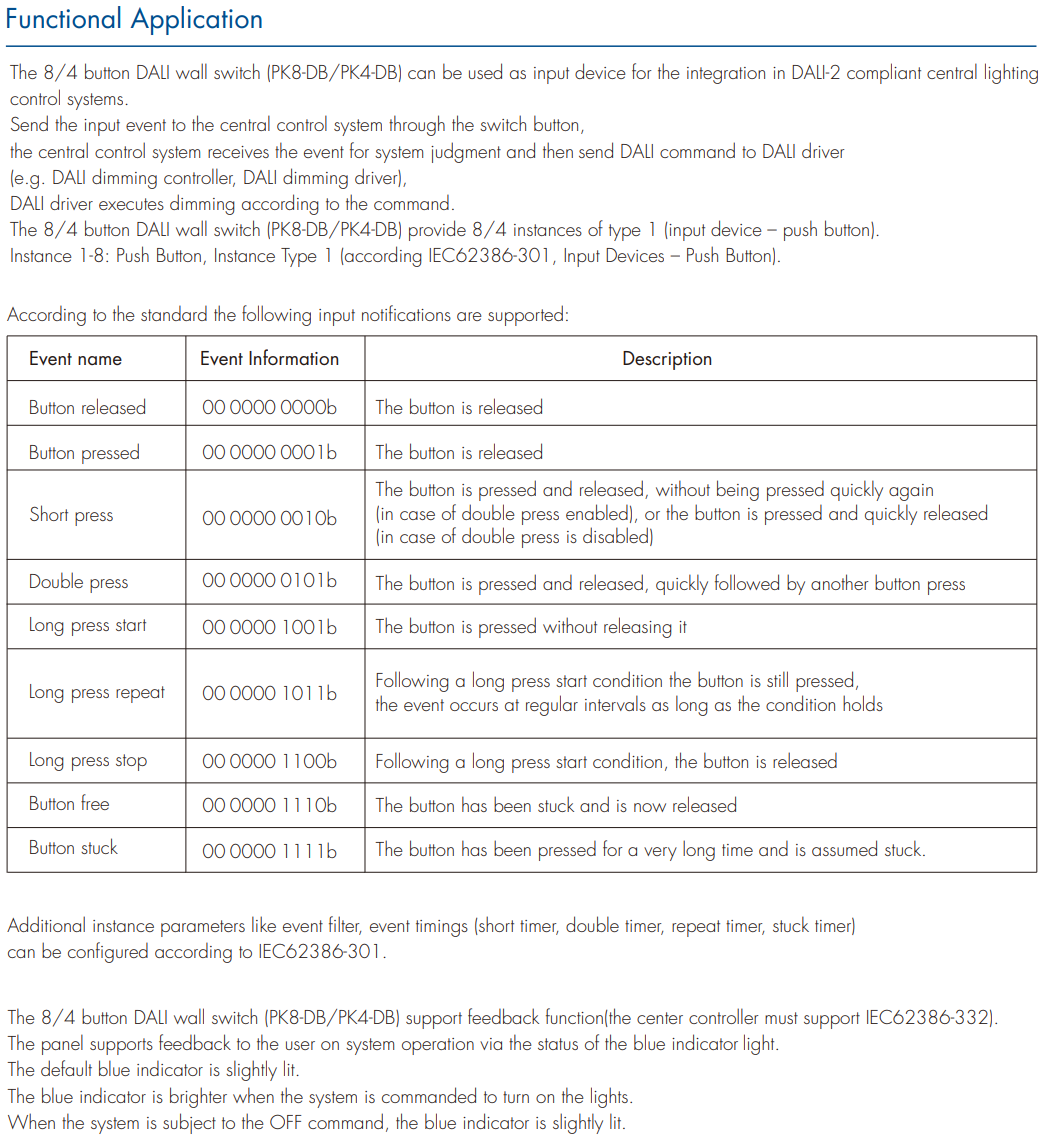

â—� DALI-2 input device with 8/4 push buttons according to IEC62386-101, 103, 301, 332.
â—� Suitable for integration and in combination with DALI-2 compliant central control units.
â—� Easy configuration via DALI-2 compliant central controller USB interface.
â—� Multimaster capable, multiple modules can be installed on the DALI-line.
â—� Supports feedback functionality, each button have blue LED indicator.
â—� Powered by DALI bus.

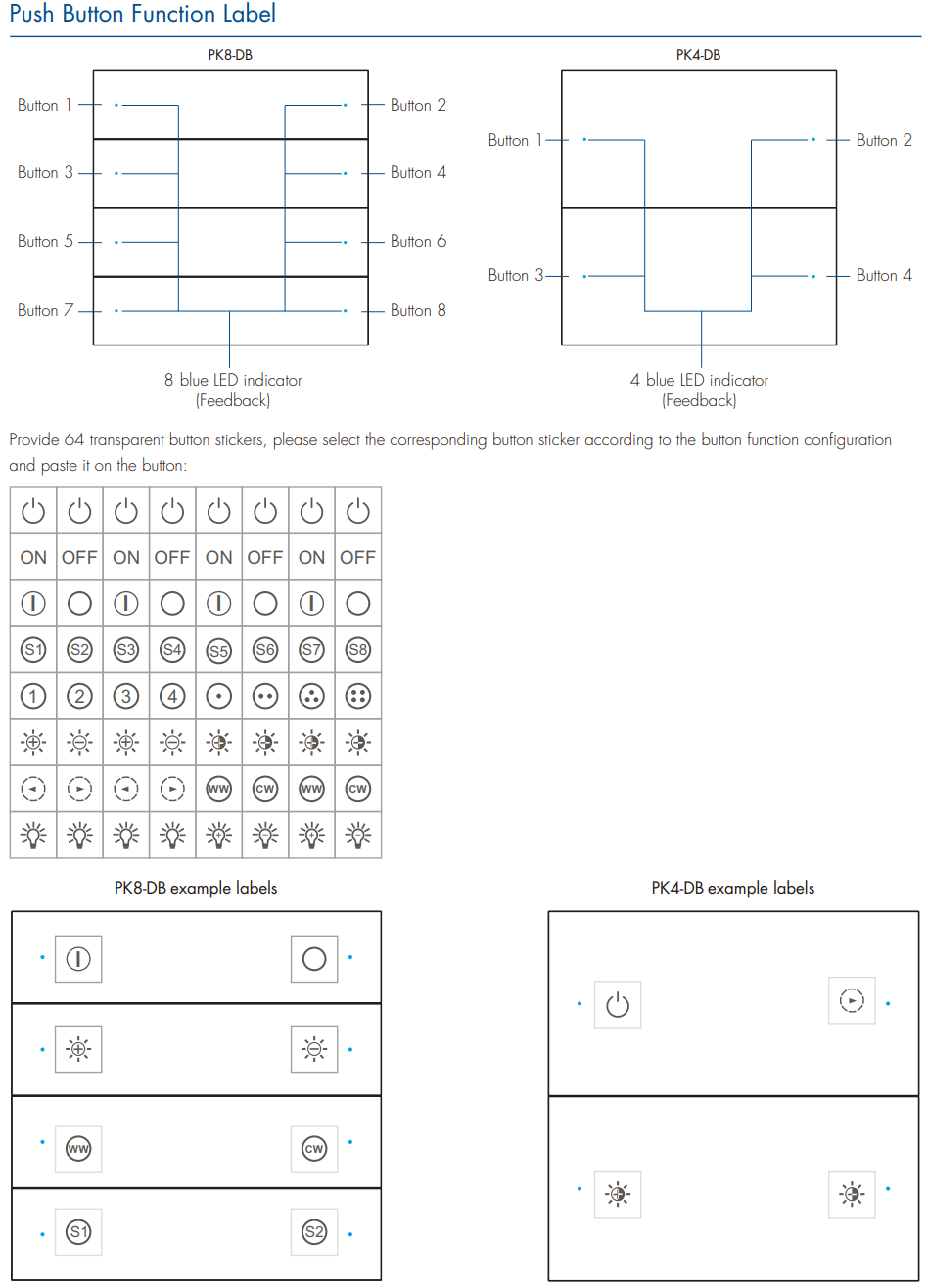

â—� Provide a variety of button stickers,
which can flexibly define the functions of each button.
Button lable: ON/OFF, ON, OFF, scene, brightness+/-, color temperature+/-,etc.
