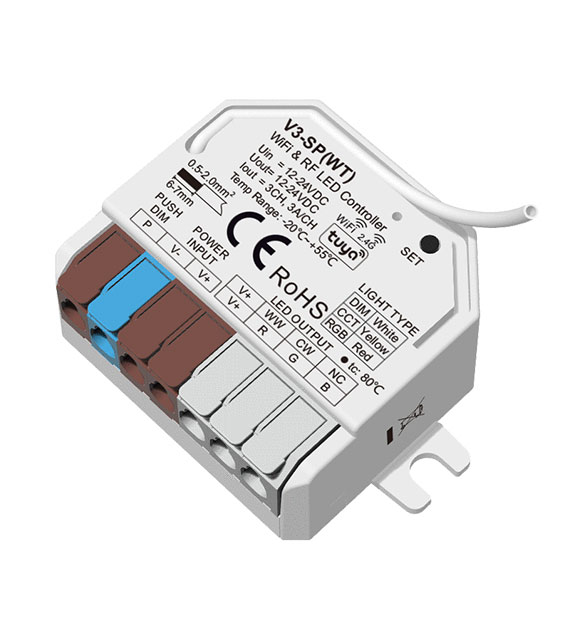

3CH*3A 12-24VDC WiFi & RF CV Controller V3-SP(WT) (Tuya App)
WiFi & RF 3 CH Constant Voltage LED Controller
● 3-in-1 function, for RGB, color temperature or single color LED strips.
● Tuya Smart APP cloud control, support on/off, brightness adjust,
delay turn on/off light, timer run and scene edit function.
● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie
and Xiaodu smart speakers.
● Match with RF 2.4G remote controller optional.
● User need set light type before Tuya smart APP network connection
and match RF remote of the same light type.
● Each V3-SP(WT) controller can also work as WiFi-RF converter,
then use Tuya smart APP to control one or more RF LED controller
or RF LED dimming driver synchronously.
● Connect with external push switch to achieve on/off, and brightness,
color temperature, RGB color adjustment function.
● Built-in 10 dynamic modes when controlling RGB light, including jump and fade.
● Light on/off fade time 3s selectable.
● Reverse/Over-heat protection.
_01.png)

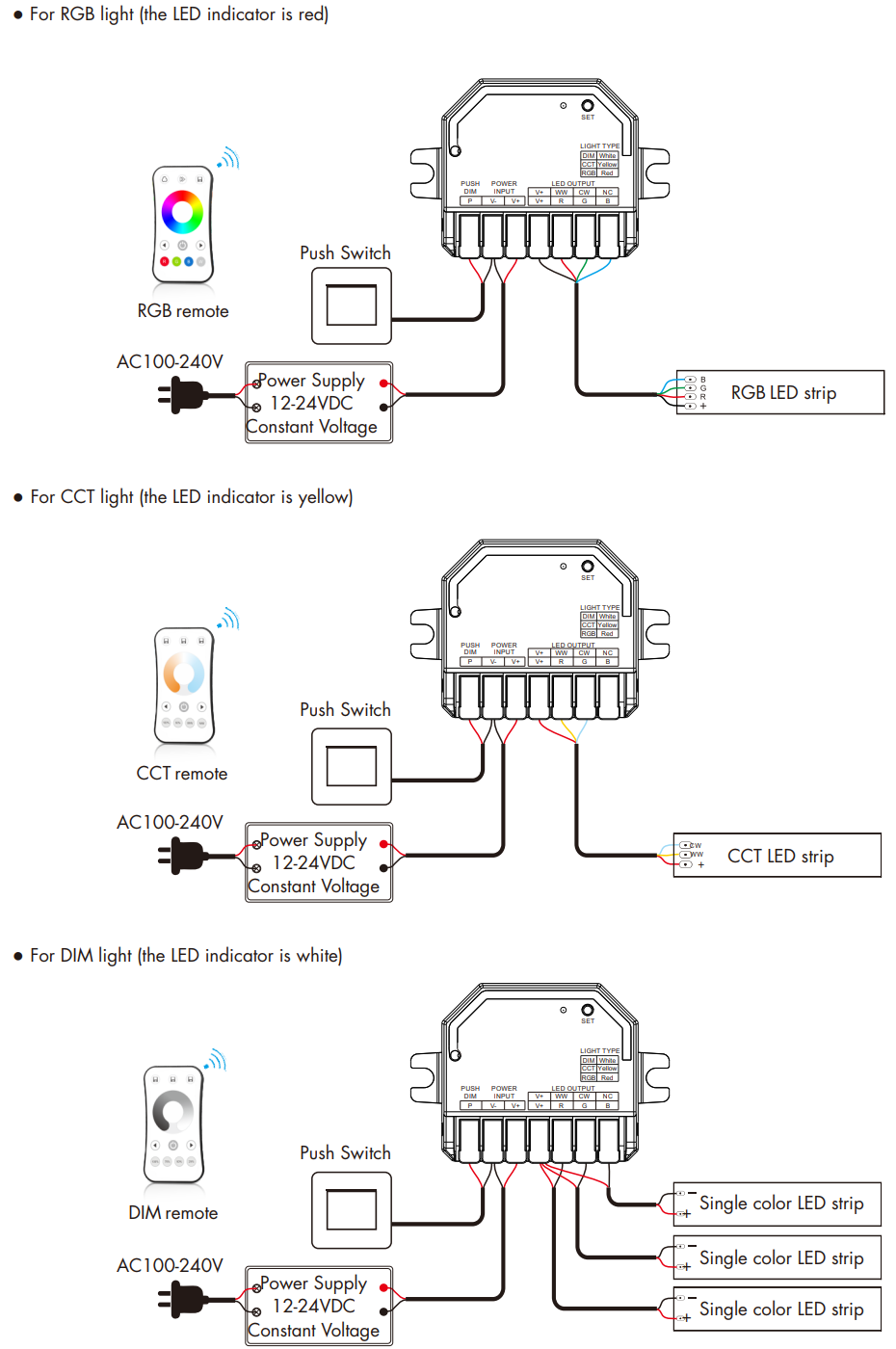

Wiring Diagram
_02.png)
