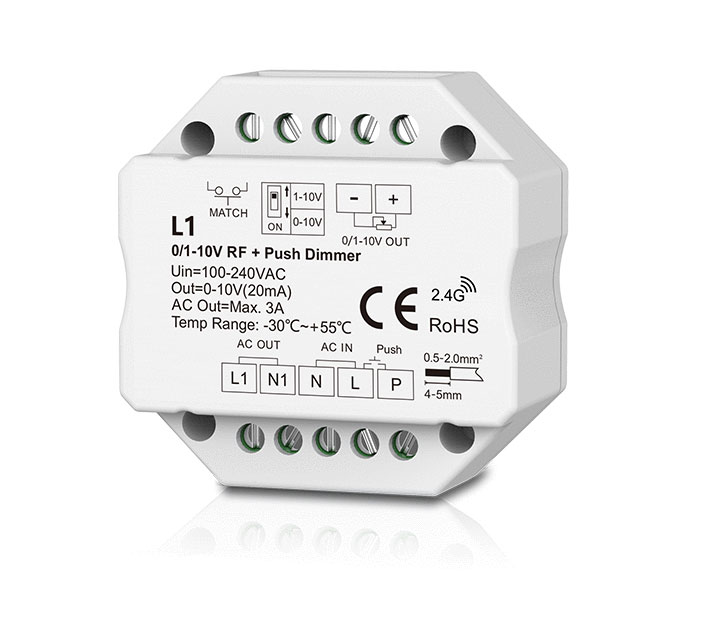

RF to 1 Channel 0/1-10V Dimmer L1
â—� 0/1-10V RF or AC push dimmer, 1 channel output.
â—� Output 1 channel 0/1-10V signal, connect with 0/1-10V dimmable driver.
â—� High voltage AC input, high voltage AC relay output, with zero-crossing detection.
â—� 0-10V or 1-10V output selectable by DIP switch.
â—� 256 levels 0-100% dimming smoothly without any ash.
â—� Compatibility with RF 2.4G single zone or multiple zone dimming remote control.
â—� Connect with external push switch to achieve on/off and 0-100% dimming function.
â—� Light on/off fade time 3s selectable.
â—� High-inrush specification relay.
â—� Easy to be placed in standard wall junction box behind a push switch.
