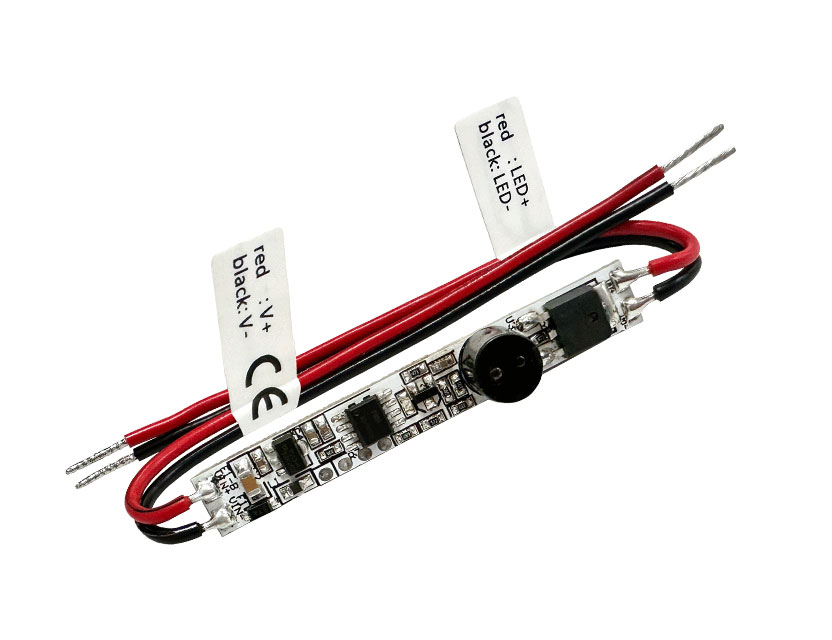

12-24VDC Hand Sweep Sensor Switch E1-B
â—� Hand sweep sensor switch, connected directly to the low voltage LED strip.
â—� When hand sweep, the strip turn on gradually. When hand sweep again, the strip turn off gradually. When hold hand for more than 2 seconds, adjust the brightness.
â—� Max 4A output current, max output power 96W@24V.
â—� Output PWM frequency: 2000Hz.
â—� Generally installed in the aluminum lamp strip housing.
â—� 3M paste in the bottom of the PCBA make easy installation and security.
â—� Low cost and high stability.
â—� Widely used in table lamps, bedroom lamps, wardrobe lights, etc.
