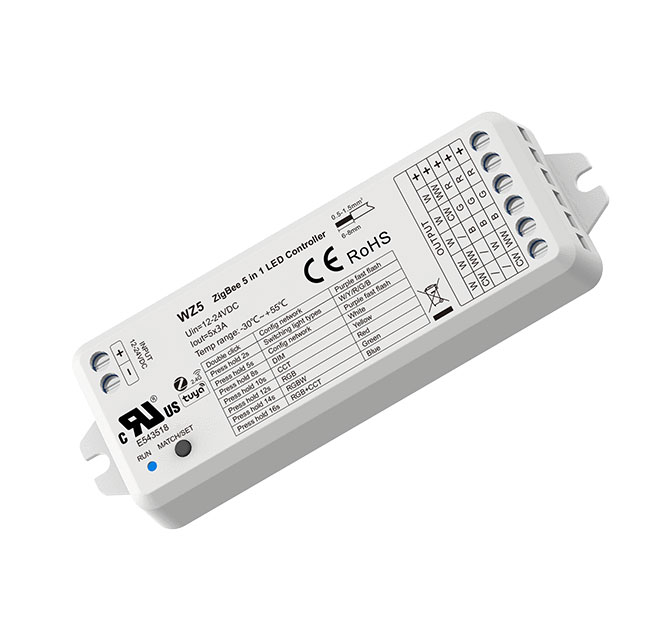

5CH*3A 12-24V ZigBee & RF 5 in1 CV Controller WZ5 (UL Certified) (Tuya App)
● 5 in 1 function, used for control RGB, RGBW, RGB+CCT,
color temperature or single color LED strip.
● Tuya smart APP cloud control, support on/off, RGB color,
color temperature and brightness adjust, delay turn on/off light,
timer run, scene edit and music play function.
● Philips HUE APP control by connect with Philips HUE bridge.
● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie
and Xiaodu voice assistant.
● Match with RF 2.4G remote control optional.

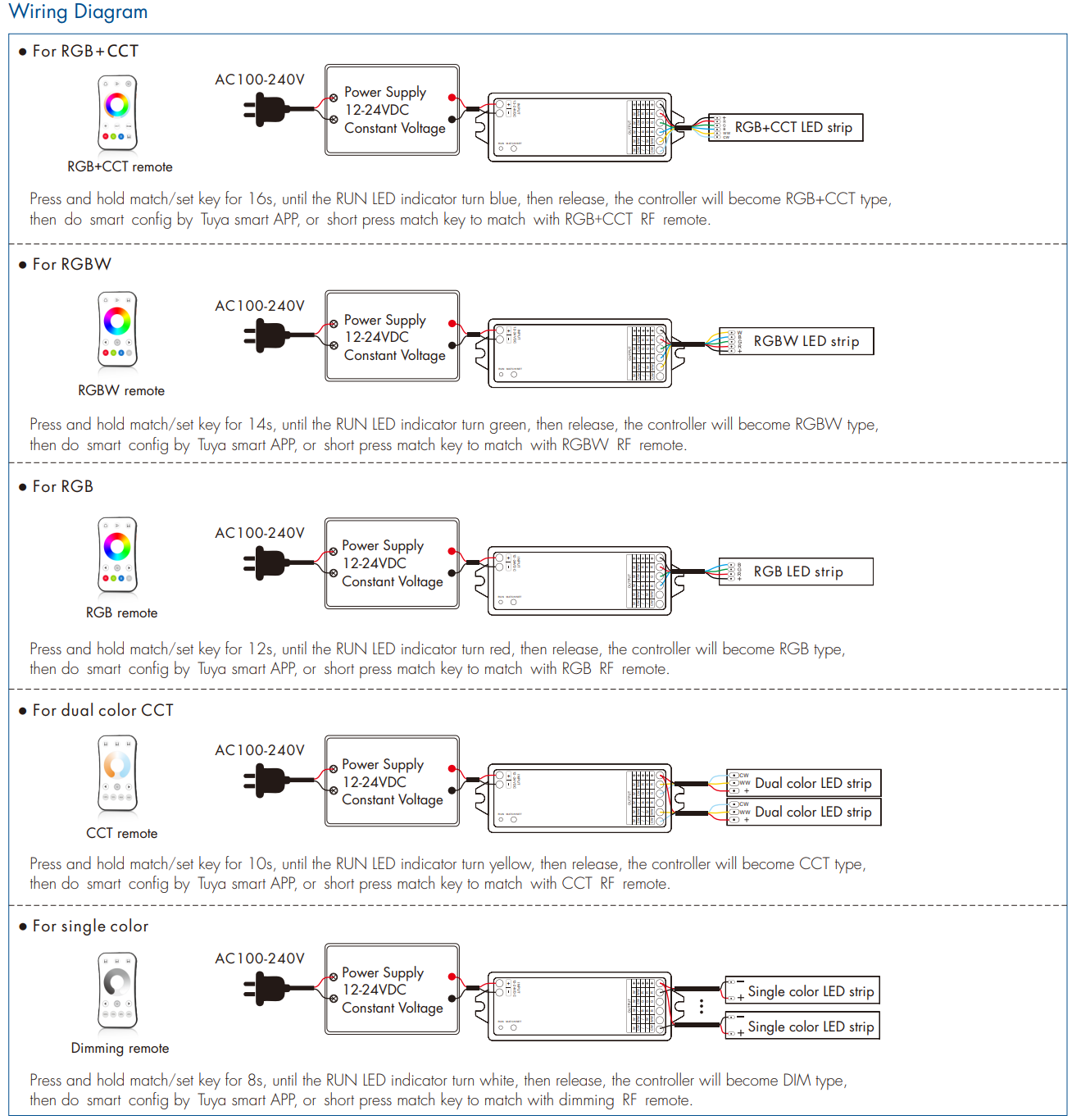

● User need set light type by press key before Tuya smart APP network connection and
match RF remote of the same light type.
● Each WZ5 controller can also work as ZigBee-RF converter, then use Tuya smart APP
to control one or more RF LED controller or RF LED dimming driver synchronously.
● Light on/off fade time 3s selectable

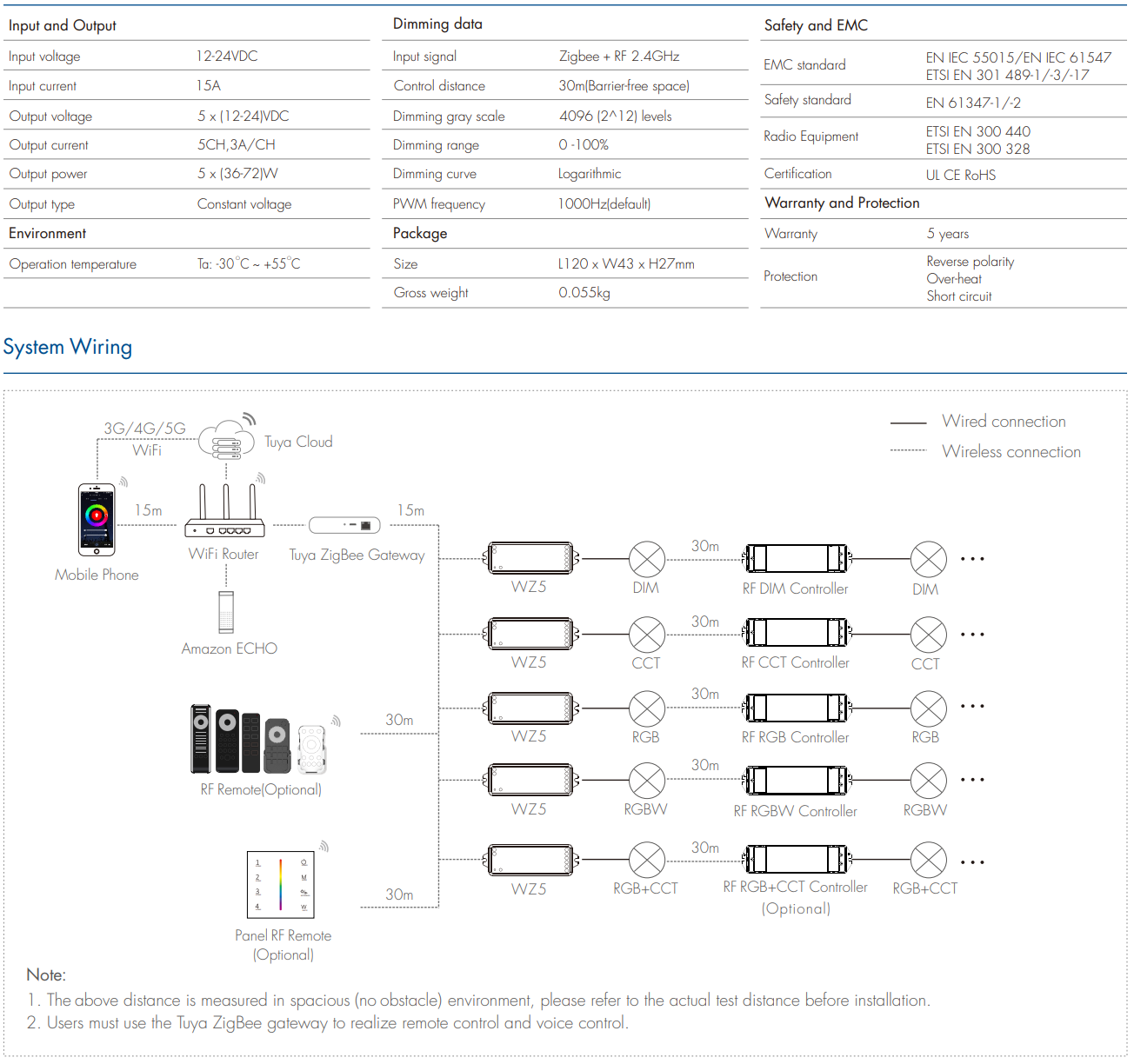

Technical Parameters
