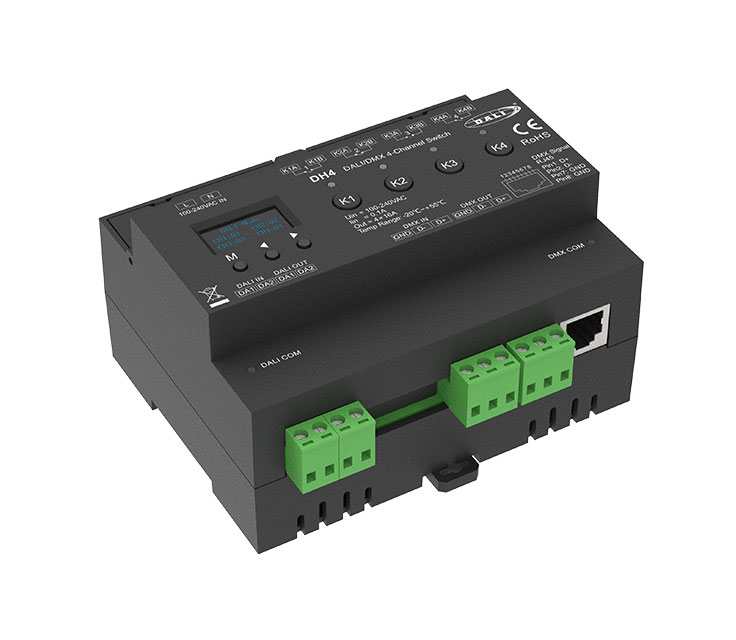

DALI/DMX 4-Channel Switch DH4
â—� 4 DALI address, 4 channel 16A dry contact mains rated relay switch output.
â—� OLED display screen, via button setting two work mode: DALI mode, DMX mode.
â—� DALI address can be manually assigned and shown in digital display or automatically assigned by DALI master.
â—� DALI-2 certified, in accordance with DALI standard protocol IEC 62386-101,102, 208 and in compliance with DALI products from other international incorporation.
â—� Comply with the DMX512 standard protocols.
â—� RDM function can realize intercommunication between DMX master and decoder.
â—� Supports manual switching of individual channels.
â—� High-inrush specification relays (single pole, normally open).
â—� Zero cross switching function.
â—� Can operate as: 4 individual channels (4 × 1) 2 sets of 2 channels (2 × 2) 1 sets of 4 channels (1 × 4)
