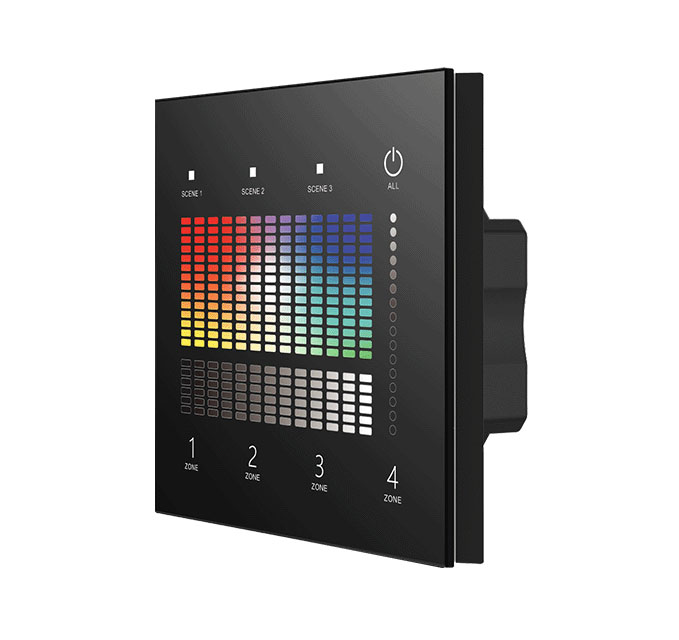

4 Zone RGBW 100-240VAC Wall Mounted Touch DALI Panel TD4-4SH
● 4 zone control, 4 DALI address, support DT6 dimming, DT8-TC color temperature, DT8-RGB or DT8-RGBW.
● Can be used as a power supply for DALI bus.
● Conforms to DALI standard protocol IEC 62386, compatible with other brands of DALI products.
● Enable to set DALI address by encoding switch, support unicast, group and broadcast mode,
also support slave DALI address assignment.
● Enable to set DALI address by encoding switch, support unicast, group and broadcast mode,
also support slave DALI address assignment.
● Match with RF 2.4G four zone remote control optional.
● Ultra sensitive high strength glass touch panel with touch color slide.
● Smooth and accurate color adjustment by touching the color slide.
● 3 scenes memory.
● When touch the key, the LED indicator will flash.
● White & Black glass panel available
4 zone 1-5 color DALI master touch panel series is used to control DALI DT6/DT8 devices and can be widely applied in schools, retail, hospitals and offices.
