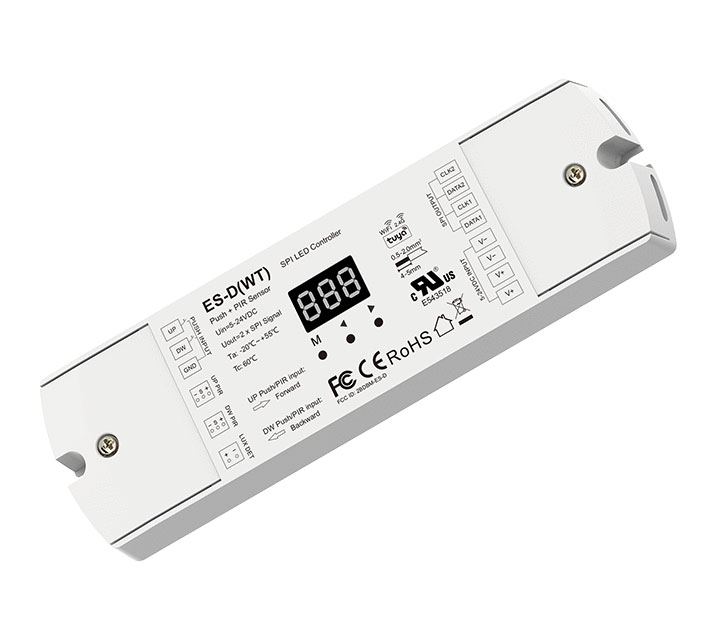

5-24VDC WiFi & RF Dual PIR Sensor + Dual Push Button SPI Controller ES-D(WT)
● Dual PIR sensor + dual push button input RGB or white light SPI controller features daylight sensor.
● Tuya smart APP cloud control and voice control, support for Amazon Alexa, Google Assistant,
Tmall Genie and Xiaodu smart speakers.
● Two groups same SPI(TTL) signal output, drive 28 kinds IC digital RGB or white LED strip,IC type and R/G/B order can be set.
Compatible ICs:TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903,UCS2909, UCS2912,
WS2811, WS2812, TM1829,TM1914A, GW6205,GS8206,GS8208,LPD6803, LPD1101, D705, UCS6909,
UCS6912, LPD8803,LPD8806, WS2801, WS2803, P9813, SK9822, SM16703P.

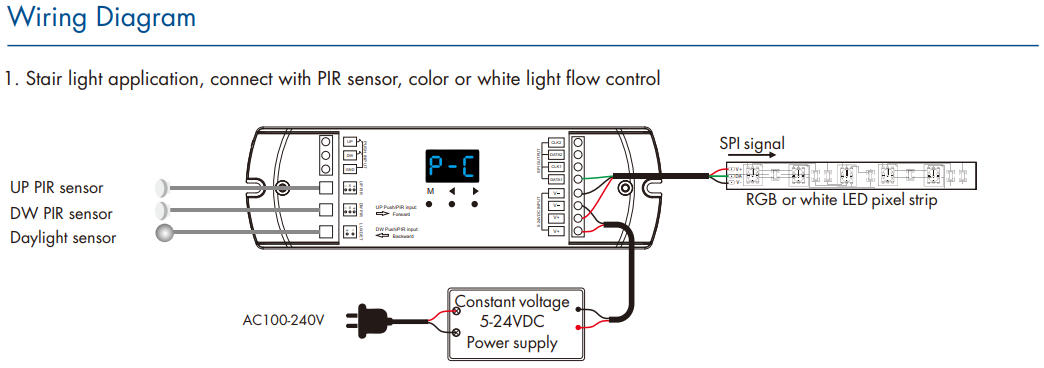

● When applied to stair light, supports four output modes: color ow, white ow, color step, white step.
● Sequential switching control is realized when multiple SPI controllers are connected to a single self-resetting push switch button.
● Multiple light colors and change types are selectable with adjustable speed and brightness.
● APP painted segment color mixing: full color lling, color pencil segment painting, eraser segment light off.
● APP custom rich dynamic effects: 44 default and 10+ custom dynamic scenarios, 16 variations.
● 3 APP music rhythms.
● Match with RF 2.4G remote control optional.
