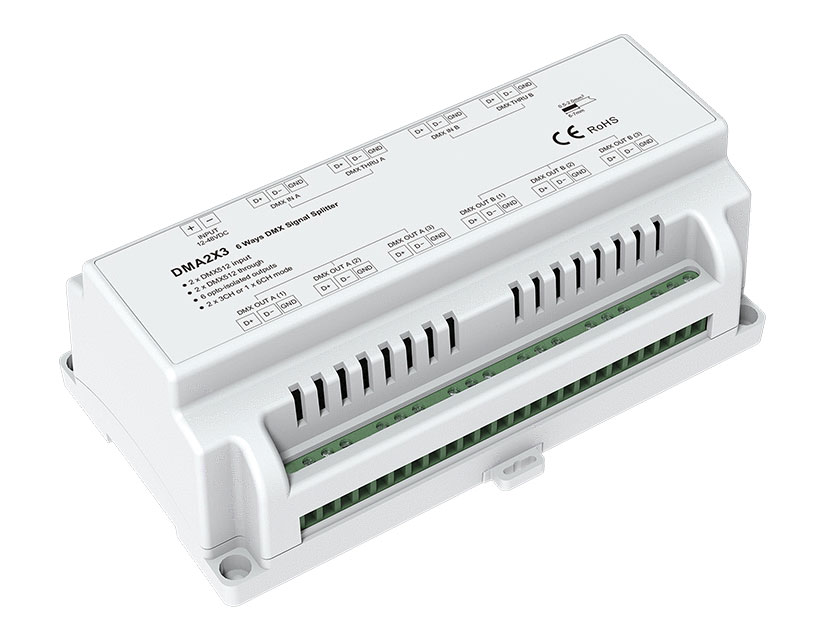

12-48VDC 6 Ways DMX Signal Splitter DMA2X3

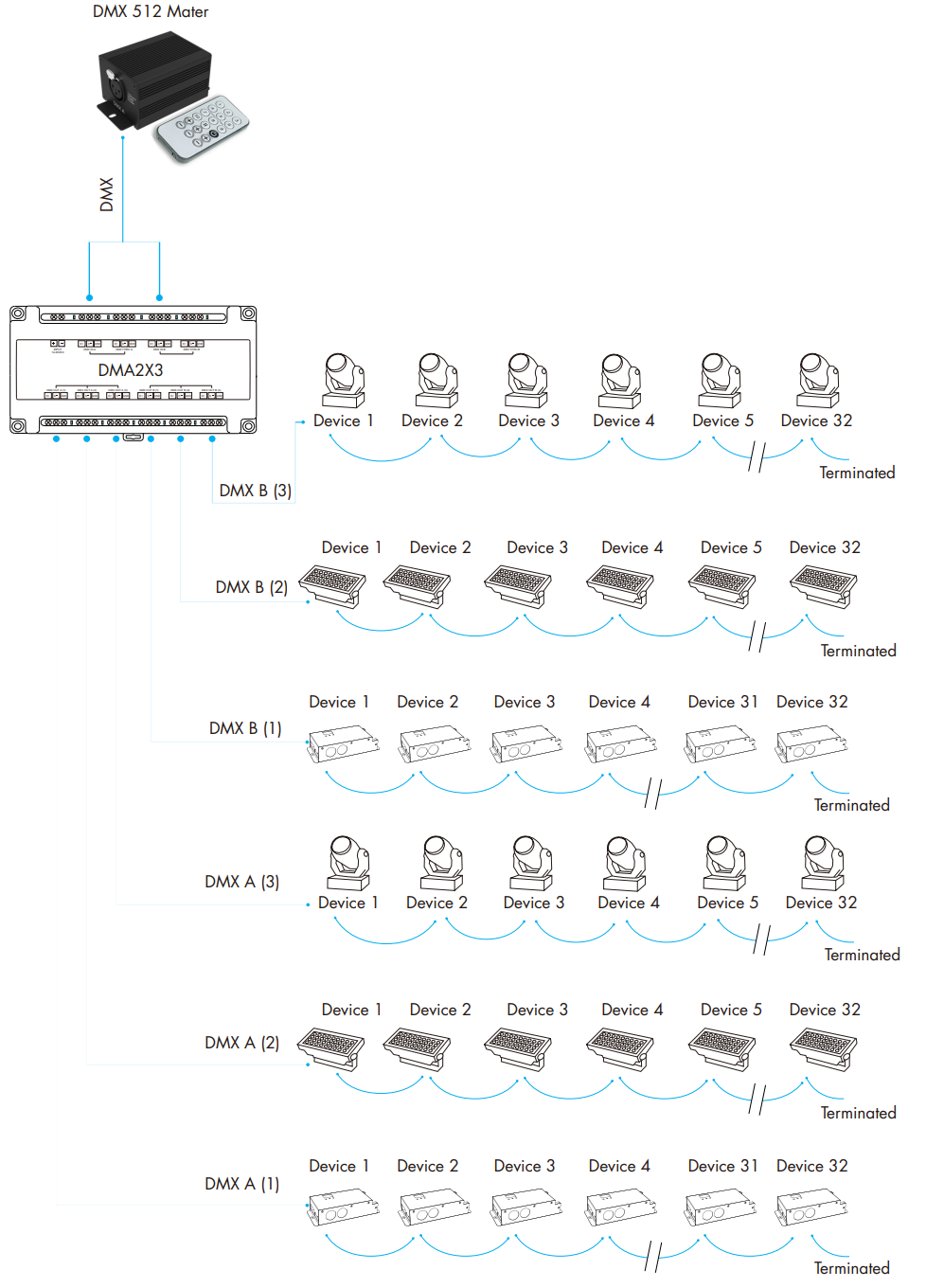

â—� Two DMX512 signal input, repeat 2 x 3 DMX512 signal output, each allowing for 32 DMX devices to be connected.
â—� Dedicated to amplify, distribute and insulate the signal that comes from the lighting system equipment when it is connected to the bus of DMX512(or RS-485).
â—� Photo-electricity insulation between input and output terminals, output terminals among channels.
â—� Input isolated from outputs to 500VAC, 1000VDC.
â—� Outputs are isolated from each other to 500VAC, 1000VDC.
â—� Input and outputs are ture RS-485 rated, and no microprocessors are used for maximum reliability.
â—� 9 LEDs indicate power in, DMX in and DMX output status.
