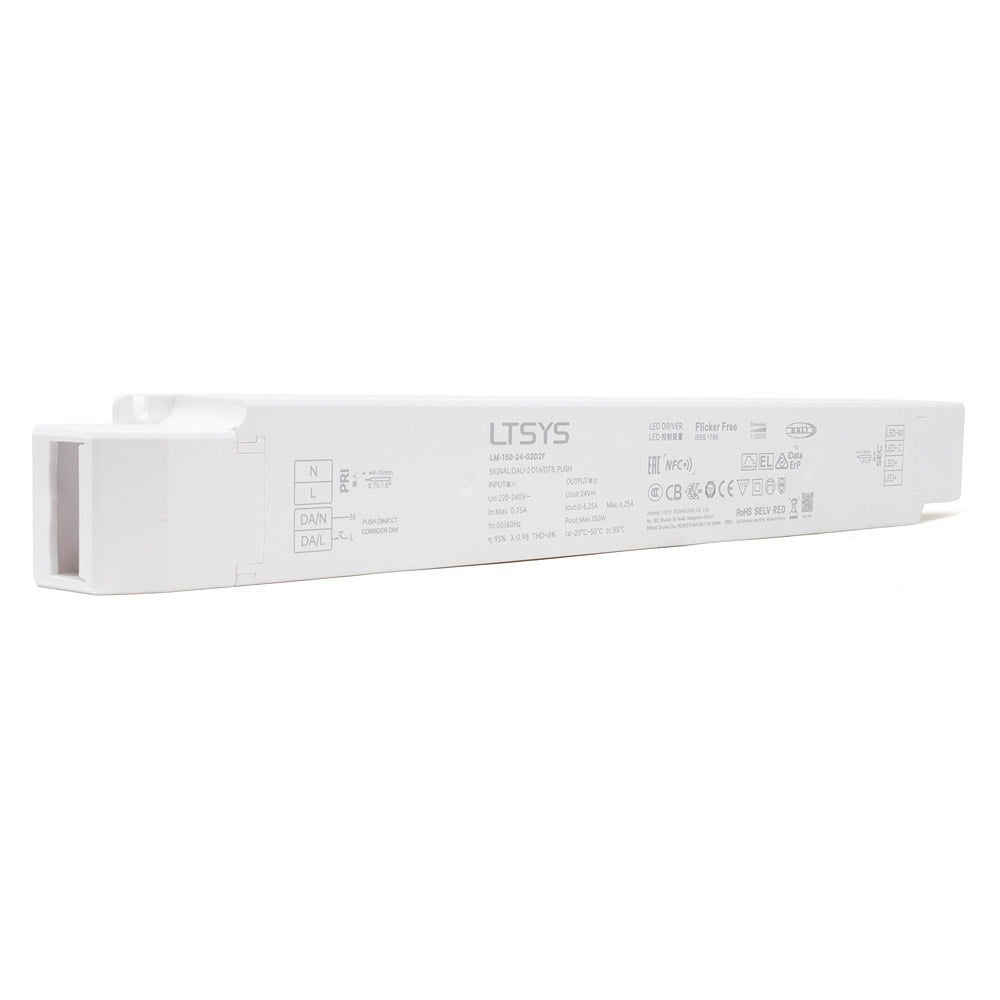

LTECH LM-150-24-G4K3 Tunable White DALI-2 DT8 Driver
The LTECH LM-150-24-G4K3, also referred to as the LTECH LM 150 24 G4K3, is a professional-grade constant voltage DALI-2 DT8 LED driver designed for tunable white LED strip lighting applications. With a maximum output power of 150W and support for 24V systems, it provides precise control over colour temperature and brightness, making it ideal for commercial, residential and architectural lighting projects.

Featuring advanced NFC programming, the driver allows installers to configure dimming curves, brightness limits and colour temperature settings between 1000K and 10000K using a compatible mobile application. Its constant power design ensures consistent illumination across the entire tunable white range.

Flicker-Free Dimming and Advanced Performance
The LTECH LM-150-24-G4K3 delivers exceptionally smooth, flicker-free dimming down to 0.01%, helping create comfortable lighting environments in hospitality, retail, office and residential settings. A high power factor above 0.98 and low standby power consumption of less than 0.5W ensure efficient operation and compliance with EU ERP requirements.

Reliable Protection for Professional Installations
Designed with a flame-retardant polycarbonate housing and intelligent protection against overheating, overload, short circuit and open circuit faults, the LTECH LM 150 24 G4K3 offers long-term reliability. The tool-free clamshell design and detachable end caps also provide additional flexibility for bespoke LED lighting installations.

Specifications
150W Constant Voltage Tunable White Driver (24V)
Built-in DALI-2 DT6/DT8, Push DIM/CCT, and Corridor DIM/CCT interfaces
NFC fast programming via mobile app for parameters and DALI templates
Constant power design for consistent brightness across colour temperatures
Colour temperature range configurable from 1000K to 10000K
0-100% deep dimming range, down to an ultra-low 0.01%
Flicker-free high-frequency exemption level (IEEE 1789 standard)
Tool-free clamshell housing design with detachable end caps
Overheat, overload, short circuit, and open circuit protection with automatic recovery
5 Year Warranty
