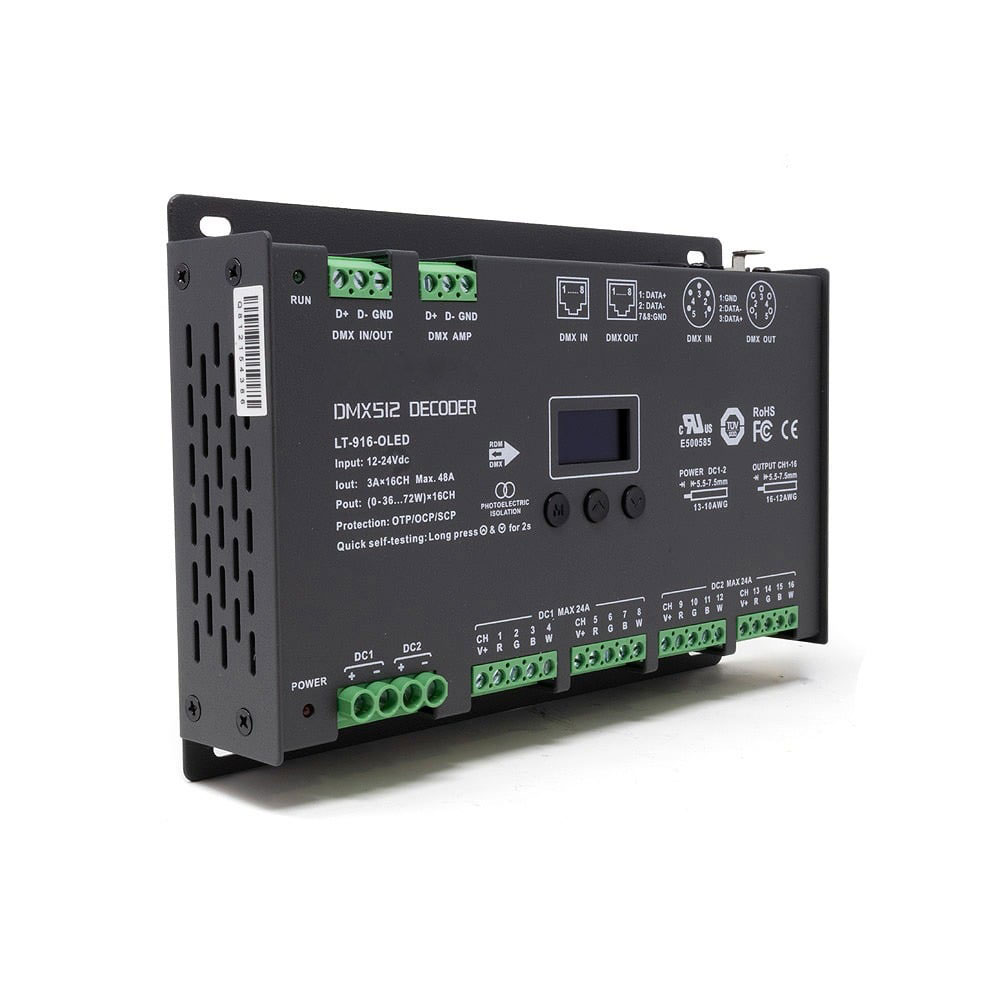

The LT916OLED 16-Channel Constant Voltage DMX512 decoder is an installation-grade solution designed for high-density, multi-channel lighting projects. It is specifically optimized for sophisticated commercial environments, including large-scale architectural lighting, hotel installations, restaurant displays, and professional retail environments.

As a key component of the LTECH professional lighting control series, the LT916OLED combines high-power output with advanced digital functionality. The integrated RDM protocol facilitates bi-directional communication, allowing installers to remotely detect devices, configure DMX addresses, and monitor parameters through an RDM master console or Wi-Fi editor.

To ensure flicker-free, precision light output, the unit provides selectable dimming parameters including 8-bit or 16-bit resolution. These advanced settings are vital for environments where high-definition illumination quality is essential, such as film or TV production studios.

The system features a robust, photoelectric-isolated design across its 5-pin XLR, RJ45, and green terminal interfaces, maximizing signal integrity and noise immunity over extended cable runs. The green terminal block further incorporates a signal amplifier function, greatly simplifying complex, daisy-chained wiring topologies.

Operational parameters are efficiently managed via the built-in OLED screen and intuitive touch button interface:

Precise DMX address configuration (1-512)
Adjustable PWM output frequency
Advanced dimming curve adjustments (Standard, Linear, LOG, or 0.1-9.9 Gamma)
PWM resolution selection (8-bit or 16-bit)
Power-on state management
Quick system self-testing functionality
The LT916OLED requires a compatible 12-24V DC power supply to support its 16-channel output. By connecting this decoder to a master DMX control source, you achieve professional, flawless control over your constant voltage LED strips and associated lighting arrays.

Specifications
16 channel constant voltage DMX/RDM decoder
12-24V DC input voltage
Maximum 45A total output current (3A per channel)
High-contrast OLED display with tactile touch button operation
Standard RDM remote device management protocol
Supports standard, linear, LOG, and custom 0.1-9.9 dimming curves
16-bit or 8-bit output resolution configurations
Triple DMX interface options: 5-pin XLR, RJ45, and green terminal blocks
Integrated signal amplifier function
Comprehensive short circuit, over-current, and overheat protection
5 Year Warranty
