The SP636E Bluetooth LED dimmers are designed for single-color, addressable LED strips, allowing for dynamic white lighting effects, seamless dimming, music synchronization, and easy app control, making it easier to customize and program your LED Lighting.  The light dimmer utilizes SPI signals to control ICs on the LED strips, allowing for individual or group control of the LEDs to create fantastic lighting effects. It features 10 dynamic and 5 music effects, allowing you to edit them to adjust brightness, speed, direction, and effect length. Under the music effects, the lighting will change automatically in sync with the music beats. With its easy-to-use interface and intuitive design, the SPI dimmer makes controlling your single-color digital LED lights effortless, allowing you to create exciting light shows and stunning effects with just a few finger taps.

Features:
1. Support App control, 2.4G touch remote control and 2.4G touch 86-type control panel;
2. Supports up to 1800 channels of single-wire RZ LED driver ICs;
3. Built-in a variety of pure white light dynamic effects and music effects, with multiple adjustable parameters;
4. Capture music through the phone microphone, player streamer and on-board microphone;
5. Support effect collection;
6. With a variety of ON/OFF animation effects;
7. With ON/OFF timer function;
8. Support OTA firmware upgrade.

APP：
1.SP636E supports App control for iOS and Android devices.
2.Apple devices require iOS 10.0 or higher, and Android devices require Android 4.4 or higher.
3.You can search “BanlanX” in App Store or Google Play to find the APP, or scan the QR code to download and install.

Operations:
Open the App, click the icon in the top right corner of the home page to add device;
Click the icon in the upper right corner of the App to enter the settings page, where you can modify the device name, set the timings, set the on/off effect, OTA firmware upgrade, etc.

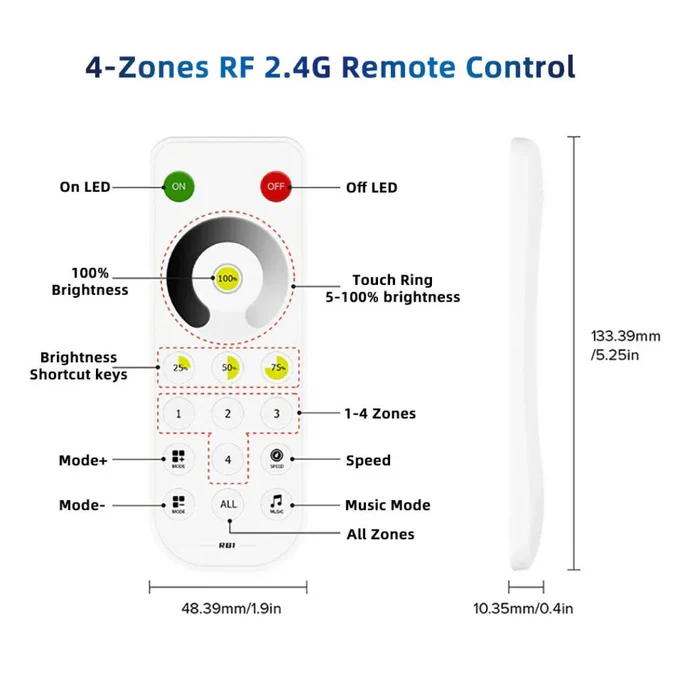

The 2.4G touch remote control models (RB1 and RC1) matched with SP636E are as follows:

Support one-to-many control, one remote control can control multiple controllers.
Support many-to-one control, each controller can bind up to 5 remote controls.
Support unified control and 4-zones control.

Specifications:

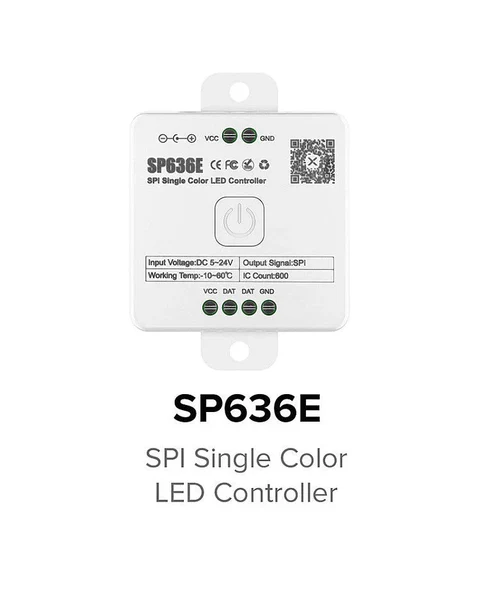

Model: SP636E

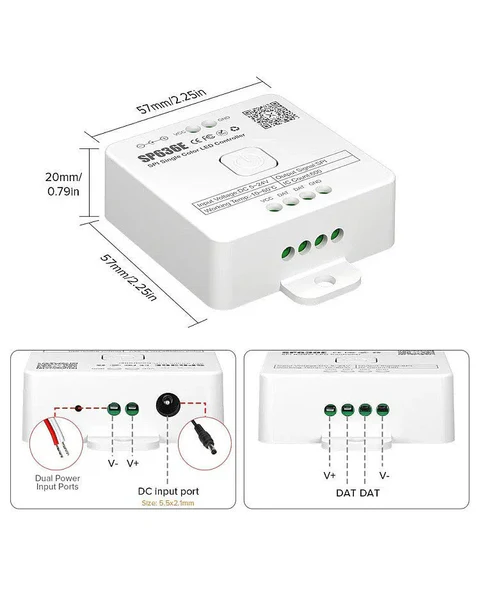

Size: 57*57*20mm(L*W*H)
Working Voltage: DC5-24V
Output Signal: SPI
Supports Quantity Of ICs: 600PCS
Input Ports: 5.5*2.1mm DC Input Port / V+ & V- Ports

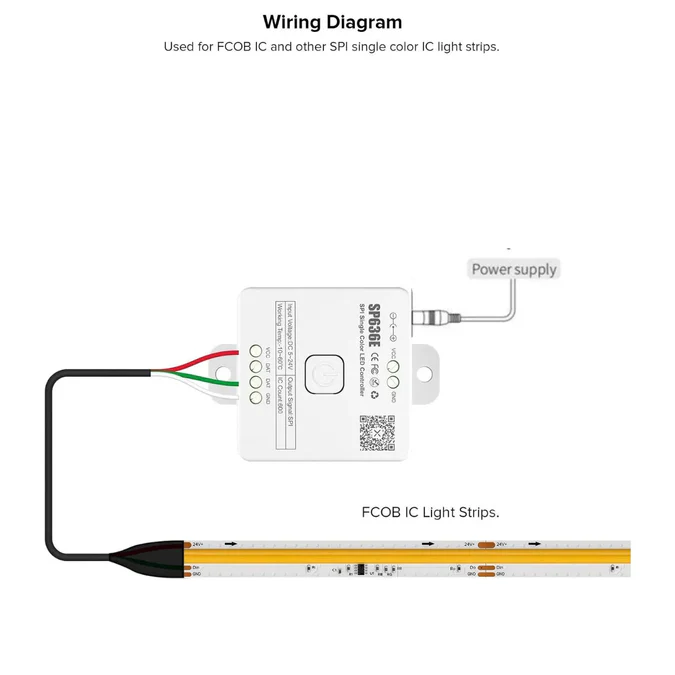

Output Ports: VCC, DAT, GND
Compatible With WS2811, SK6812, SM16703, WS2812B, WS2813, WS2814, WS2815, etc
Built-in 5 Music Effects, 10 Dynamic Effects
Supports Brightness, Speed, Direction, And Effect Length Adjustment
10 Dynamic Effects Include Chasing White Light Effect
Brightness Adjustable: 20%, 40%, 60%, 80%, 100%
5 Music Synchronisation Effects
Supports Microphone, Player Streaming, And On-board Microphone For Music Capture
Supports Dynamic Effect Collection And Collection List Loop
Support Custom Effects
Supports Working With Monochrome IC Strip Lights
APP Control Via Bluetooth / 2.4G RF Remote Control
APP Name: BalanX
Mobile Operating Systems: Android 4.4 Or Above And IOS 10.0 Or Above
Firmware Upgradeable: YES
Working Temperature: -10-60℃
Certifications: CE, ROHS
2 Years Warranty
