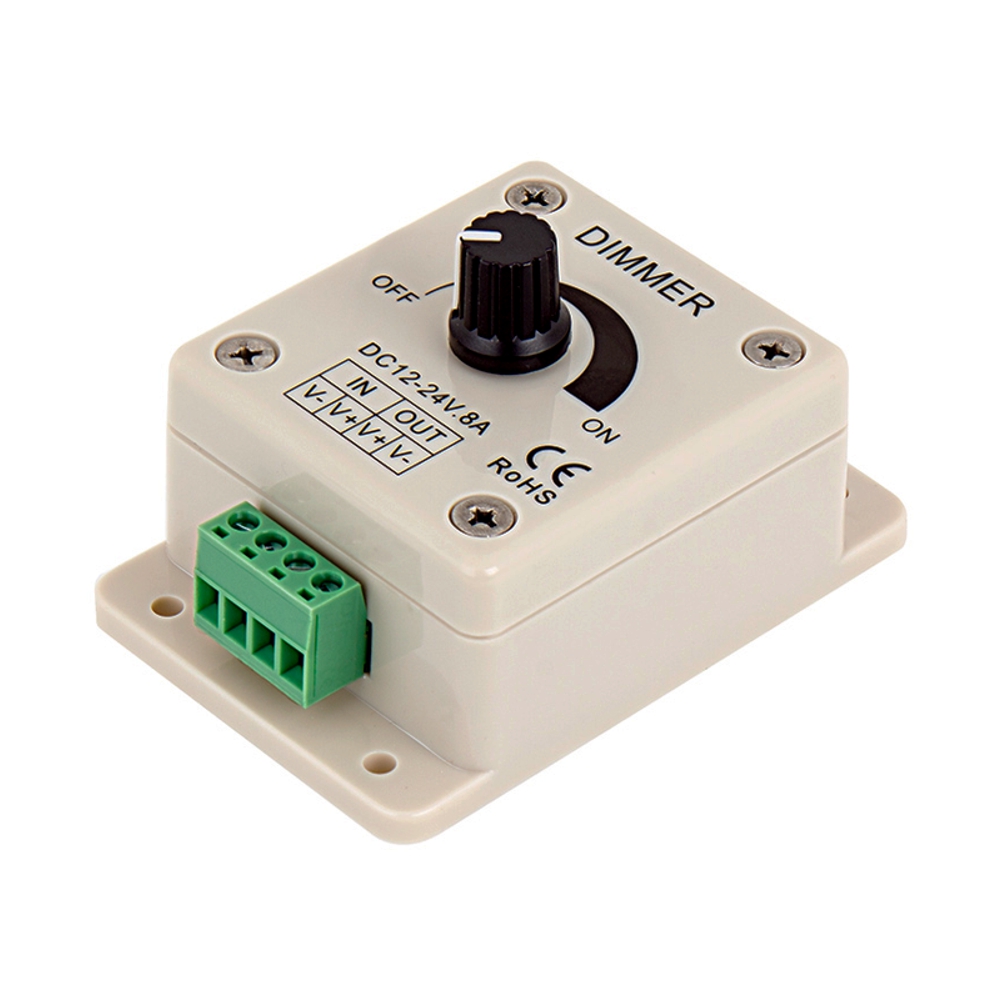

LED Dimmer 12V & 24V DC 8A - Single Color LED Dimmer
SKU:
LDK-8A
Our LDK-8A is a universal single-color LED dimmer switch that can dim most 12V DC or 24V DC LED products from 0%-100% using a Pulse Width Modulation(PWM) circuit knob control. The plastic housing has screw terminals for power in and out connections with a maximum load of 8 Amps.
Product Details:
Reliable and economical single-color LED dimming switch
Surface mount with screws or adhesive tape
12-24 VDC
CE
2-year warranty
Specifications
Amps: 8 Amps
Amps Per Channel: 8 Amps/CH
Control Type: Knob
Input Connection Type: Screw Terminal
Input Voltage: 12 VDC, 24 VDC
Max Wattage: 96 Watts
Number of Channels: 1 Channel
Voltage: 12-24 VDC
Warranty: 2 Year
