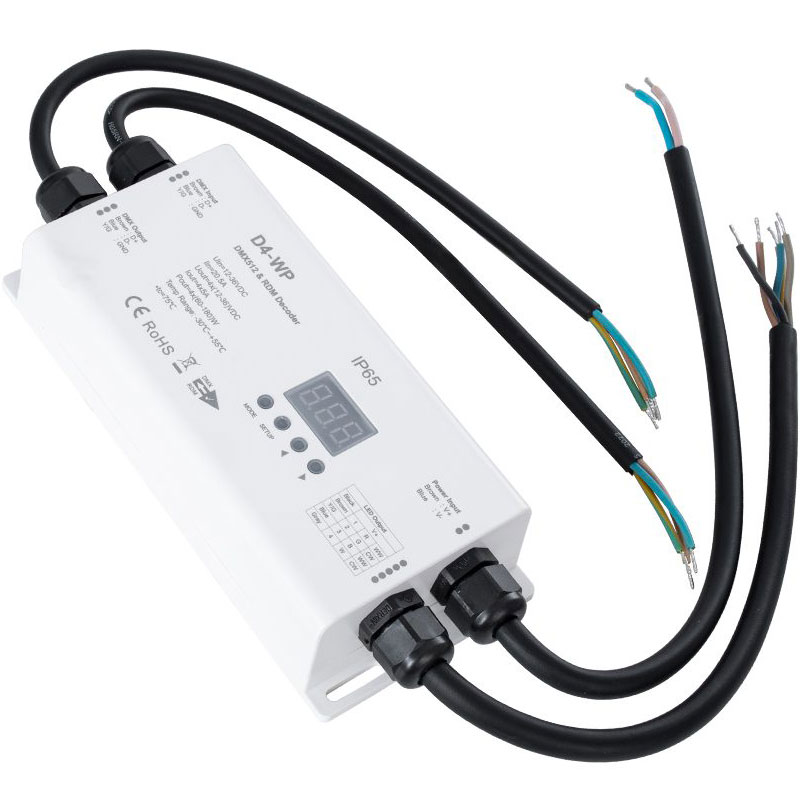

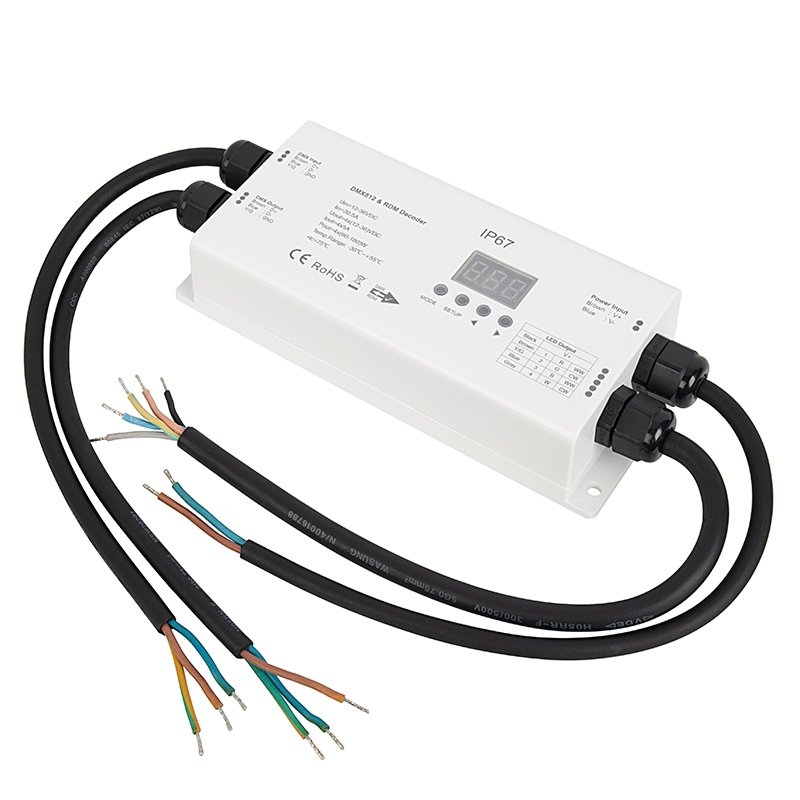

DS series DMX512 Decoder allows LED lights to be connected to and controlled with DMX systems. with a fully waterproof case, the device can be used both indoor or outdoor with out the need for a protective enclosure. Digital display with simple buttons make it easy to control LEDs like strip lights or landscape fixtures. Select modes and assign addresses for up to 4 channels, 5 amps per channel, with a maximum power of 60-watts at 12 VDC or 180-watts at 36 VDC.

Pair with a Waterproof LED Strip.

Product Details:
1-4 channel configuration
Wire length on each end: 10.5"
DMX IN and OUT
DMX address selction LED display
60W-180W
12 VDC, 24 VDC, 36 VDC
Rated IP67 for wet locations
RoHs, CE certificate
5 year warranty

Specifications
Ambient Operating Temperature:-30 to 55 °C (-22 to 131 °F)
Amps:20 Amps
Amps Per Channel:5 Amps/CH
Certifications/Compliance:CE
Control Type:DMX512, RDM Decoder
DMX In/Out:Pigtail
Input Connection Type:Pigtail
Input Voltage:12 VDC
IP Rating:IP67
Number of Channels:4 Channels
Voltage:12-36 VDC
Warranty:5 Year
