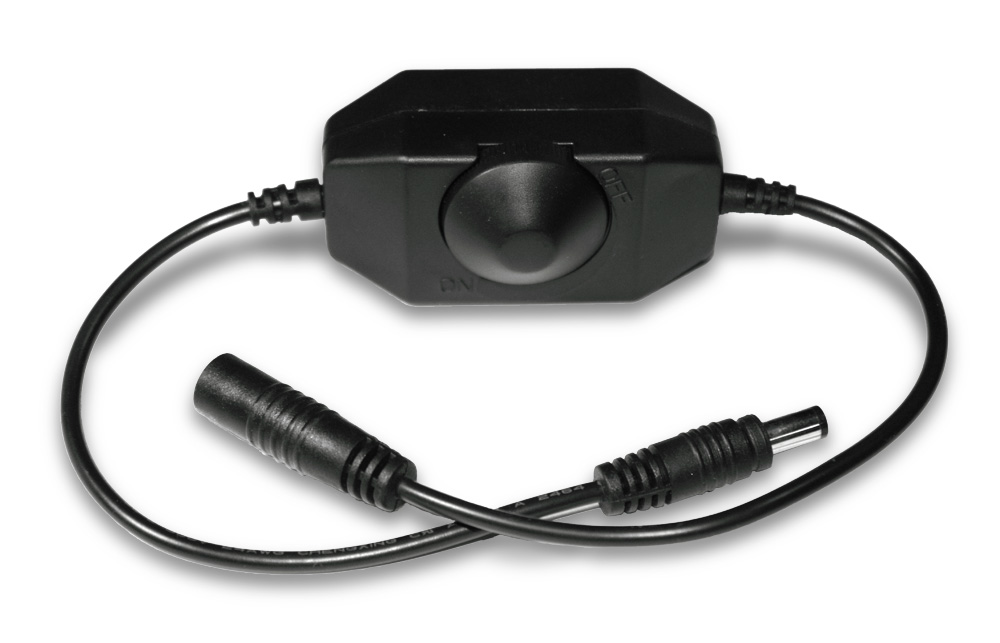

12-24 VDC Inline Dimmer - Single Color LED Dimmer - Black / White
SKU:
LDP-2A
This universal single-color LED dimmer can dim any 12-24 VDC LED products from 0 to 100% using Pulse Width Modulation (PWM) circuit knob control. It has male and female 5.5mm barrel power connectors for connecting in line with our CPS series power supplies. The maximum load is 2 amps. Available with black or white finish.
Specifications
Supply Voltage: DC 12-24V
Control Type: Knob
Max load current: 2 Amps
Input Connection Type: 5.5 mm x 2.1 mm DC Barrel
Output: 1 Channel
Output Power: 24 Watts
Function: Dim LED product from 0~100% using PWM with CPS series Power Supplies
Product size: (L)61x(W)33x(H)32mm
Net Weight: 30g
Working temperature: -20~60°C
