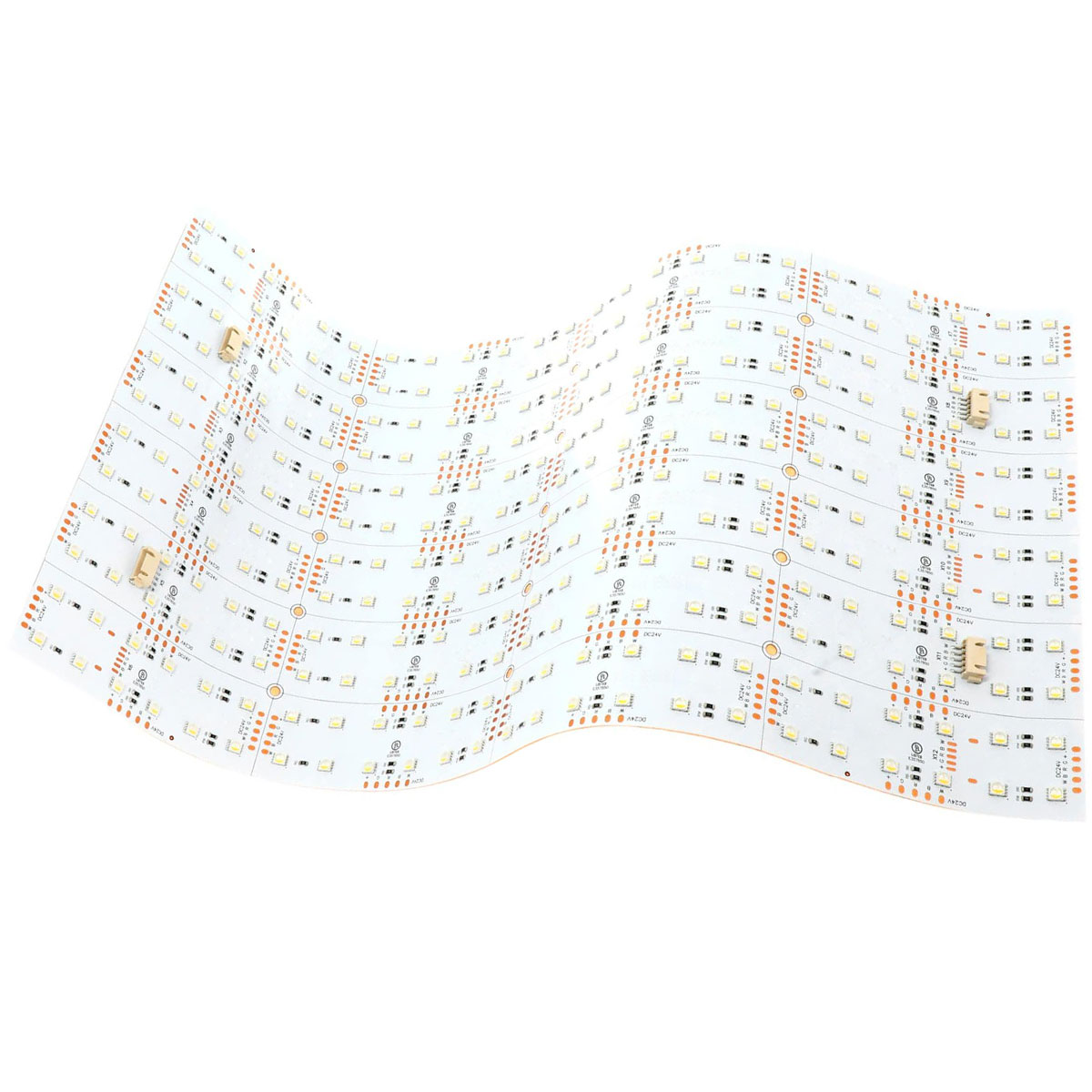

The RGBW LED Light Sheet is thin and flexible, making it easily customizable and adaptable for backlighting, light boxes, and signage. There are 24 segments per sheet. To customize, cut along the solid lines to shape as needed. Four on-board XH connectors simplify installation and allow for connecting segments using the included interconnect cable. A compatible controller can be used to select from a range of RGB colors or a single white CCT. With a 90+ high CRI, the sheet produces eye-catching displays with high-quality color rendering and saturation. For quick installation, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots. For enclosed installations, the sheet requires a minimum clearance of 30mm for proper heat management.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
Segment size: 4.72" x 1.57"
Max Run with Class 2 wiring: 1 sheet
Enclosed fixture rated 30 mm
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature: -20 to 60 °C (-4 to 140 °F)
Certifications/Compliance: UL Listed
CRI: 80+
Current Draw: 3.3 A
Dimensions: 18.9in x 9.5in
Dimmable: Yes
Dimmer Type: PWM
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail, XH 5-Pin Connector
IP Rating: IP20
LED Beam Angle: 120°
LED Chip Type: 5050 SMD
LEDs per Segment: 12
LED Lifetime: 50000 Hours
Max Run (Class 2): 1 Sheet
Operating Voltage: 24 VDC
Output Connection Type: XH 5-Pin Connector
Product Dimensions: 18.94″ x 9.50″ x 0.26″
Segment Size: 4.72 in. x 1.58 in. (120 mm x 40 mm)
Wattage: 80 Watts
