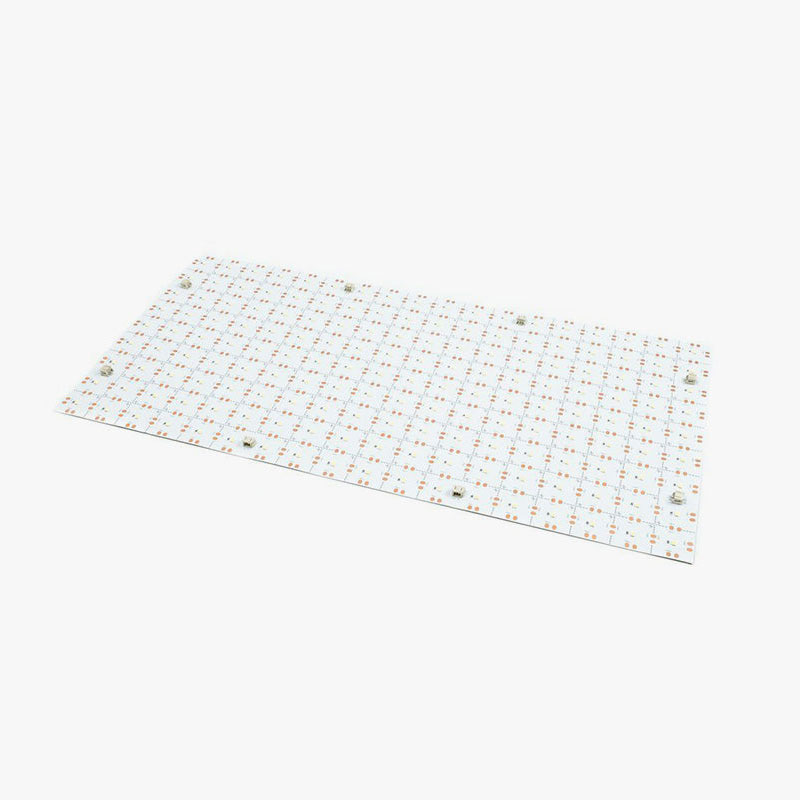

Arc™ - LED Light Sheet - Ultrabright Static White
dynamic Single Color Flexible LED Light Sheets are the perfect solution for a wide variety of lighting applications including; retail signage, back-lighting, and other decorative lighting for holidays, trade shows, and exhibitions. These versatile flexible LED light sheets can be cut in any direction along the cut lines, allowing you to cut pieces to the length or shape that you need.
Specifications
Adhesive Backing: Yes / 3M Adhesive
Cut Length: 0.78"x 0.78"(19.8mm x 19.8mm)
Dimensions: 18-15/16" (480mm) long x 9-1/2" (240mm) wide x 1/4" (6mm) thick
Estimated Lifespan: 50,000 hours
Input Voltage: 24VDC, Requires Power Supply
LED Quantity: 288 LEDs per sheet
Max Power Consumption: 60 Watts per sheet
Max Run Length: Maximum Run Length = 4 sheets. Use both sets of connectors when connecting multiple sheets.
CRI: >95
LED Color Options: Soft White 2700K, Warm White 3000K, Neutral White 4000K, DayWhite 6000K
Max Lumens: 6,300 Lumens per sheet
IP Rating: IP20 Indoor Use
Suitable Uses: Dry Location Only
Dimmable: Yes
Standards / Certifications: RoHS, UL Listed
Warranty: 1 Year
