These Blue, Flexible LED Light sheets from LED Technologies are part of our extensive range of Flexible panel lighting products. This Blue version features 392 x 2835 LED chips, producing an exceptional quality of bright Blue light. Each panel emits 32W of light which equates to 1,053 Lumens with a beam angle of 120 degrees. For larger projects, additional light sheets can be incorporated into your project by connecting them back to the LED Driver or an additional driver, each light sheet is 480mm x 240mm and requires a 24V Constant Voltage LED Driver that can be connected to any of the terminals using the starter cable (sold separately).

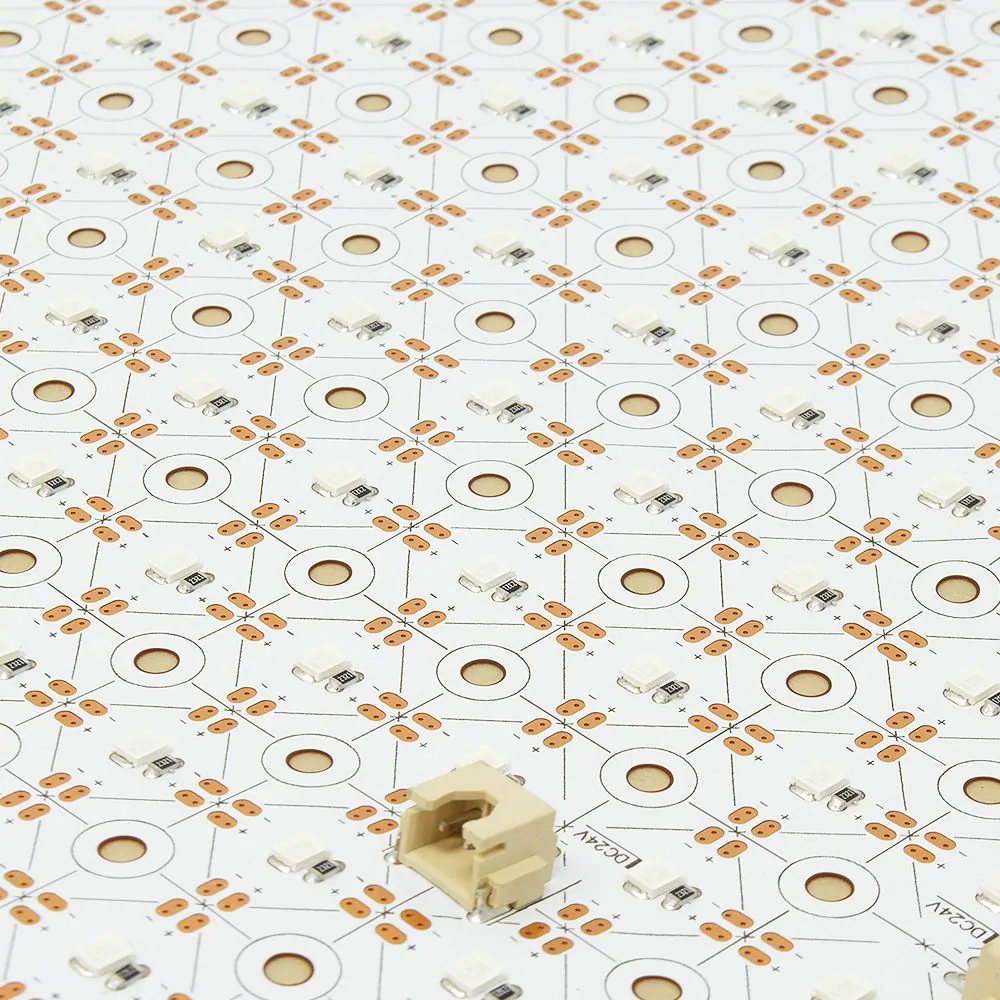

Link/power terminals can be found on all sides of the LED Sheet, enabling them to be connected together easily using the link cables. Our LED sheets can be cut along the marked cutting lines as required to enable you to install them into various shaped light boxes or for other special projects where a bright flexible light is required.

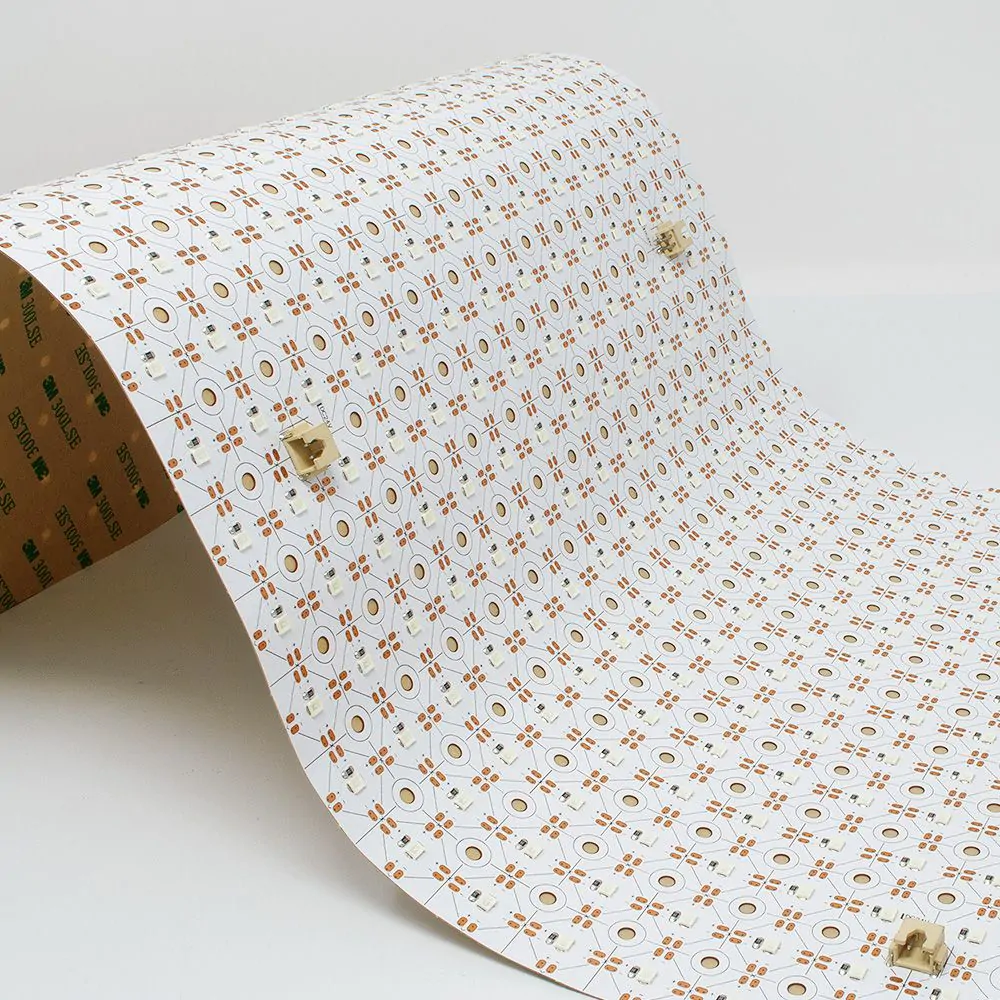

The light sheets are highly flexible allowing them to bend as required making this product ideal for backlighting curved areas, walls, reception desks, pillars, and similar shapes. The panels are energy-efficient and easy to install, making them suitable for any project that requires a bright flexible lighting solution.

For further information about our Flexible LED panel Lighting solutions and professional control equipment, please contact our technical sales team by phone, email, WhatsApp or via live chat on our website.

Features:
Can be cut to size as required
Very flexible
120° beam angle
392 x 2835 LED's at 32W / sheet

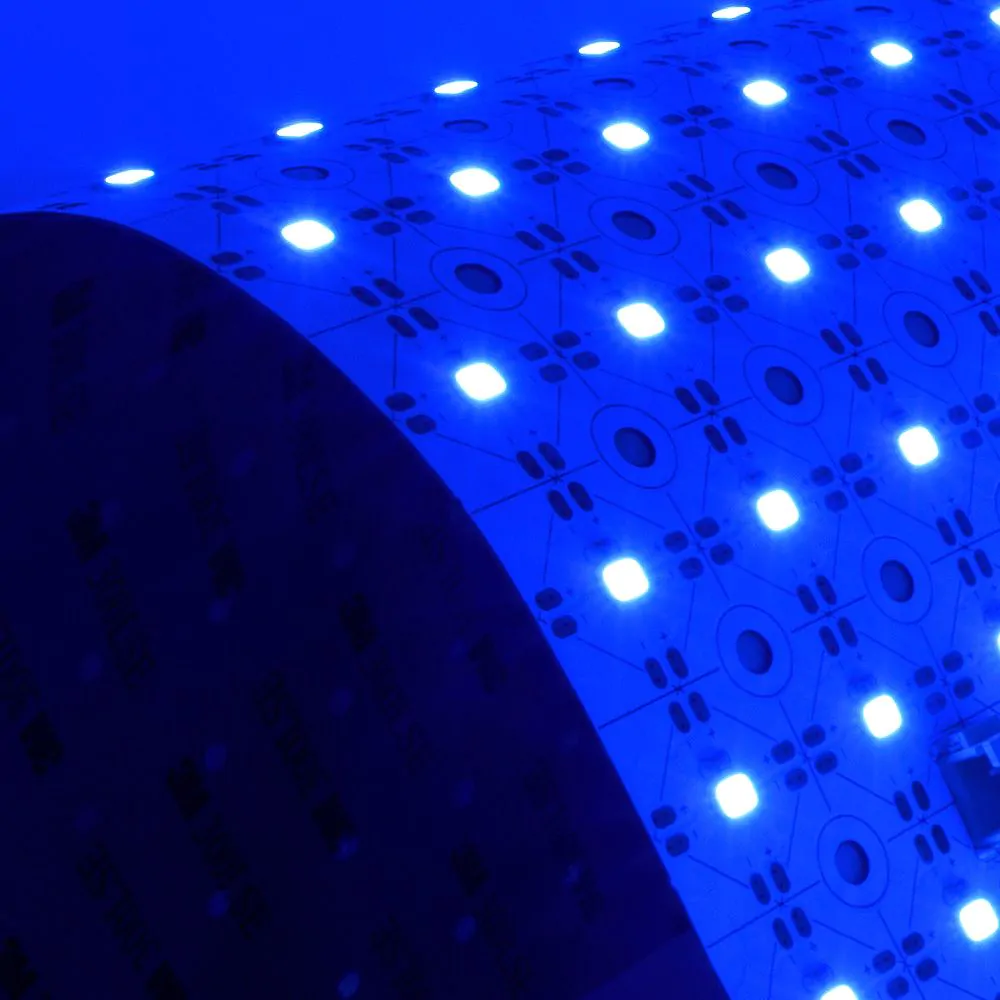

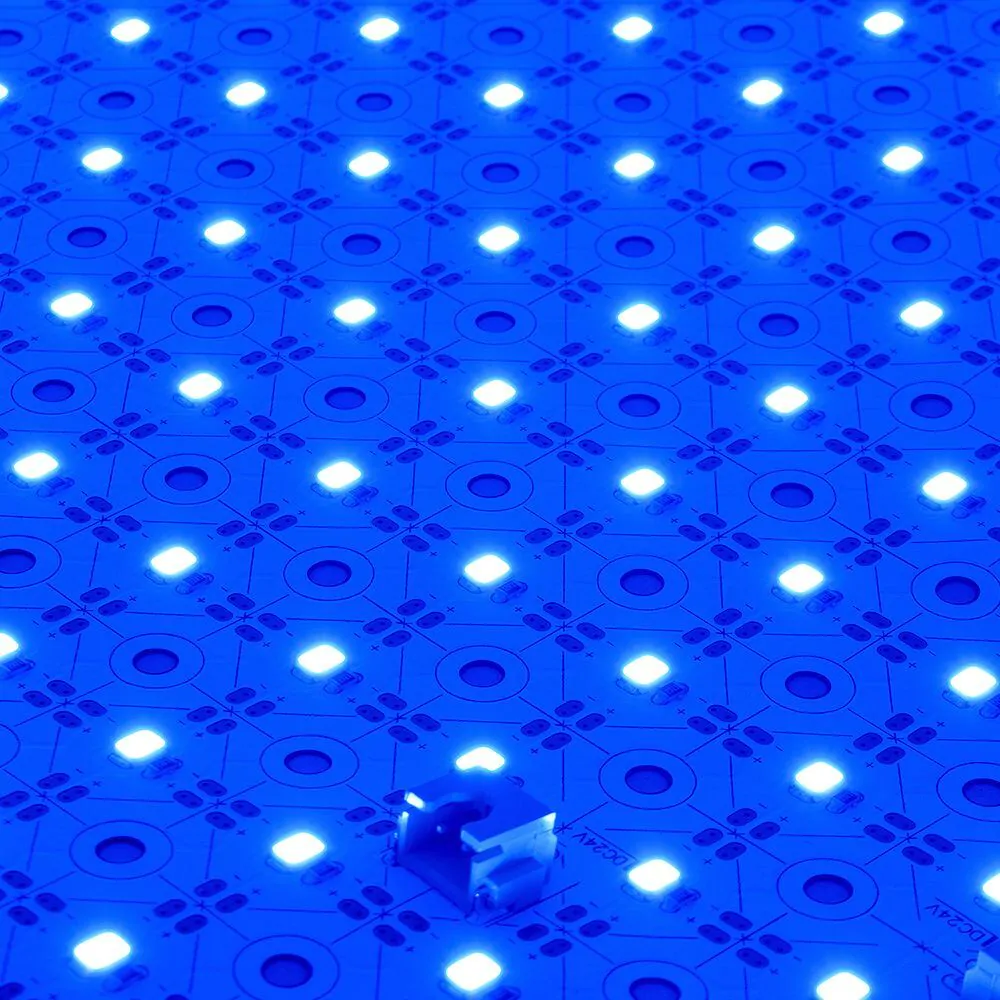

Bright Blue light 460-470nm
Light sheet size 480mm x 240mm
Linkable up to 3 x units together
Supplied in packs of 3 sheets
Powerful 300LSE 3M™ sticky backing to fix firmly in place

Technical Specification
Product Packed:Poly / Anti static Bag
Product Type:Light Panel
Colour:Blue
IP Rating:IP20 Non-Waterproof
Guarantee Period:3 Years
Wattage:32W
Current:1.31A
Input Voltage:24V DC
Output Voltage:24V DC
PCB Weight:2oz
PCB Colour:White PCB

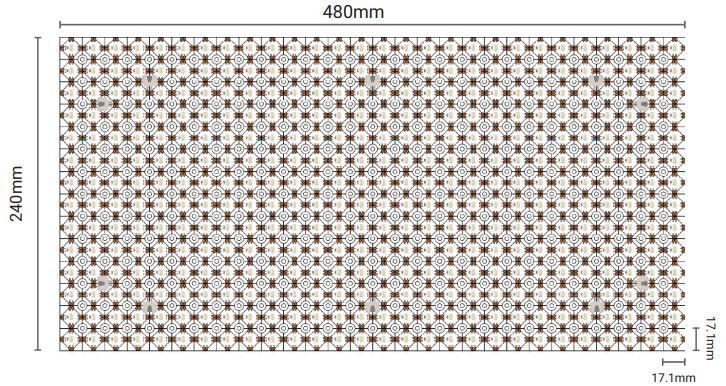

Size:480mm x 240mm
Beam Angle:120 degree
Appx Lumens:1,053 Lumens Per Sheet
Light Intensity Per LED:750 - 900mcd
Lumens Per LED:2.5 - 3lm
Dimmable:Yes
LED Quantity:392 x Blue SMD2835 LED's
LED Type:Led chip 2835
Average LED life Hrs:30,000
Peelable Back:300LSE 3M­™

Product Dimensions
