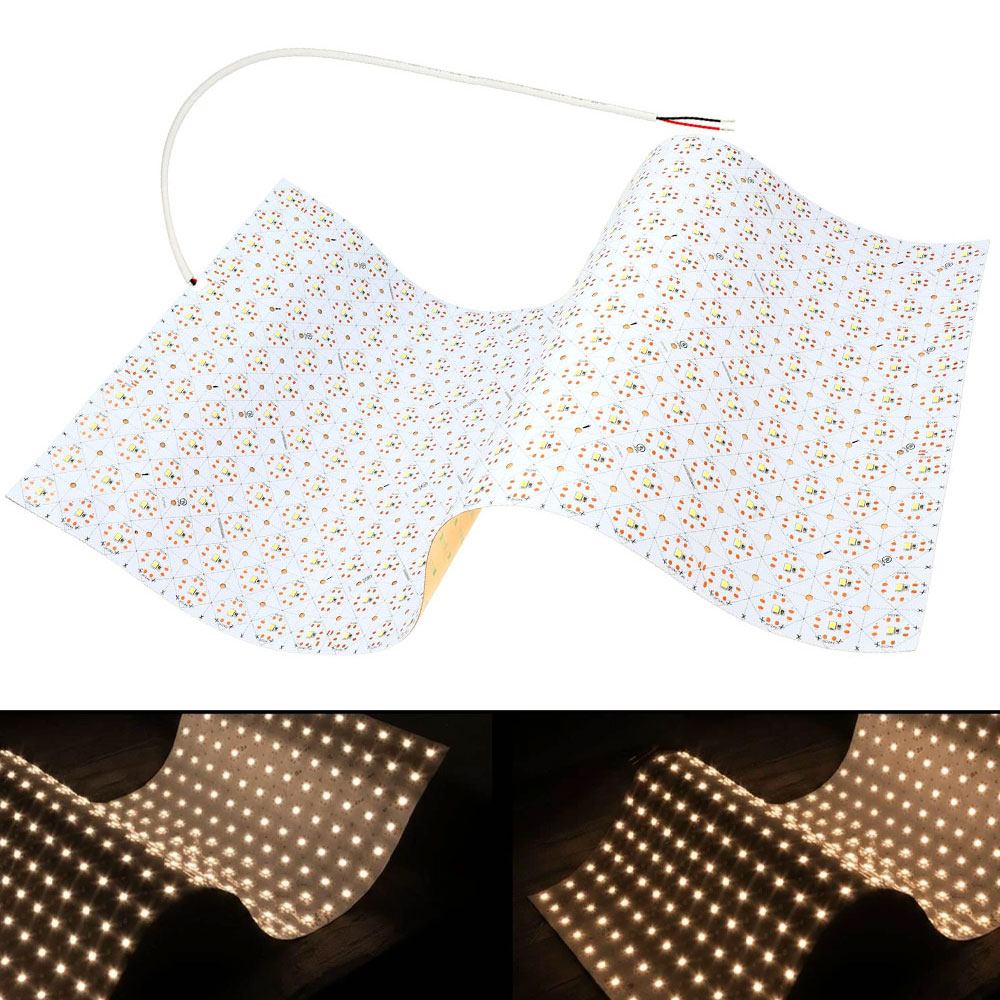

Trim the LED light sheet to fit unique shapes or wrap corners. This flexible sheet contains 24 columns x 12 rows that can be segmented in any shape by cutting along the horizontal, vertical, or diagonal lines. The 1-inch segments ensure even light distribution, ideal for signs or backlighting. Apply this dimmable sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
Segment size: 1 in. (25.4 mm) x 1 in. (25.4 mm)
Max run with Class 2 wiring: 3 full sheets
Enclosed fixture rated 30 mm
IP20 rated for dry conditions
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature：-20 to 60 °C (-4 to 140 °F)
Certifications/Compliance：CE, UL Listed
CRI：80+
Current Draw：1.3 A
Dimensions：24in x 12in
Dimmable：Yes
Dimmer Type：PWM
Efficacy：102 lm/W
Enclosed Fixture Rated：Yes
Finish：White
Input Connection Type：Pigtail
IP Rating：IP20
LED Beam Angle：120°
LED Chip Type：2835 SMD
LEDs per Segment：1
LED Lifetime：50000 Hours
Max Run (Class 2)：3 Sheets
Operating Voltage：24 VDC
Product Dimensions：24.0″ x 12.0″ x 0.08″
Segment Size：1 in. x 1 in. (25.4 mm x 25.4 mm)
Wattage：30 Watts
Wire Length：19 in.

Dimensional Drawings
