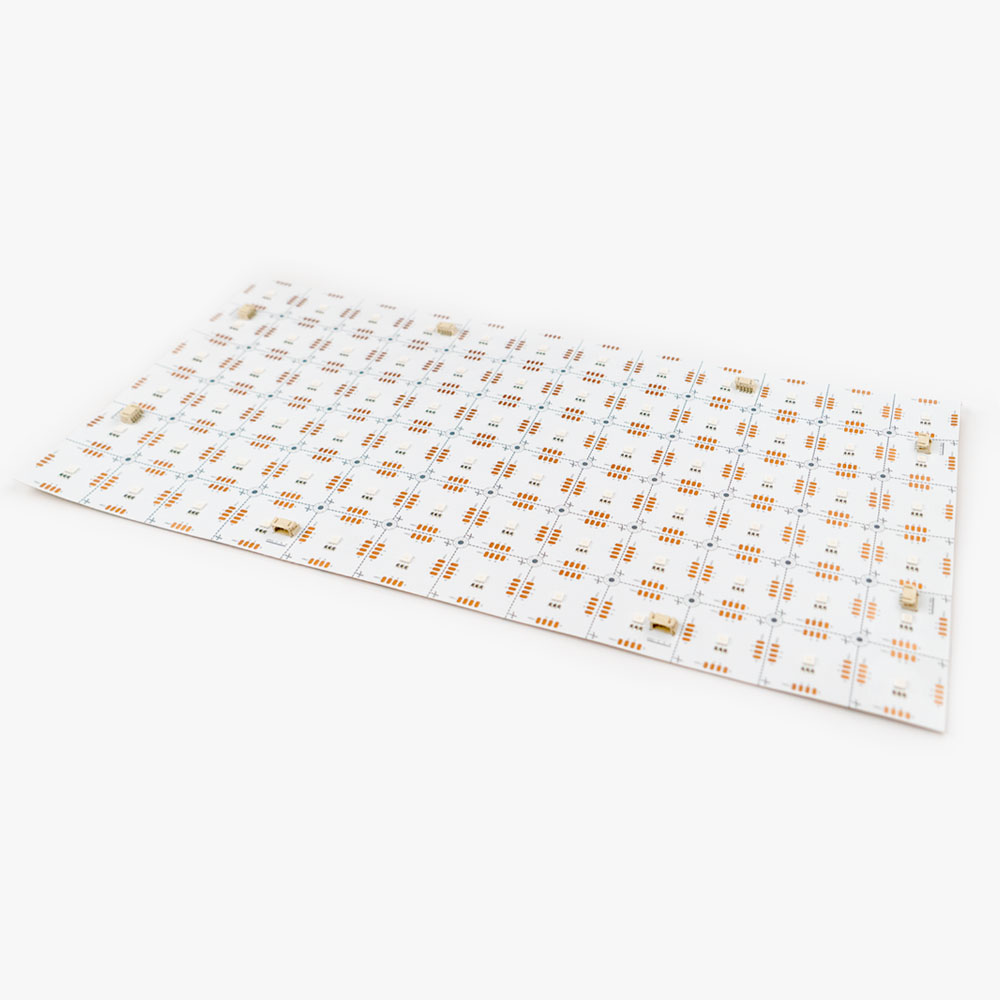

Spectra™ RGB Light Sheets allow you to bring over 16 million color options to any backlighting or signage project. Using app or remote-based lighting controls, set these sheets to your favorite color today, change it tomorrow, or program automations for continuous cycling through the rainbow.

Customizable to nearly any shape down to a single diode/square, you and your crew are free to make adjustments onsite, even at the last minute. And with the ability to daisy chain 5 sheets in series using Plug and Play connections, your installers and bottom line will be thanking you.

Features:
RGB Color Changing – blend red, blue, and green to achieve up to 16+ million unique color options. The lighting controls used (app-based, hand-held, wall-mounted, etc.) will ultimately impact how many colors can be achieved.
Maximum Customization – Cuttable to nearly any shape. Cuttable down to 1 diode (≈1.56in x 1.56in squares). Dual direction cut lines. Allows for last-minute adjustments, design changes, and customization on-site
Deliver More with Less – Wire/link up to 5 sheets in series, reducing installation time and costs with fewer runs
Maximum Flexibility – Thin, flexible backing makes it easy to arch around contours and curved surfaces or bend over corners
Plug and Play – Link multiple sheets with integrated connection blocks and included XH connectors, or use traditional soldering methods
Each light sheet ships with (2) 8” pigtail and (2) 2.75” jumper XH connectors
Backed with 3M adhesive tape for easy mounting and installation
Extremely long life: up to 50,000 hours
Commercial-Grade quality

Specifications
Adhesive Backing:    3M Adhesive Tape (300LSE)
Beam Angle：    120°
Cut Length：    1-9/16" x 1-9/16" (40mm x 40mm)
Dimensions：    18-7/8" Long (480mm) x 9-7/16" Wide (240mm) x 1/4" Tall (6.5mm)
Estimated Lifespan：    Up to 50,000 hours
Weight：    0.32 lb (0.14 kg)
Input Voltage：    24VDC
LED Quantity：    72 (12 rows, 6 per row)
LED Type：    SMD 5050 LED Chip
Max Power Consumption：    45W
Max Run Length：    5 Sheets (in series)
CRI：    n/a
Max Lumens：    2000 lumens
Overall Coverage：    1.25 ft²
IP Rating：    IP20
Max Operating Temperature：    -25°C to 60°C (-13°F to 140°F)
Max Storage Temperatures：    -40°C to 80°C (-40°F to 176°F)
Suitable Uses：    Dry Locations Only
Dimmable：    Yes
Standards / Certifications：    UL/cUL Listed, RoHS, CE
Warranty：    5 Years

Applications
Backlighting for signage and/or large format graphics
Backlighting for kitchen backsplashes and translucent stone countertops
Backlighting for accent walls, facades, and other architectural features
Commercial/Retail Lighting
Showroom/Tradeshow Displays
Public Art
Hospitality/Commercial Lobbies
Illuminating Stained Glass (museums, art galleries, churches, etc.)
DIY projects
