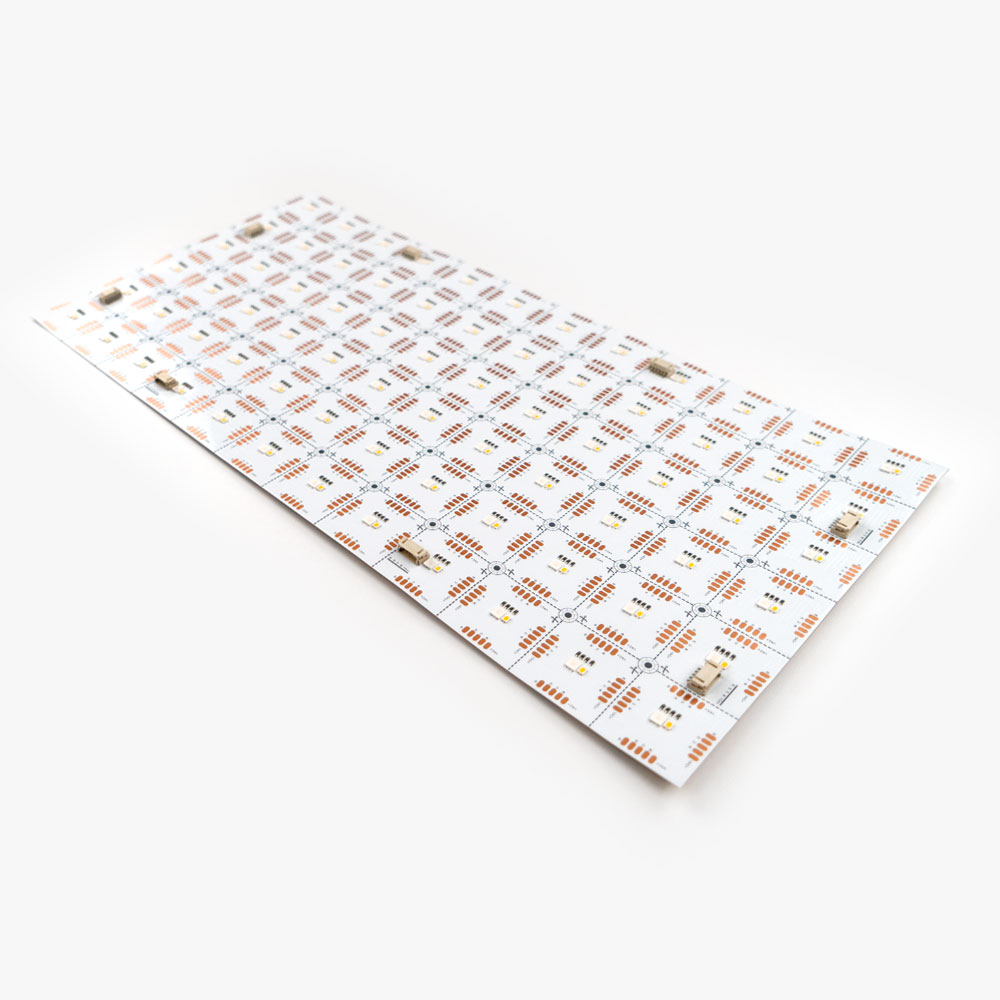

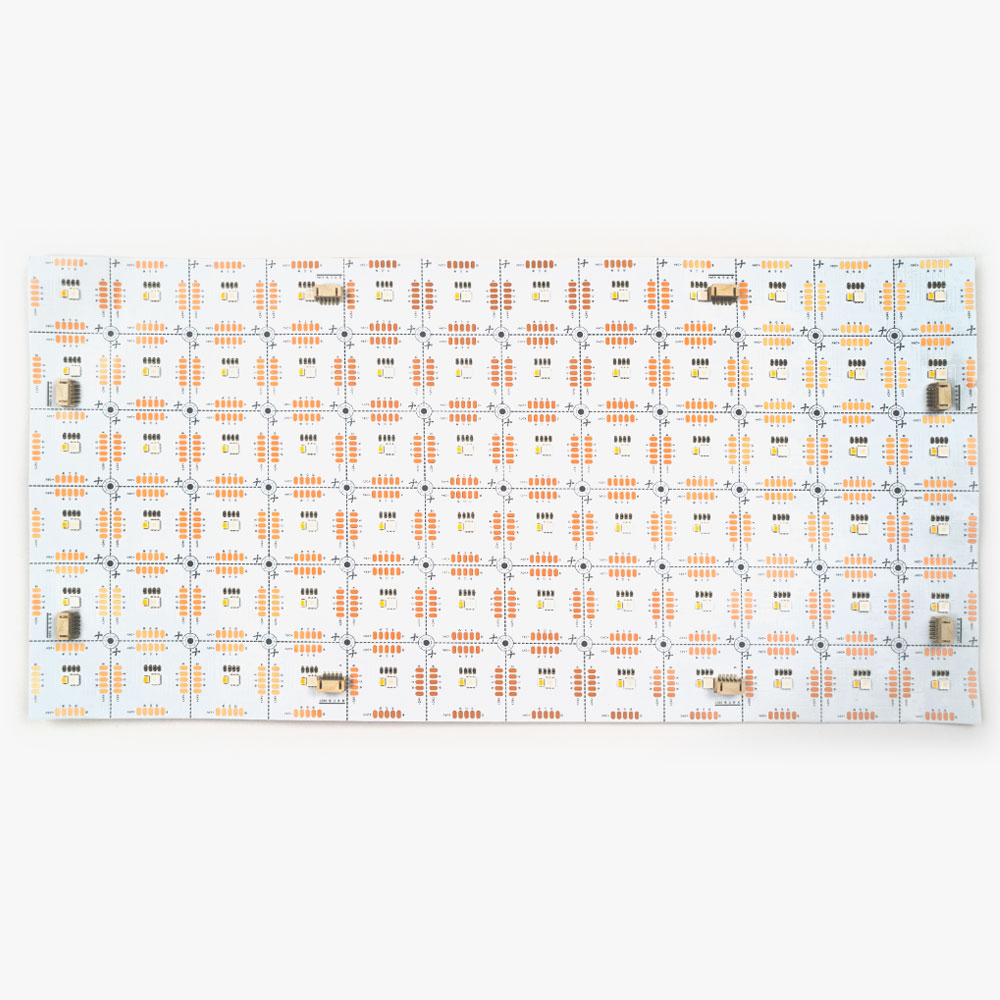

Spectra™ PLUS Light Sheets combine the unique features and benefits of RGB and static white light sheets into one high-performing product.

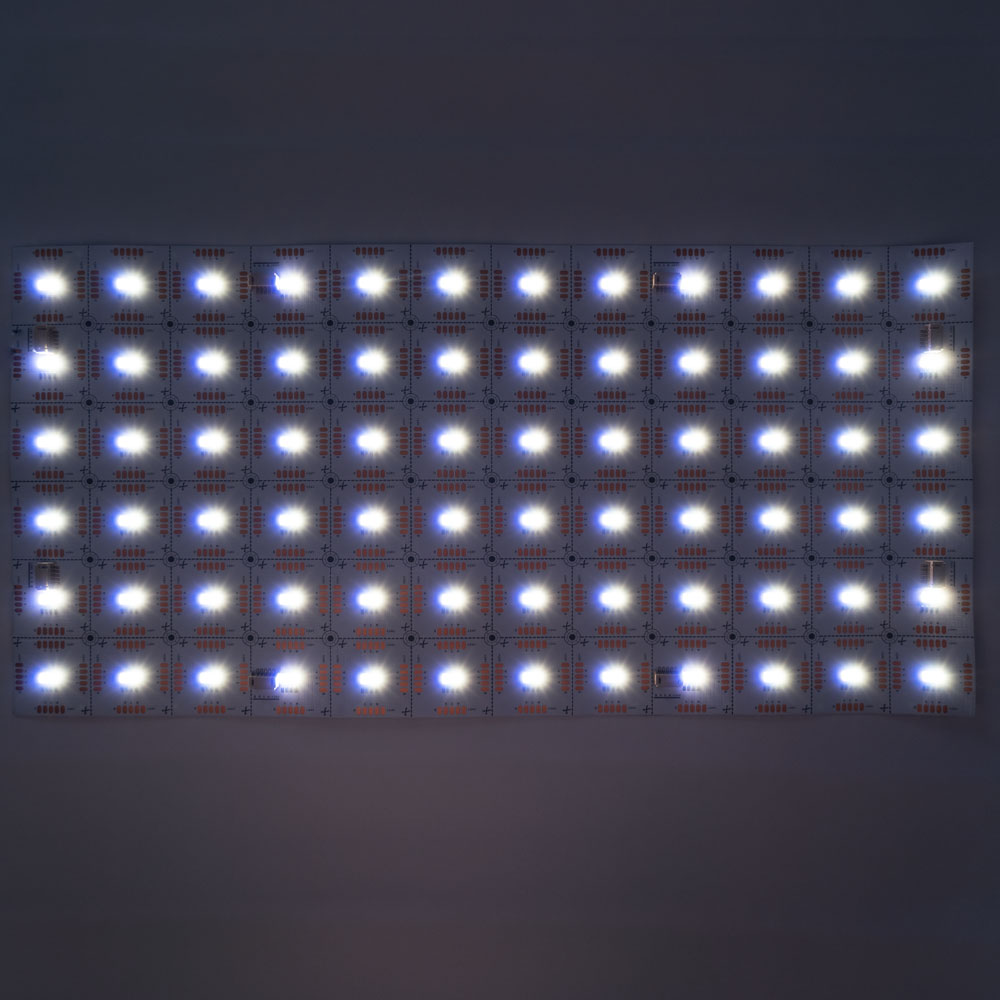

Offering a choice of 4 kelvin color temperatures for your everyday lighting needs, plus RGB functionality for the times when you want to add energy and excitement to your spaces.

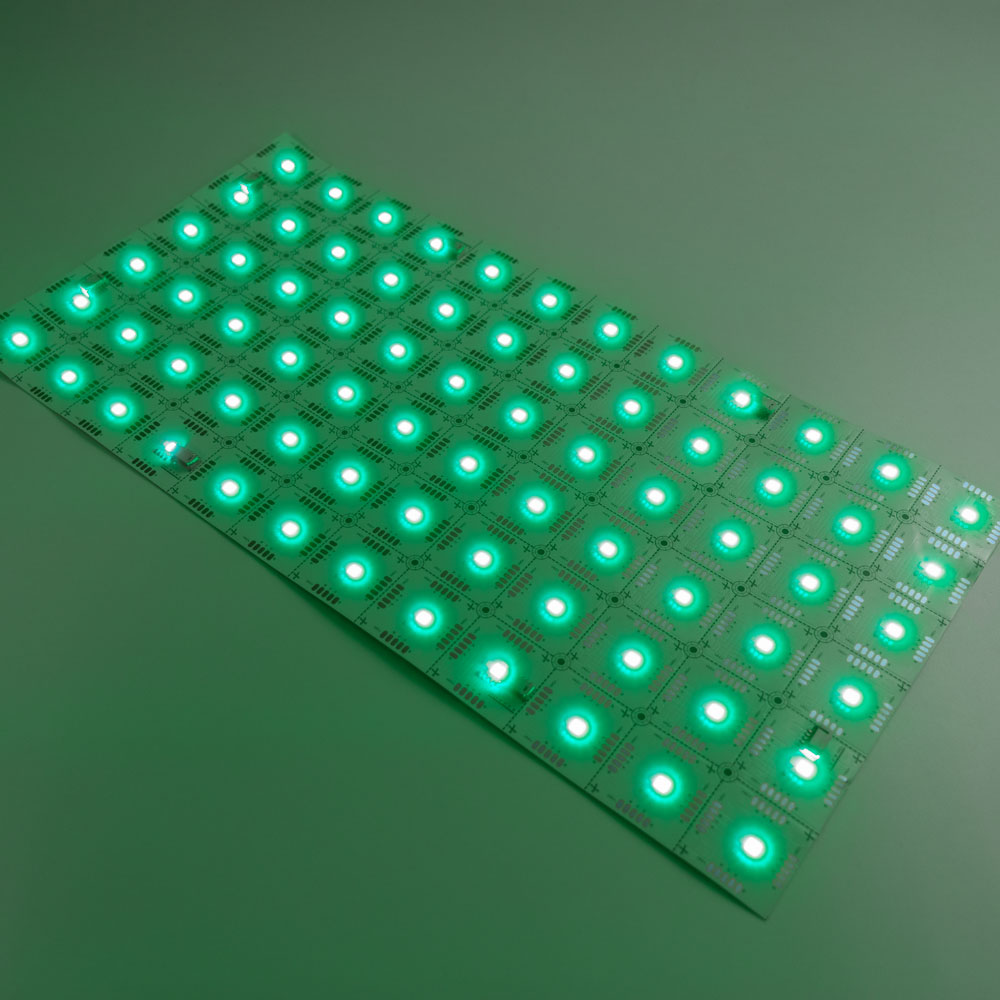

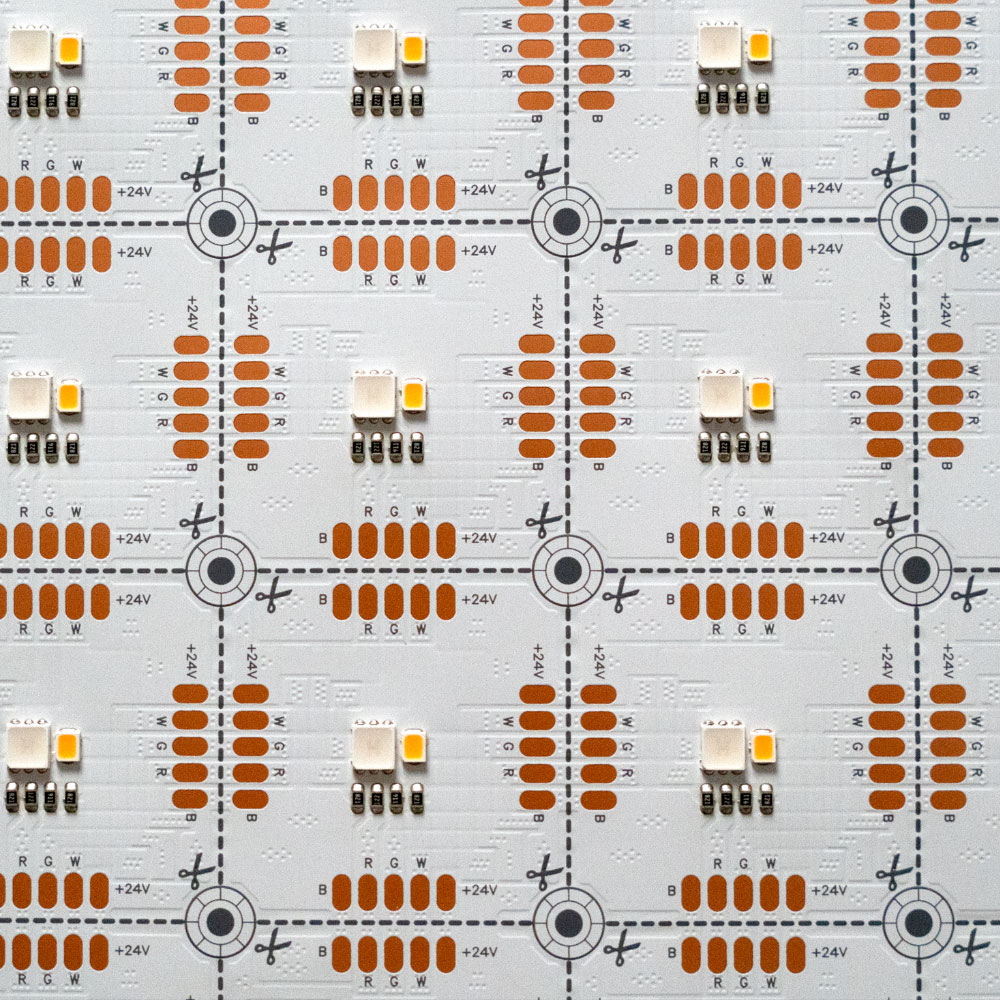

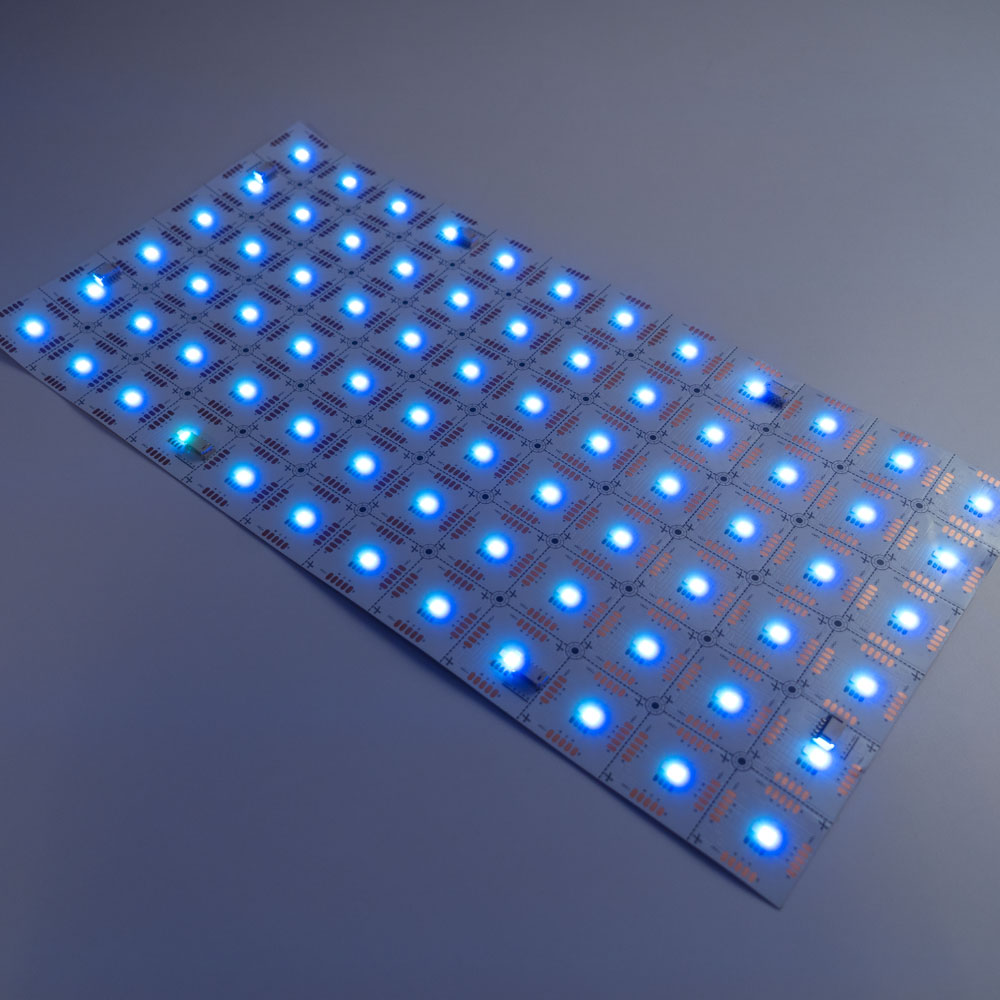

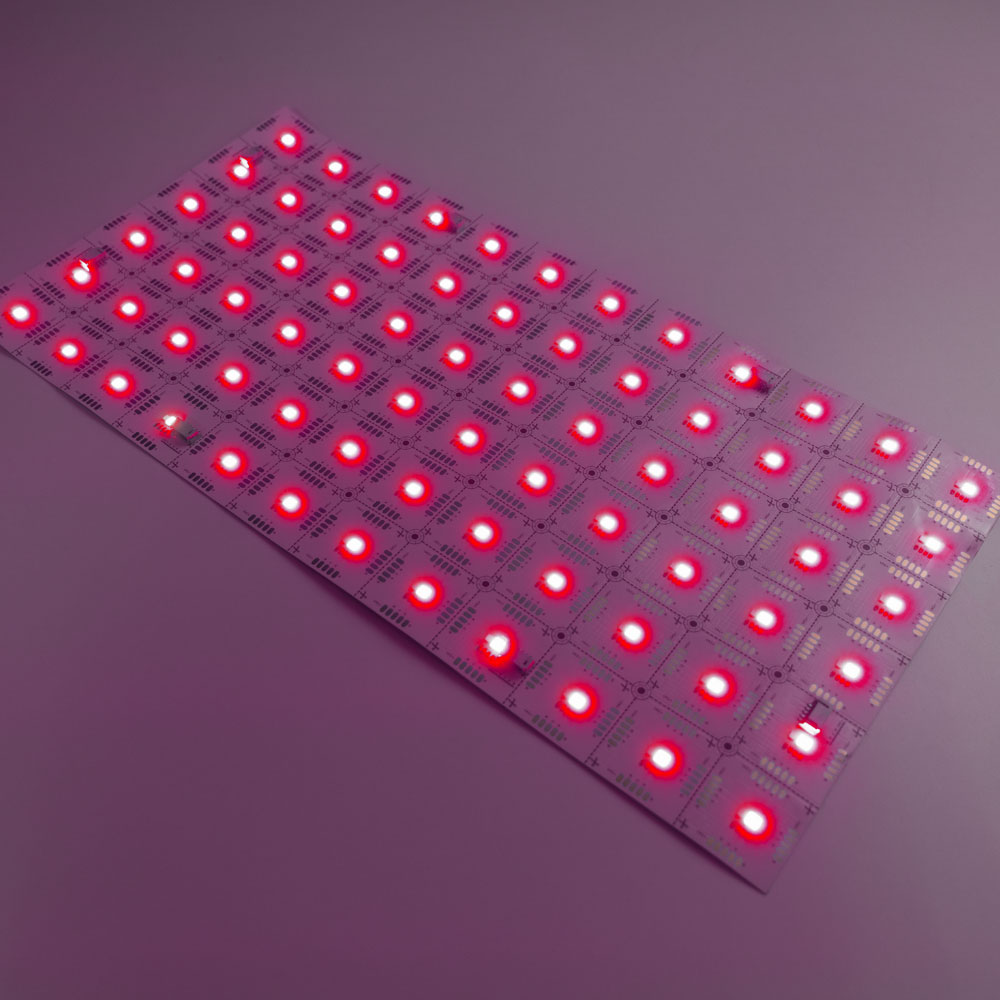

Using app or remote-based lighting controls, you can easily manage both the white and RGB options, allowing you to bring over 16 million colors to any backlighting or signage project.Dual cut lines, Plug & Play connectors, and 3M adhesive backing make installation fast and easy. These features let you customize your light sheets into nearly any shape, eliminating the need for soldering.

Specifications
Adhesive Backing：    3M Adhesive Tape (300LSE)
Beam Angle：    120°
Cut Length：    1-9/16" x 1-9/16" (40mm x 40mm)
Dimensions：    18-7/8" Long (480mm) x 9-7/16" Wide (240mm) x 1/4" Tall (6.5mm)
Estimated Lifespan：    Up to 50,000 hours
Weight：    0.31 lb (0.14 kg)
Input Voltage：    24VDC
LED Quantity：    144 (12 rows, 6 per row, 1 RGB + 1 White per square)
LED Type：    SMD 5050 (RGB) + SMD 2835 (White) LED Chips
Max Power Consumption：    60W
Max Run Length：    3 Sheets (in series) **According to the National Electrical Code (NEC), wiring exceeding 96 watts is no longer considered Class 2 wiring.
CRI：    95+ (white LED only)
Max Lumens：    3200 lumens
Overall Coverage：    1.25 square feet
IP Rating：    IP20
Max Operating Temperature：    -25°C to 60°C (-13°F to 140°F)
Max Storage Temperatures：    -40°C to 80°C (-40°F to 176°F)
Suitable Uses：    Dry Locations Only
Dimmable：    Yes
Standards / Certifications：    UL/cUL Listed, RoHS
Warranty：    5 Years

Applications
Backlighting for signage and/or large format graphics
Backlighting for kitchen backsplashes and translucent stone countertops
Backlighting for accent walls, facades, and other architectural features
Commercial/Retail Lighting
Showroom/Tradeshow Displays
Public Art
Hospitality/Commercial Lobbies
Illuminating Stained Glass (museums, art galleries, churches, etc.)
DIY projects
